Adjusting the steering console

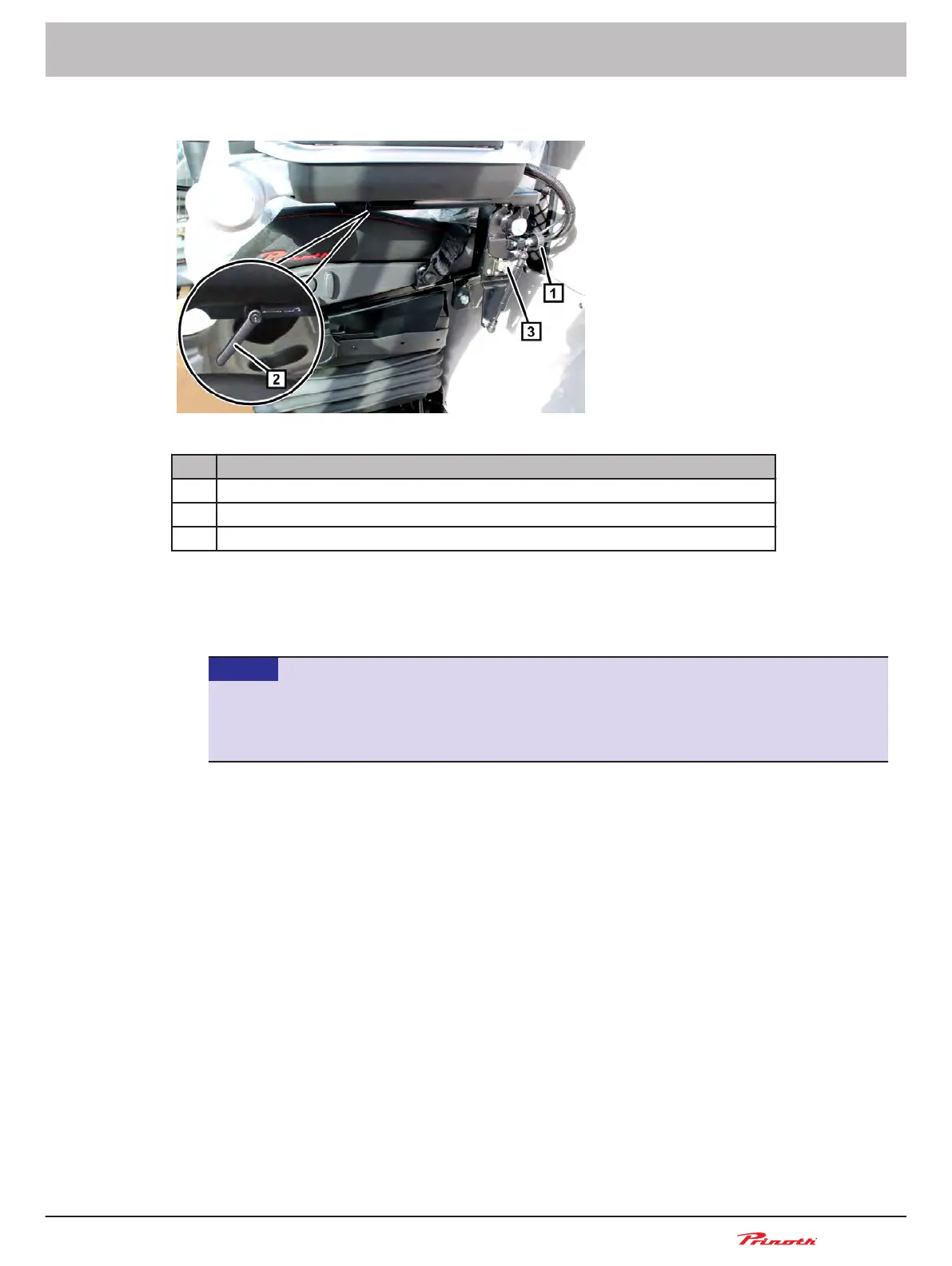

Figure 13: Steering console bracket
Pos. Name
1 Hand wheel for adjusting the inclination
2 Lever for adjusting fore/aft position
3 Limit switch that signals that the steering console is located in bottom position
The steering console can be adjusted to suit the individual driver both in terms of angle and depth.
The console can be folded up to make it easier to get in and out of the cab.
Adjust the inclination
■
NOTICE
Hand wheel
►
The hand wheel must only be adjusted far enough that the limit switch still makes contact.
This is required for the snow groomer standby.
The inclination is adjusted by turning the hand wheel (1) at the back of the bracket.
Adjust the depth
1. Release the lever (2) located laterally underneath the steering console.
2. Push the steering console forward or backward until the desired position is reached.
3. Tighten the lever (2).
Swivel the steering console
The steering console can be swivelled to the left and right.
