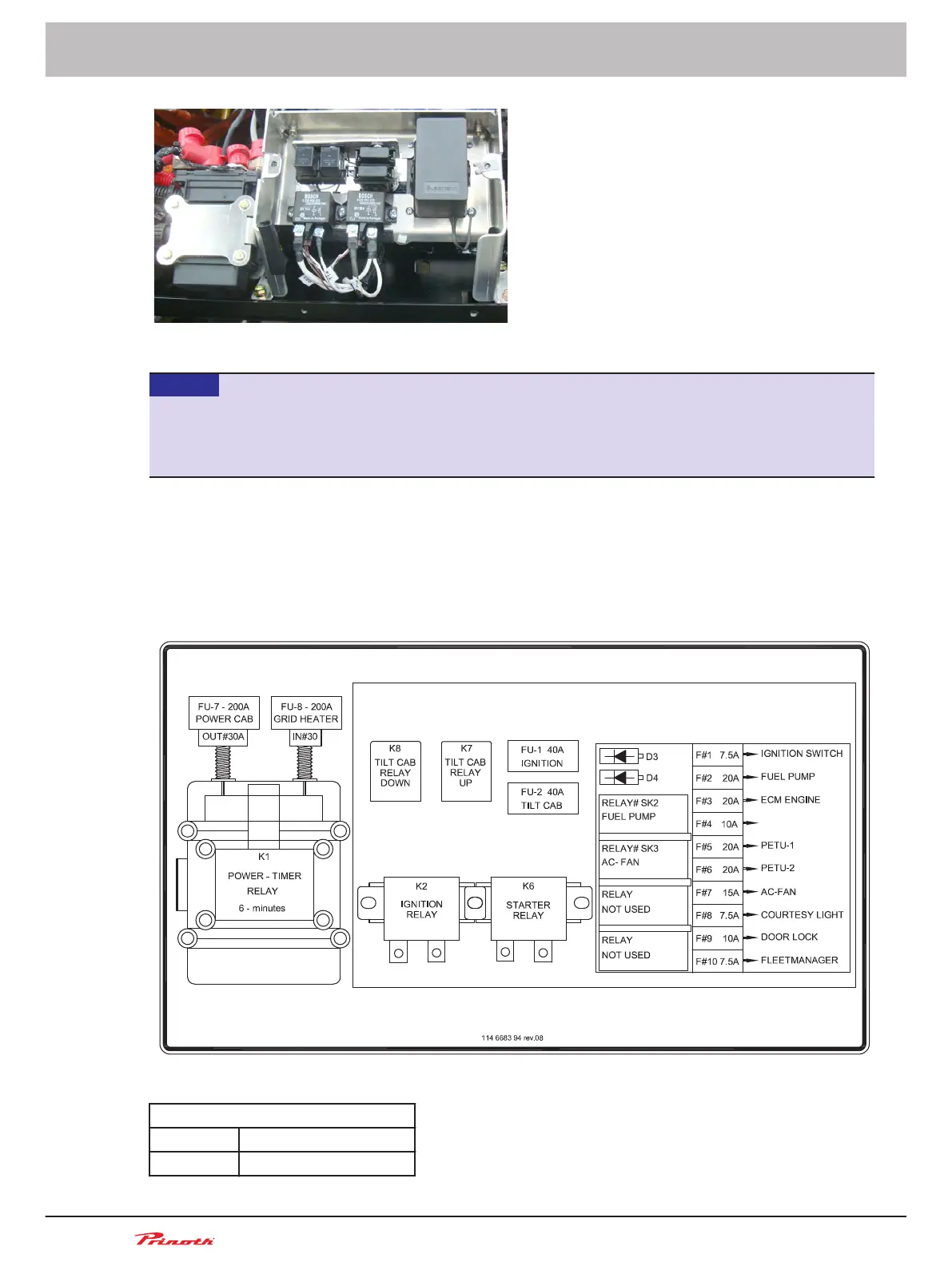

Figure 24: Interior view of the electrical box
NOTICE
Fire hazard
►
Replacing a fuse with one of higher rating could cause overheating or even fire. Always replace
a fuse with one of the same rating.
Next is a picture of the schematic on the cover of the electrical box with a list of the relays and fuses.
Figure 25: Schematic on the inside of the electrical box cover
POWER - TIMER RELAY 6 minutes
IN Terminal # 30
FU-8 200 A grid heater
Operating and Maintenance Manual
Snow groomer BISON
70 (255)
5 - Vehicle
BISON 908930245 - 30367
