Printing Innovation iCUBE 1 User Manual

-23-

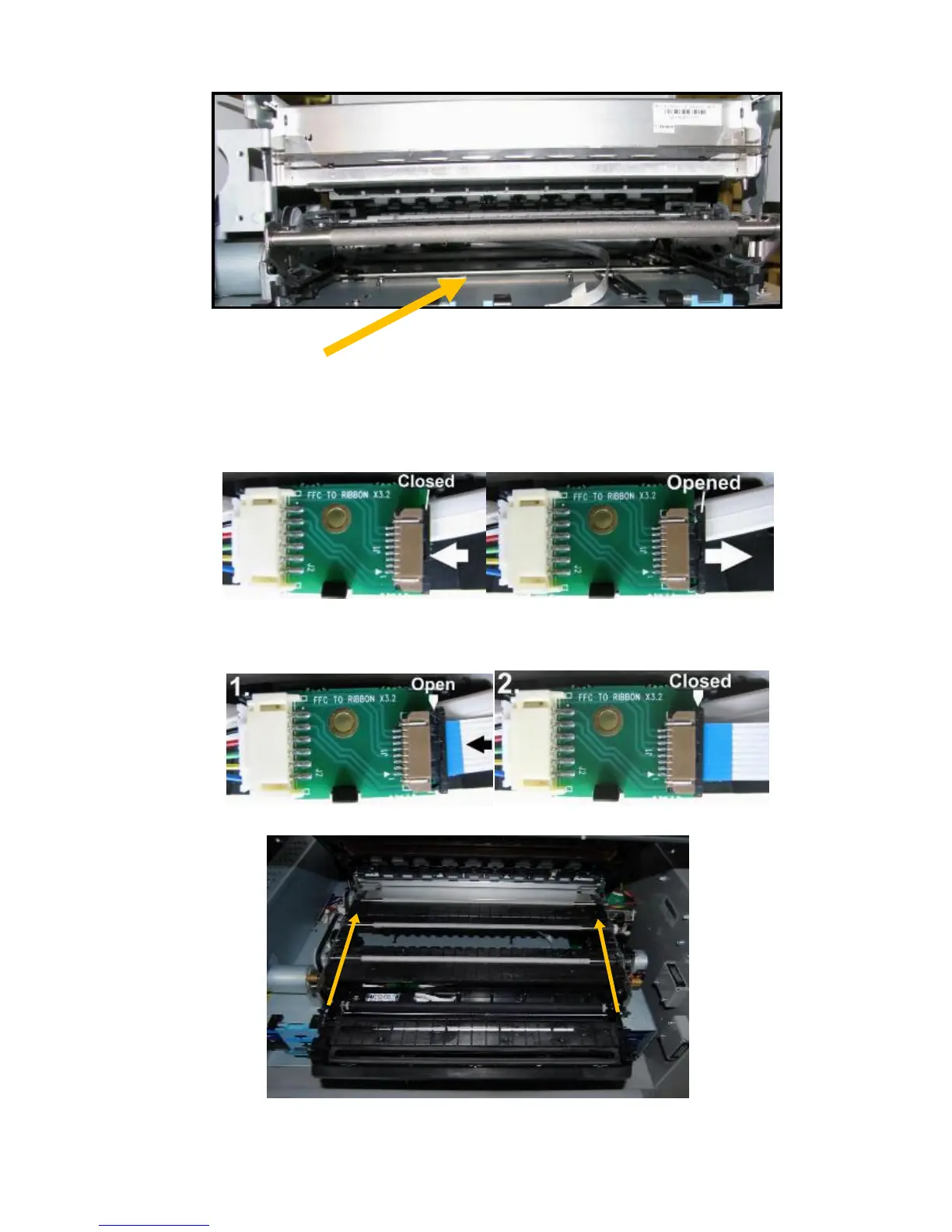

The Service Station fits in the port immediately above the Ink Tank Station.
1. Plug in the white flat flex cable to the motor PCA on the maintenance module.
Plug the ribbon connector (blue side up) into the space under the latch than close the latch:
2. Slide in the connected Service Station.
3. Slowly turn the gear on the print engine until the maintenance module engages.
Slide the Latch open on the Maintenance Station - circuit board
