-24-

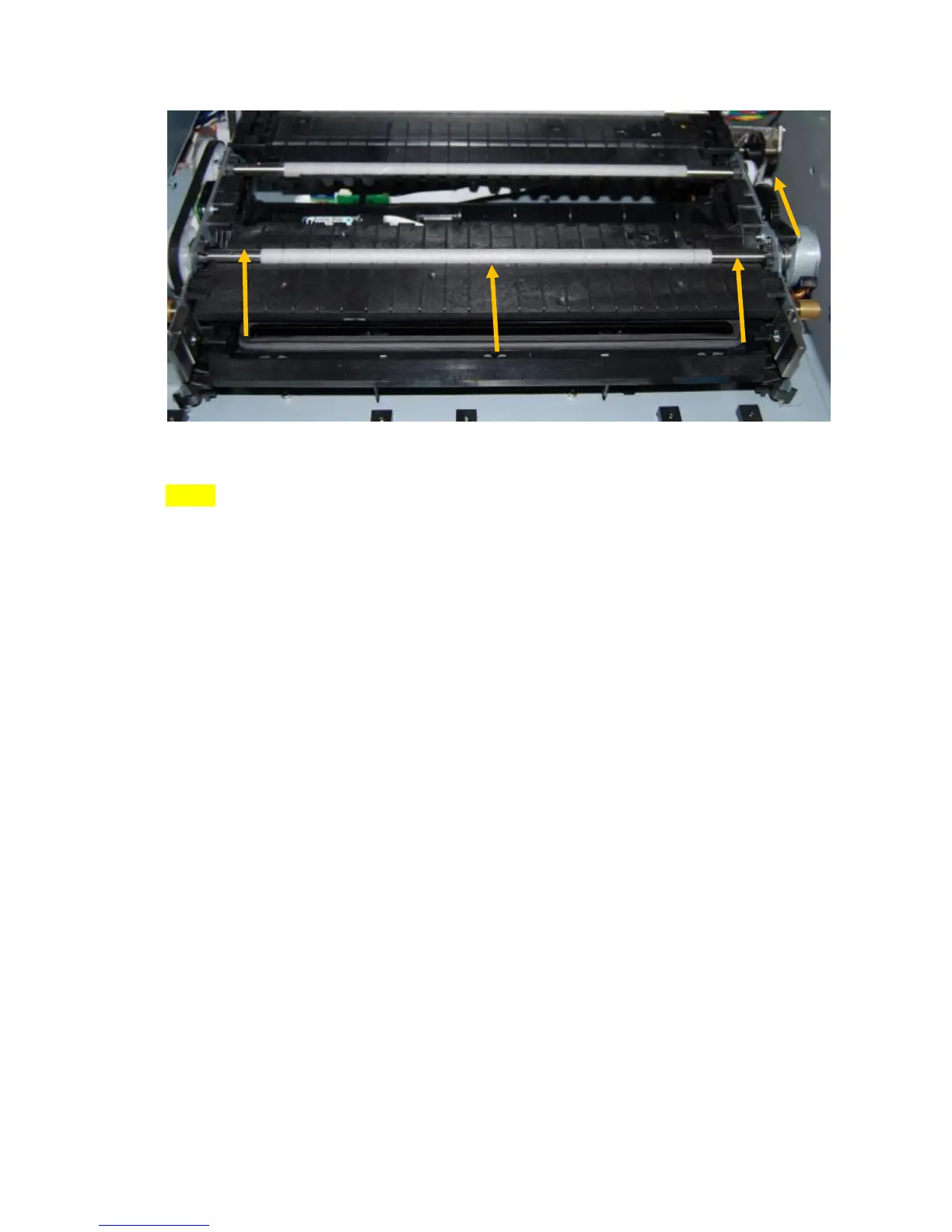

4. Close the clamshell gently to avoid causing vibration on the printhead
NOTE: The MM must be perfectly aligned with bar to prevent misalignment!
3.5.2 Installing ink cartridges
ICUBE series printers use a single printhead cartridge and five ink tanks (two black,
one cyan, one magenta, and one yellow). During installing the ink cartridges the printer
should be turned off.
• Remove the ink tanks from the shipping box.
• Open the ink tank latches in the front of the printer by pushing the bottom of the
latch upward. The latch has a marker for signalling the place of the C, M, Y and K
tanks. (The reason why K is used for black: in RBG color mode B is reserved for
blue)
• Locate the place where each tank should go than slowly but firmly push the tank
into the tank socket. The pressure in the ink tanks and the septums may prevent
the cartridge to fully engage for the first insertion.
