74
-

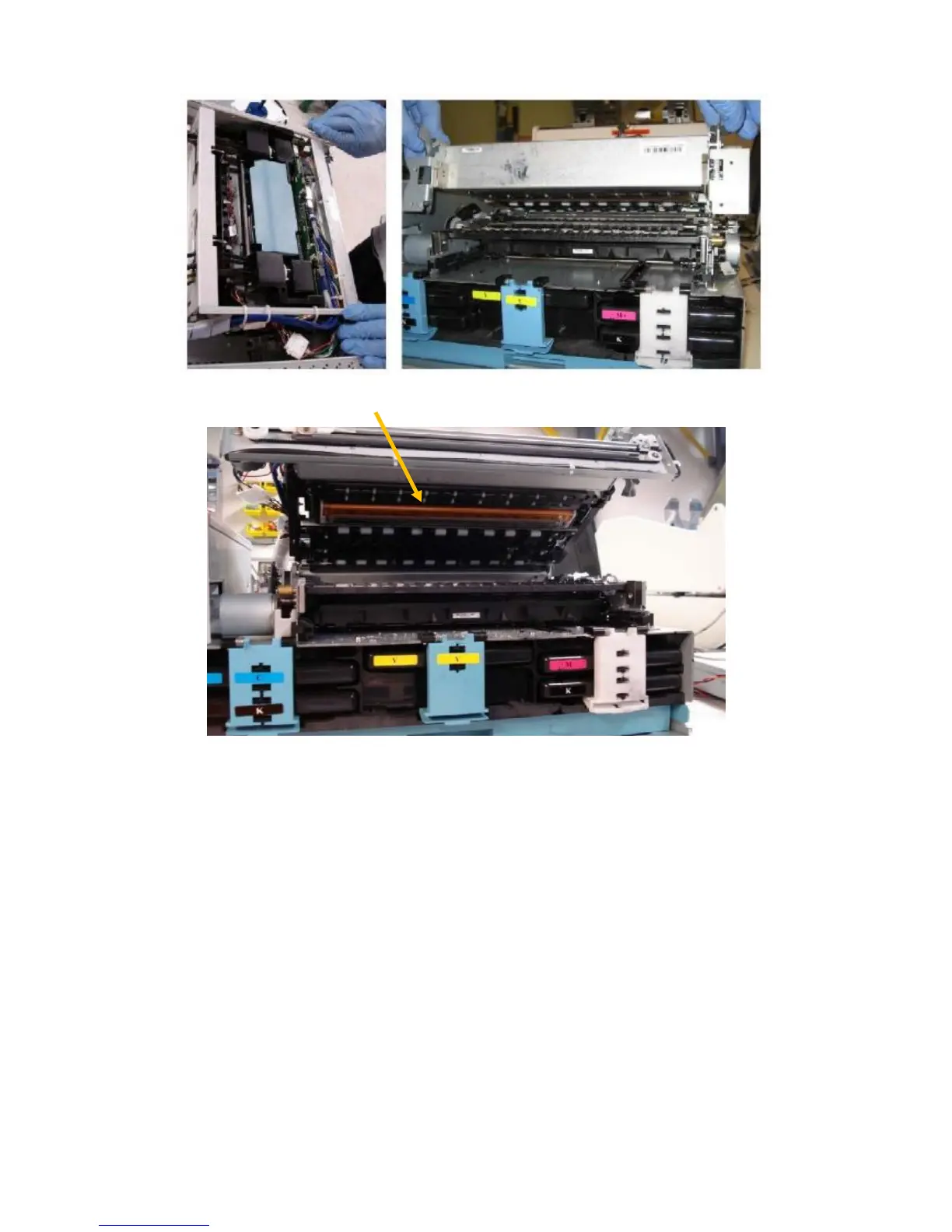

Picture of opene
d Clamshell
3.
Dampen a lint-free cloth with distilled water
4.
Gently wipe the print nozzle plate from one end to the other
2.
Locate the printhead nozzle strip.
Picture of Printhead N
ozzle
Plate
73
75
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
6
Introduction to Memjet Print Technology
6
2 Printer Parts and Their Functions
8
Printer
8
Print Engine
8
Printhead
8
Printhead Cartridge Dock
8
Print Mechanism
9
Cutter
9
Ink Cartridges
10
Ink Connection Ports
12
Ink Delivery System (IDS)
12
Bulkhead Assembly
12
Other IDS Components
13
Maintenance Module
14
Wiper Station
16
Printing Platen
16
Capping/Spitton Station
17
Printhead Servicing Events
17
Print Zone
17
Onboard Print Engine Controller (Omnipec) and Main Board
17
3 Installing the Printer
19
Choose a Location
19
Unpacking and Setup
19
Checking the Contents
19
Connecting the Icube
20
Setting up the Printer
22
Maintenance Module (MM)
22
Installing the Ink Cartridges
24
Installing the Printhead
25
Switch on the Printer
30
Media Handling
31
Load Media
31
Print Area
31
Connecting the Printer to a Computer
32
Direct Connection to a Personal Computer
32
Install Printer Driver
33
Driver Specifications
40
General Tab
40
Layout Tab
41
Media Tab
42
Import/Export
43
Label Printing, Generating Print Jobs
44
Printing Labels from Softwares
44
Printing Labels from Print Jobs
44
Printer Buttons
45
4 Toolbox
47
User Interface
48
Diagnostics
49
Ink Usage
50
Network Configuration
51
Service Menus
52
5 Maintenance Guide
53
Maintenance Overview
53
Standard Maintenance
53
Daily Maintenance Tasks
55
Aerosol and Debris Removal
55
Bi-Weekly Maintenance Tasks Aerosol and Debris Removal Paper Path Optical Sensor Cleaning Wiper Inspection
57
Monthly Maintenance Tasks
60
Aerosol and Debris Removal Paper Path Optical Sensor Cleaning
60
Ink Tubing Inspection
60
Lift Motor Gear Inspection
60
Waste Ink Absorber Inspection
60
Wiper Inspection
60
Paper Path Grit Roller Inspection
65
Annual Maintenance Tasks
65
Aerosol and Debris Removal
65
Paper Path Optical Sensor Cleaning
65
Cutter Ispection
66
Ink Tank Latch/Ink Bay Inspection
66
As Needed Maintenance Tasks
73
Printhead Cartridge Cleaning (Manual Wipe While Installed)
73
Printhead Cartridge Cleaning (Remove Cartridge)
75
Waste Ink Absorber Replacement
83
6 Troubleshooting
85
Maintenance Module Troubleshooting
85
Printhead Troubleshooting
86
Icube Troubleshouting Guide
87
General
87
Checklist before Doing any Support
87
Crit 63 03-Phead Offline Cancelpage
90
Cartridge_Missing
90
Fatal 7102 Offline Cancel Page
91
Maintenance_Busy
93
Paperpath_Feed_Timeout
94
Print Quality Issues
95
Color Mixing (CM)
95
Streaking (SR)
105
Dot Misplacement (DP)
111
Banding (BD)
114
Other General Print Quality Errors (GE)
120
Paper Handling (PA)
129
Inkdelivery System (ID)
134
Paper Cutting
136
Firmware Error Message (ER)
137
Maintenance Module (MM)
139
7 Printer Specifications
140
