Printronix M4L - Loading Media in Peel-Off Mode; Peel-Off Loading Steps



17

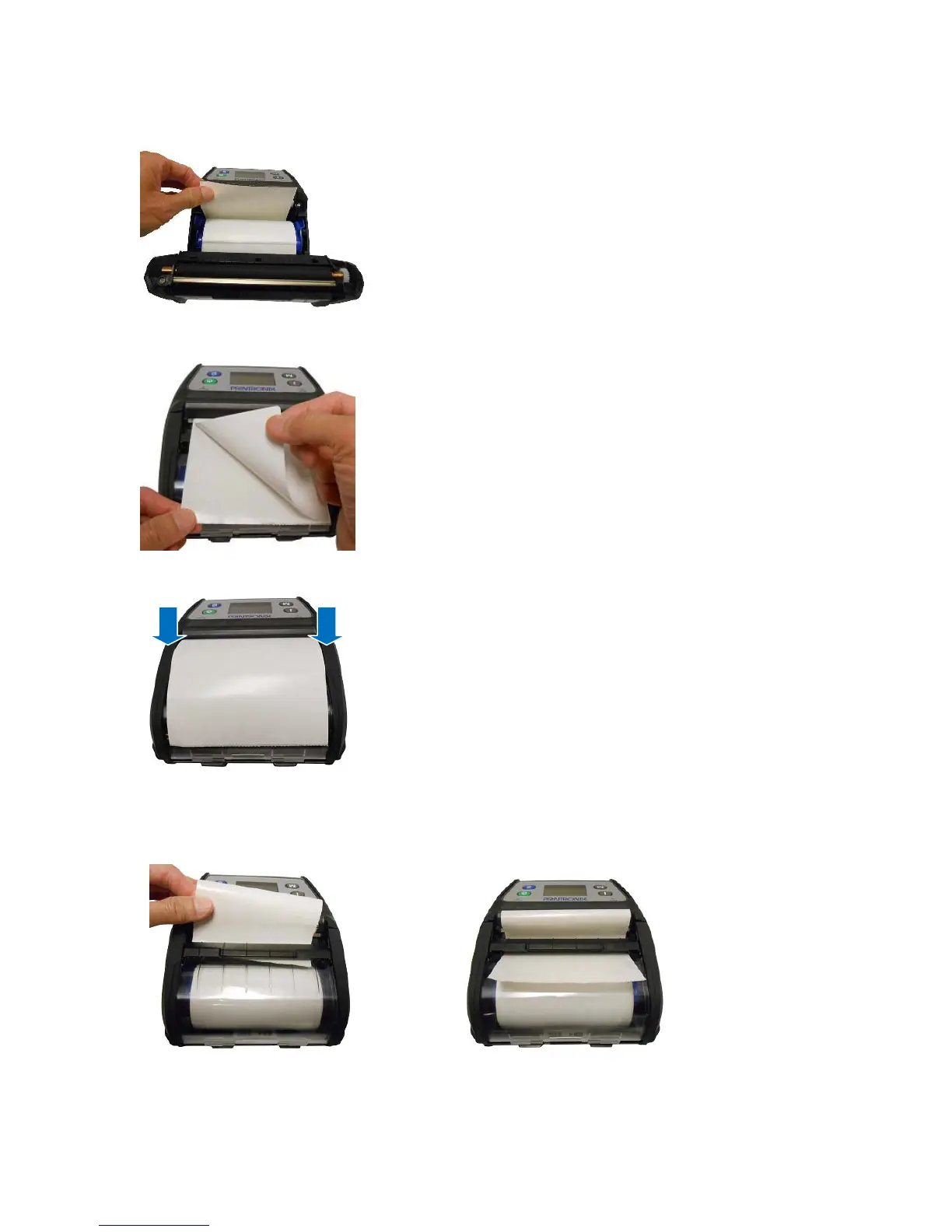

Loading Media in Peel-Off Mode
Load Media as defined in Loading the Media section on previous page
Remove 1 ~ 2 die cut labels from the liner
Press down on both sides of the media cover to ensure it is closed correctly.
Route the liner under the label peel cover as shown
