Loading Ribbon
23

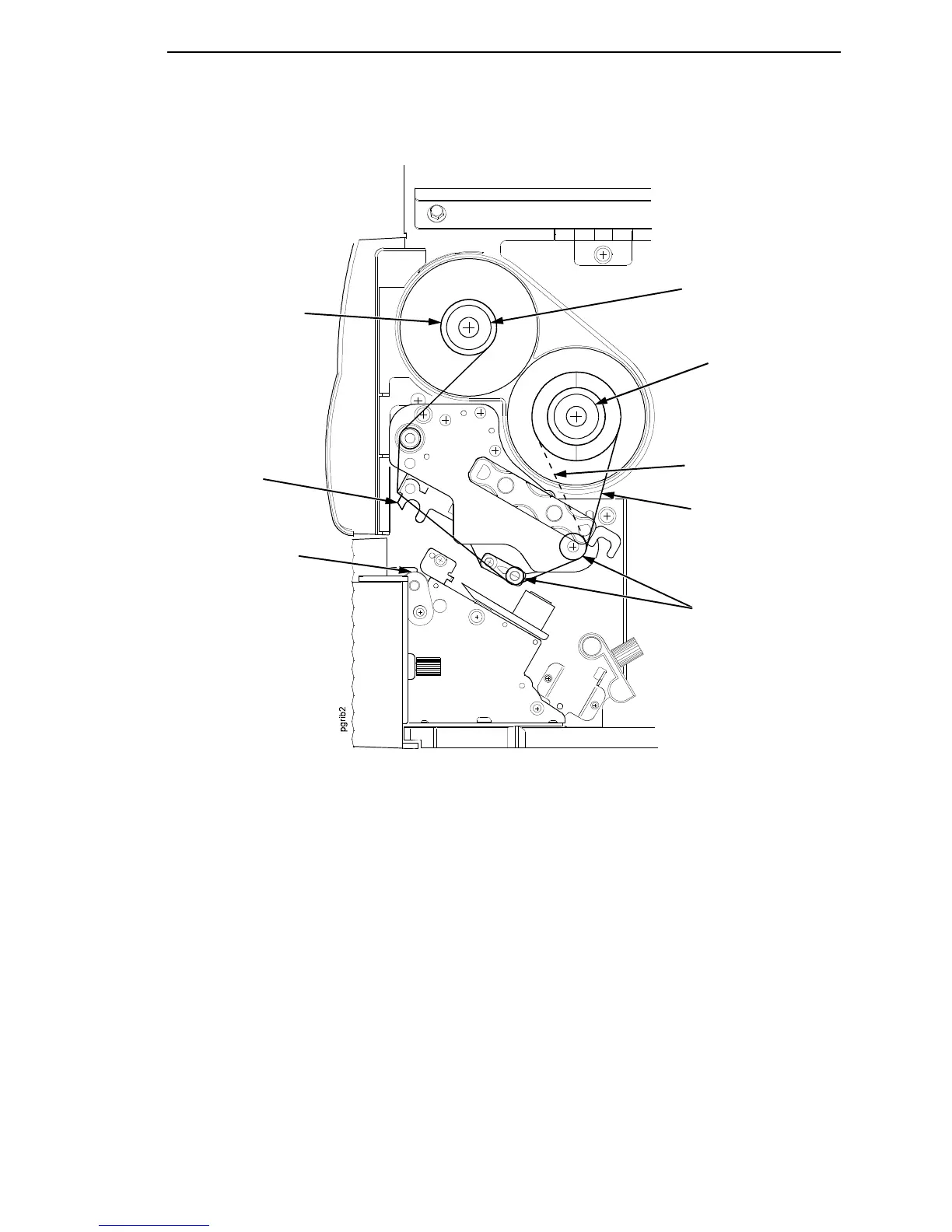

5. Thread the end of the ribbon under the ribbon guide rollers, between the
platen (rubber drive roller) and the printhead, and between the ribbon
take-up and supply spindles.
NOTE: Make sure to thread the ribbon behind the ribbon take-up spindle.
NOTE: The alternate ribbon path is for inside ink ribbon.
Printhead
Ribbon Guide
Roller (2)
Ribbon
Ribbon
Supply Spindle
Ribbon
Take-Up Spindle
Ribbon Take-Up
Core
Alternate Ribbon
Path
Platen (not shown)
To Next Page
