Prinzen PSPC30 - Hatch Tray Denester

MACHINE DESCRIPTION
UM-PSPC-06-E/10-2012 USER MANAUL PSPC Page 33 of 99

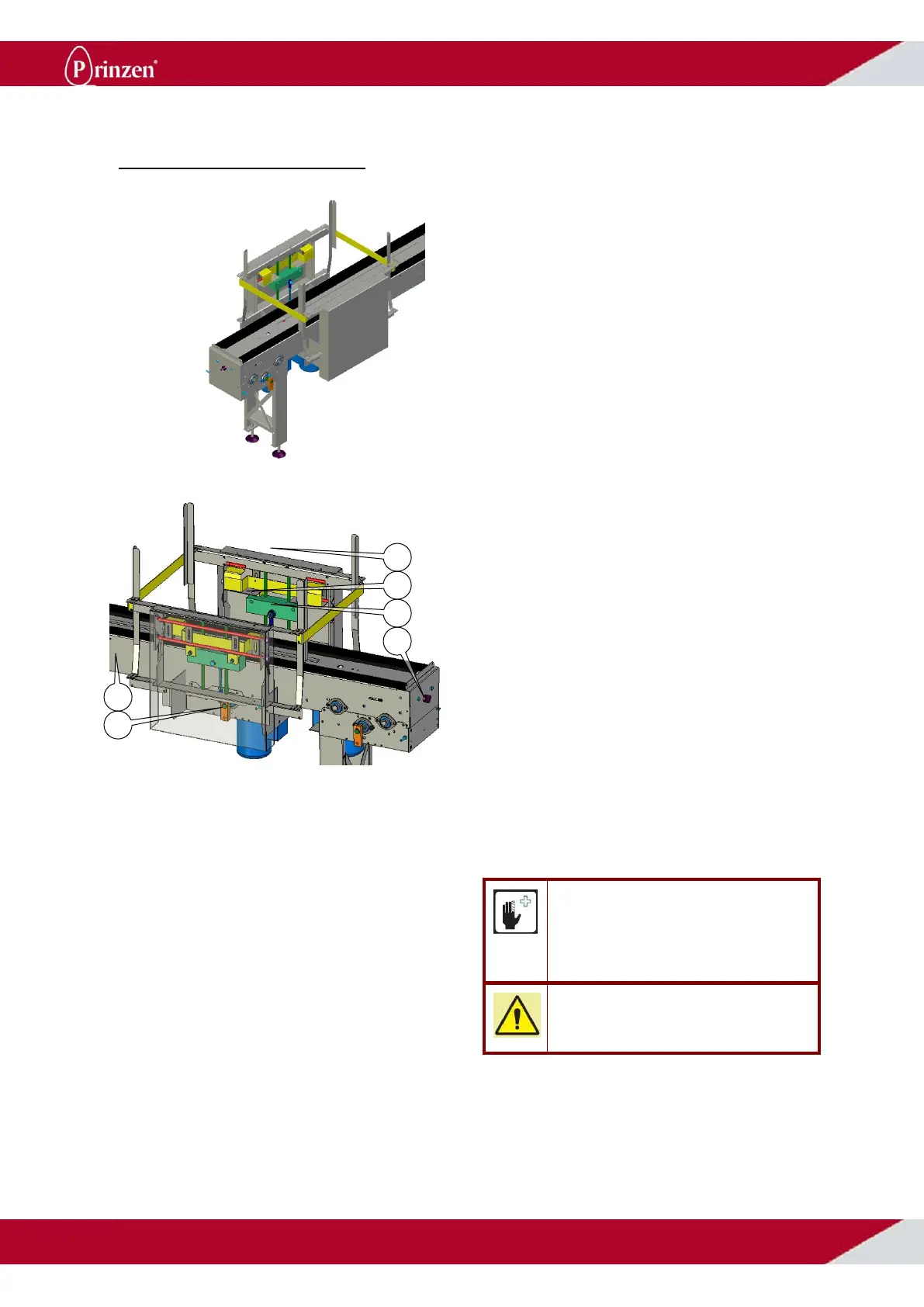

HATCH TRAY DENESTER
Use:
The hatch tray denester separates a hatch tray
from a stack of trays and places this tray on
the output conveyor.
Construction:
The hatch tray denester consists of:
1 Bunker
2 Top grippers
3 Denester blocks
4 Drive mechanism
The hatch tray denester is placed on top of the
output conveyor (5).
Process:
Hatch trays are manually supplied into the
bunker and rest on the top grippers.
The first tray needs to be supplied by activating
the INCH button (6). The next tray is
automatically supplied after 5 cycles of the
vacuum head (125 of 150 eggs are placed in
the tray). The denester blocks remove 1 tray
from the bottom of the stack of trays and
places this tray onto the output conveyor. The
last tray of the stack always remains into the
denester.
Safety:
The denester is not completely secured with
protective covers. Therefore be cautious with
loosely hanging clothes and long hair, do not
come too close to the denester and do not
touch it when it is running production.
The denester blocks make unexpected fast
and powerful movements. Never touch or
come near this part when the packer is running
production.
CAUTION!
Do not enter objects or body parts into the
denester when it is running production.
Keep distant to the denester blocks! These
make unexpected fast and powerful
movements!
ATTENTION!
Do not enter objects or body parts into the
denester when it is running production.
2
3
1
4
5
6
