11.0 Special functions

11.1 Pointing

The function allows "pointing" of holes for subsequent drilling - all objects

smaller than the defined value in the second box [mm] will be "scored" with plasma

for the time [ms] defined in the first box. The effect of the centring ( green crosses )

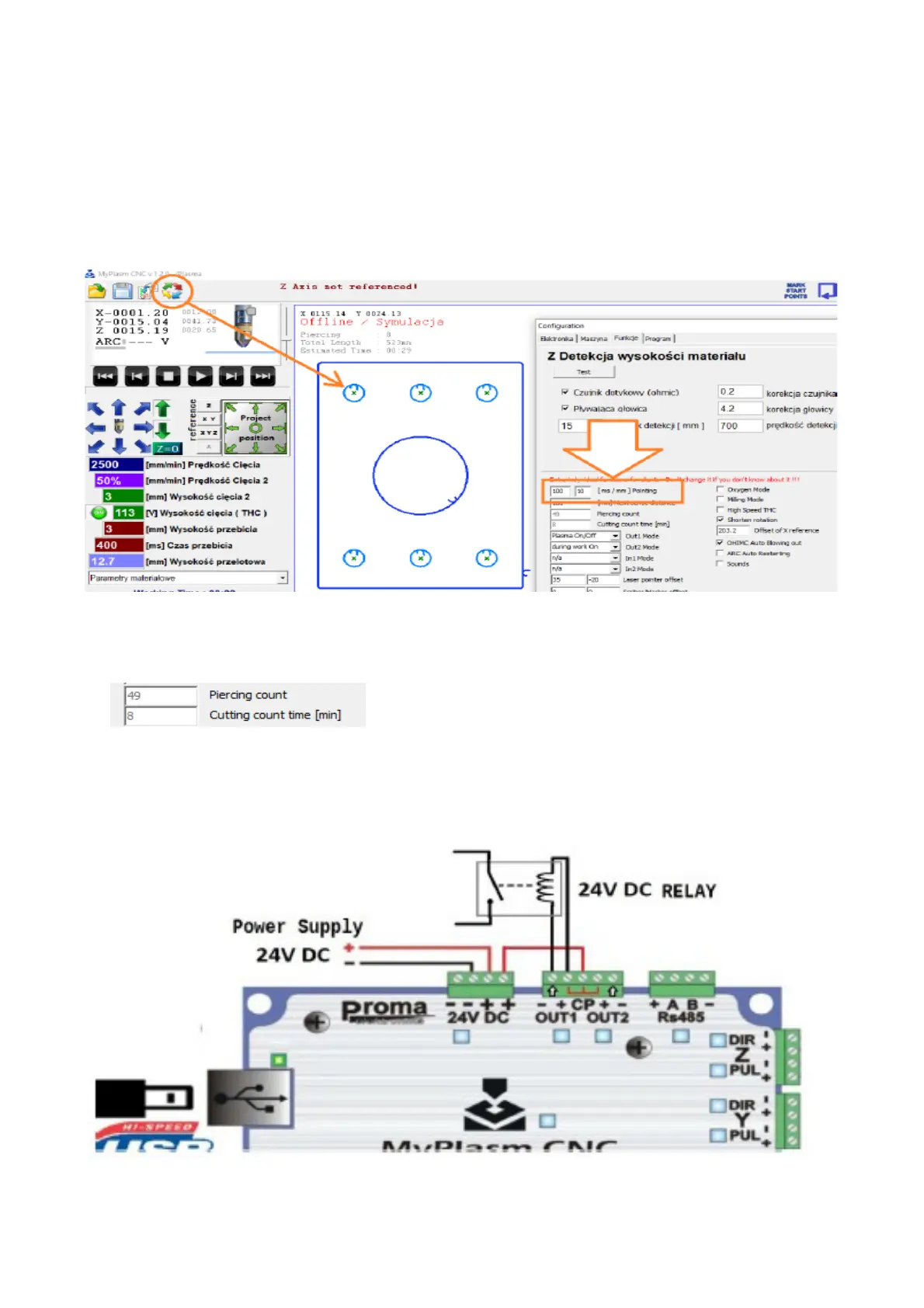

can be checked by clicking Path analysis:

*Planned transfer of functions higher ( beyond special functions )

11.2 Running time counters, number of pierces

Counters can be reset/modified by double-

clicking on the text.

11.3 Out1 / Out2 outputs of additional functions :

The outputs are of type OC 0.5A / 30V ( active low / negative state ) to

terminal CP ( Common Plus ) the required output voltage must be specified, below is

an example of the connection of a 24V DC relay coil to output OUT1.
