10.0 Material height detection
Automatic determination of the pre-set torch height above the
material before cutting allows the torch to be set at the pre-set height
above the material, even in the case of uneven or unevenly aligned
material / thermal deformation, which cannot be taken into account in the
programme. Detection can be implemented in two ways:

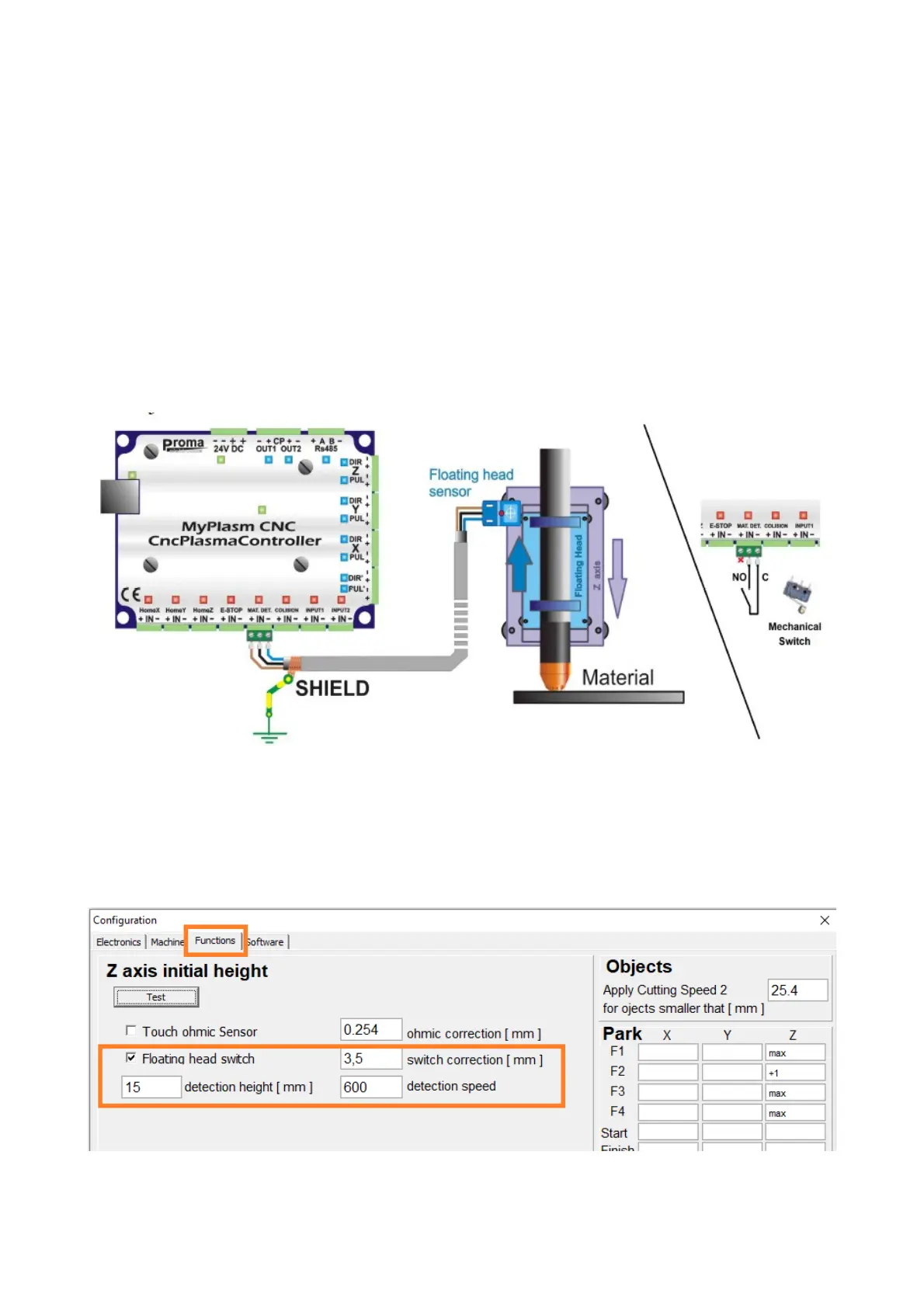

10.1 Floating Head
is a mechanical solution - consisting in placing the torch on an additional
guide which allows the torch to be raised when it encounters material. This
fact can be detected by a sensor/turnout switch connected to the material
detection input : MAT. DET.
In the configuration tab - functions - select "floating head", enter the
limit correction value (distance from the moment the material touches the
sensor), the height above the material from which the "material search"
will start and the speed at which detection will be performed.
30
