9.0 Anti-collision system
The MyPlasmCNC system allows the connection of anti-collision
sensors, which stop the work if an obstacle is met. The torch should be
mounted 'swinging' on the Z-axis to allow it to bend without damaging it
and, at the same time, trigger the stop(s) or inductive sensors to be
connected to the COLLISION input. This input does not require
activation or configuration. It is only possible to select the type of NO /

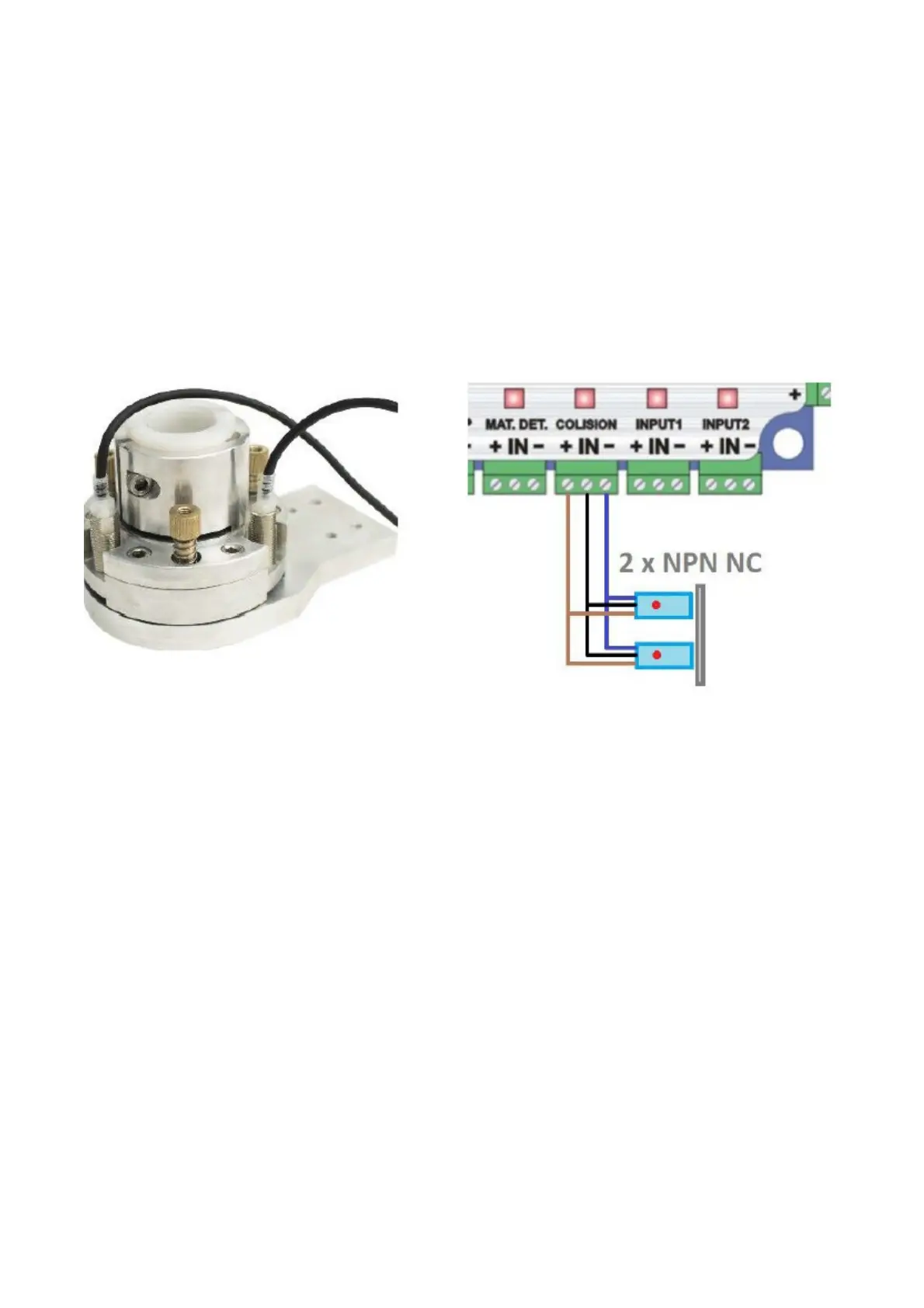

NC contacts on the electronics tab. The most common solution is 2 or 3
NPN / NC sensors connected in parallel, which are activated when the
material (chuck element) is moved away from them, below is an example
of a ready-made solution CTH3T-01 from ROBOT3T company
