5.4 Configuration validity test
The most convenient test for the correct configuration of an axis is to
zero the X Y position, select the axis position and move it by any value
and compare the coordinates on the screen with the actual axis
displacement.

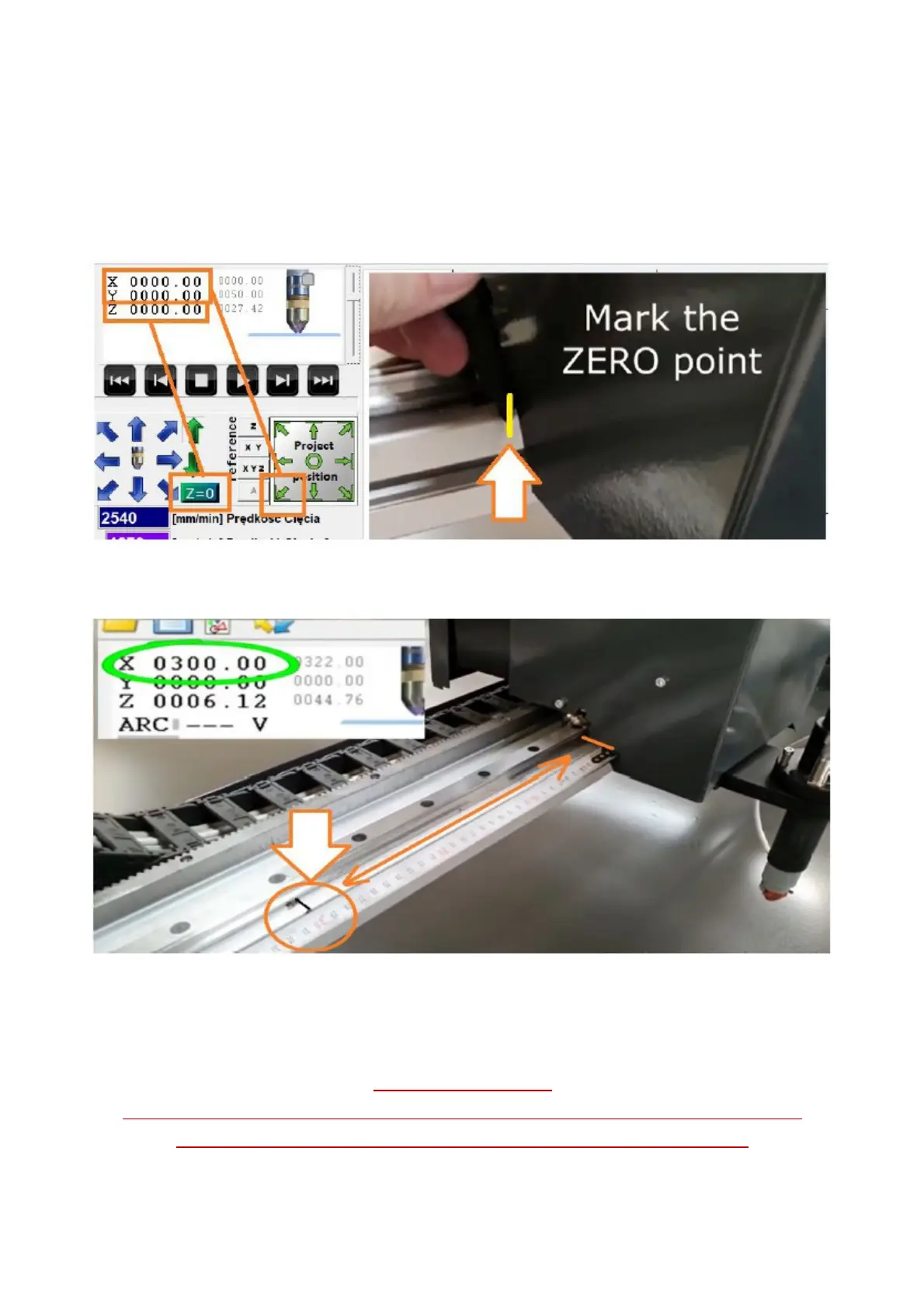

1. Reset the position in the software and mark the position of the axis
(e.g. with a marker)
2. Move the axis and compare the distance with the indication on the screen :
Tests should be carried out for each of the X, Y, Z axes.
ATTENTION !!!
Incorrect setting of drive configuration parameters will prevent
correct system operation and further configuration !!!
5.5 Speed and dynamic movement settings
