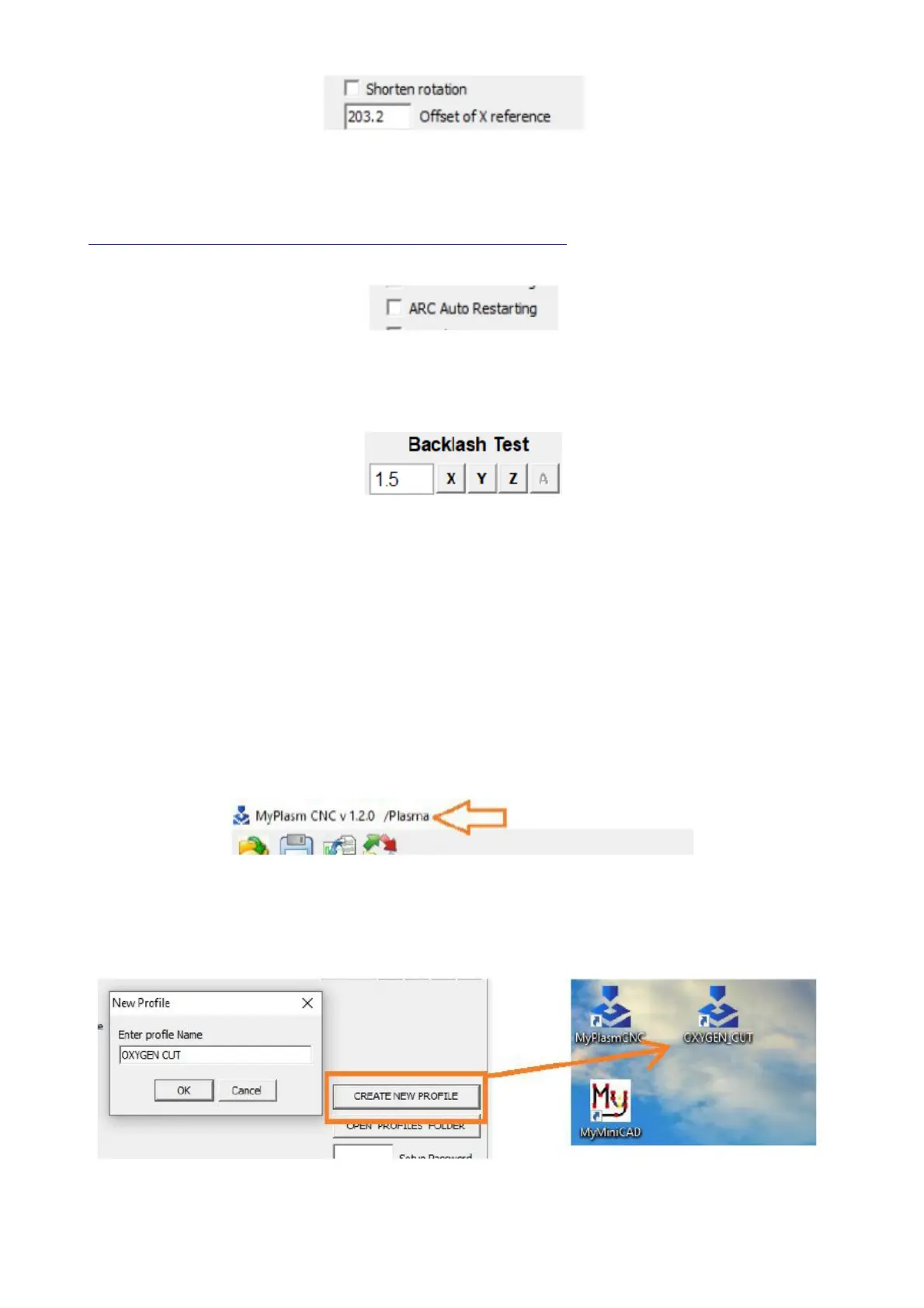

11.11 Rotary axis functions*
At the time of writing this manual, the rotary axis is not supported
( BETA version ). More info :
https://proma-elektronika.com/instructions/myplasm-cnc-system-rotary-axis/
11.12 Automatic arc restart
If no main arc is detected ( ARC OK feedback signal ), the system
will retry.
11.13 Backlash testing
By making small movements with the motor left/right, it is possible
to detect any backlash in the machine - the motor rotates but the Axis does
not move as programmed. From this you can find mechanical problems to
repair.
12.0 Profiles options
The programme allows the use of multiple program profiles, which
greatly facilitates the use of the system if the machine is used in different
ways. For example, there are separate program profiles for plasma cutting
of flat sheets, gas cutting, milling or rotary axis cutting for tubes and
sections. The currently used profile is displayed in the program title bar:
12.1 Creating a new profile
The button in the special tab creates a shortcut to a new profile.
Starting the software with the new shortcut will create a new profile
(all the data of the main “plasma” profile will be copied).
39
