4.3 Connecting the motors
The controller generates STEP(PUL) / DIR signals TTL ( 5V ). It
can work with stepper motor drivers, servo stepper motors and servo
drives if they support 5V STEP (PUL) / DIR signals .
The controller outputs have been designed to drive the opto-isolated inputs
of the controllers. In order to minimise the influence of interference,
connections should be made with twisted pairs of wires (max 50cm ).

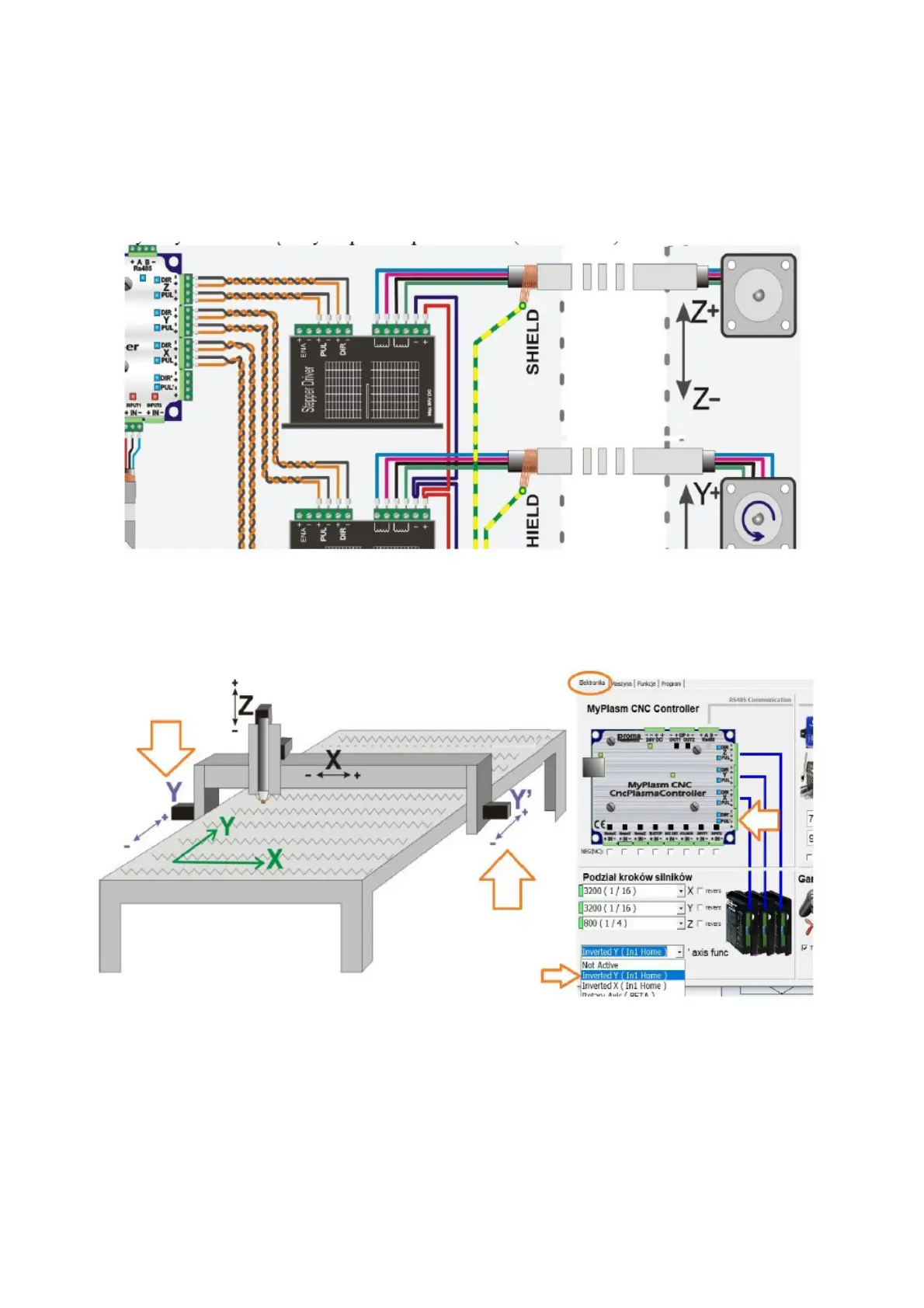

If the machine is equipped with a second motor on one axis, it can be
connected to the auxiliary output PUL' / DIR' and configured accordingly
in the program in the electronics tab :
