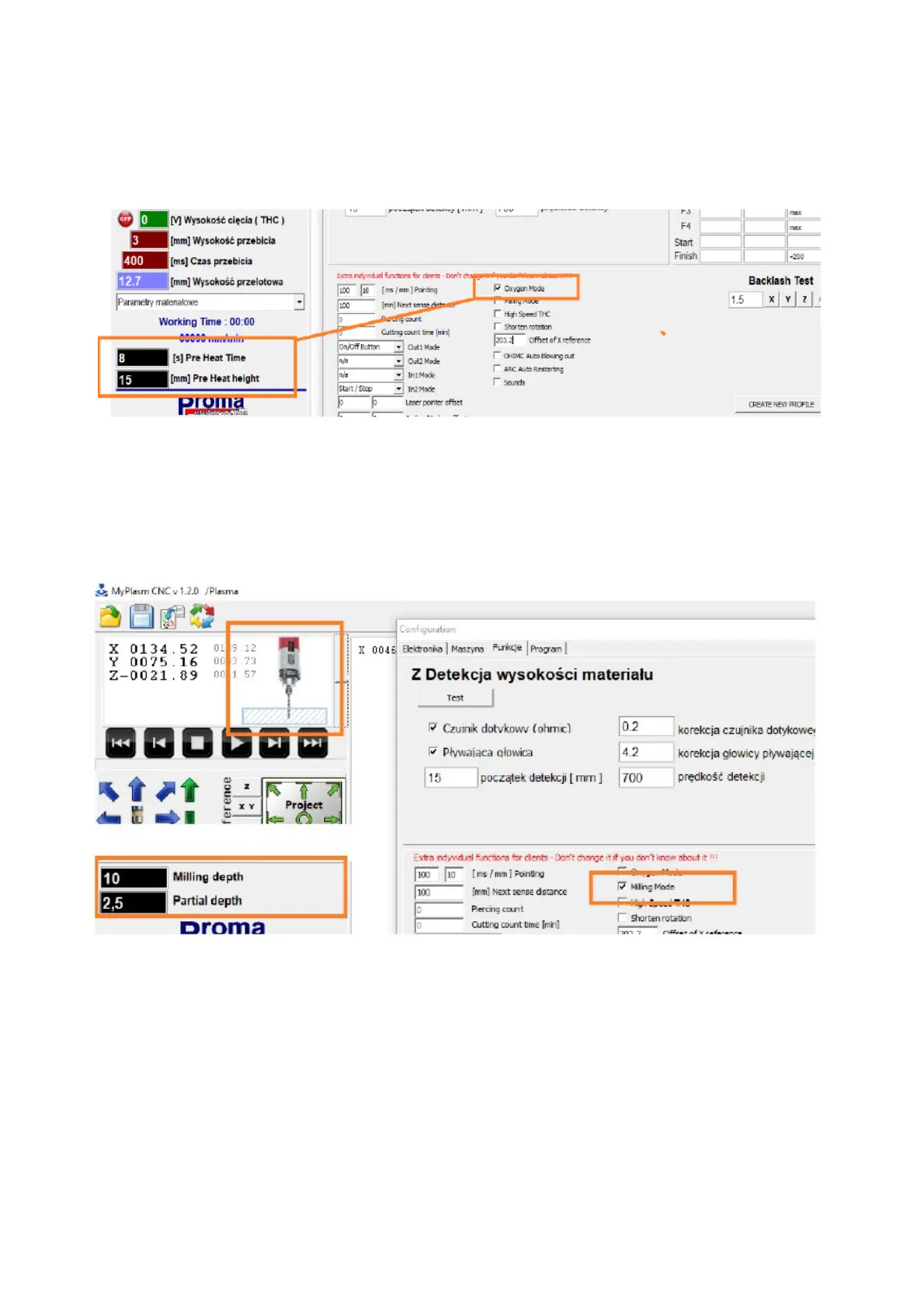

11.8 Gas cutting function
When the function is selected, an additional preheating option is
available ( to form a pond ). Parameters available in the main programme
window : Preheating time and height ( before breakdown ).Use output
“plasma on/off” to control relay that manages cutting oxygen on.
11.9 Milling function
The system allows the operation of a milling machine for straight/flat
2D cutting. By activating the function, additional options such as target
milling depth and grooving in a single pass are available.
11.10 Faster of THC response
As the name suggests - speeds up the THC which allows it to cut
heavily deformed material or corrugated sheeting, for example. Not
recommended when cutting flat materials. Slower THC operation =
better cut quality.
