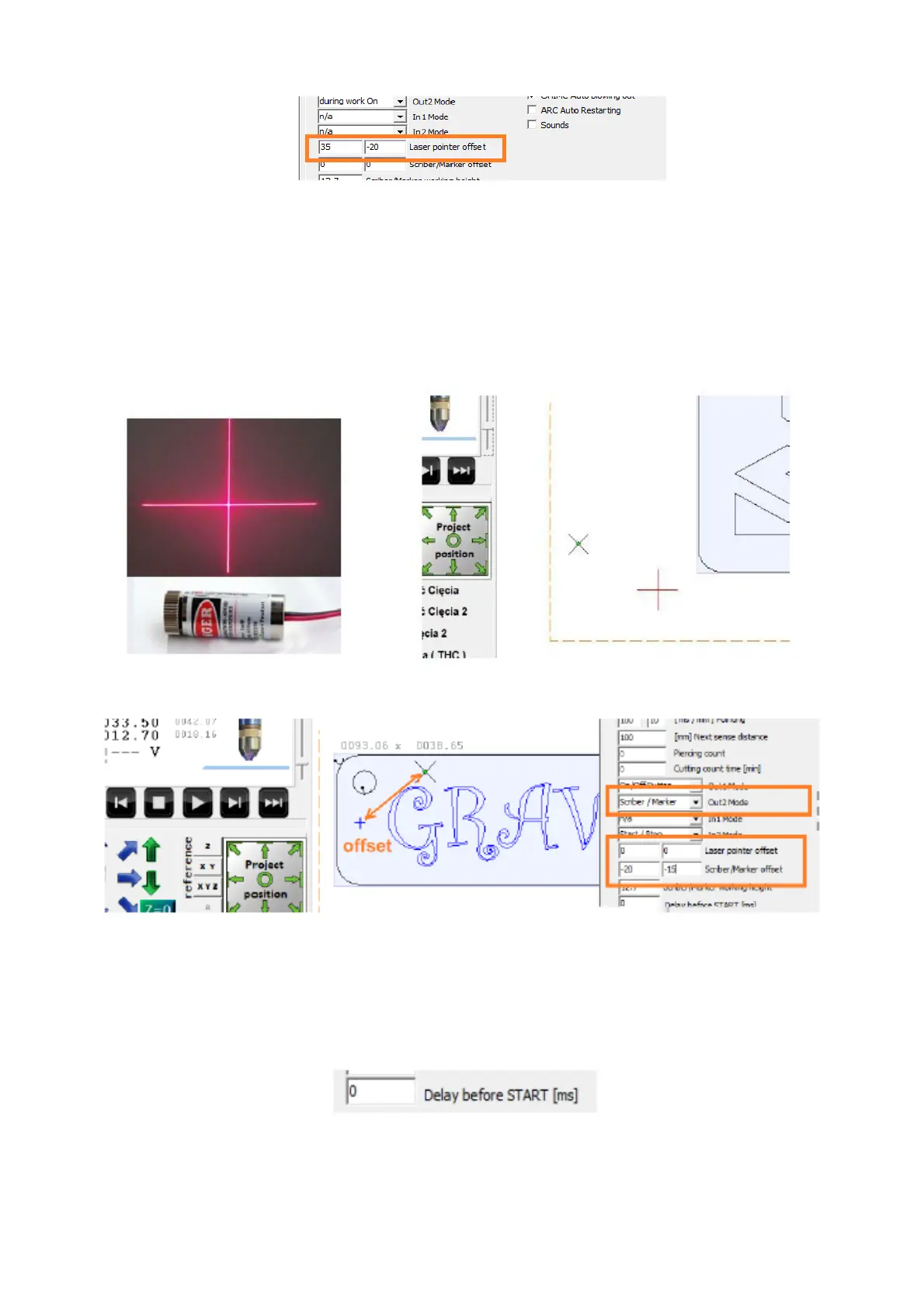

11.5 Laser pointer
A convenient pointing tool ( instead of the torch ) is the laser pointer.
This function is only for referencing the material position prior to actual
cutting. If there is a need to enter an offset of the pointer ( crosshair ) with
respect to the torch axis, this can be done in the special functions, which is
represented by a red indicator in the project window, from now on
positioning takes place with respect to the position of the laser pointer and
not the torch .
11.6 Engraving / Scribber
Parameters for height of Z-axis and offset ( relative to torch axis ) of
engraving/describing tool - if active at output Out1 or Out2 ( see section
11.3 ) .
11.7 Start-up delay
The delay time for the start of automatic operation needed for external
equipment e.g. smoke extractor fan
37
