1.2 Emergency stop
The controller has a emergency stop push=buton input labeled
as E-STOP, which interrupts the controller's operation, disables all
optional outputs as well as blocks the possibility of restarting until the
emergency button is unlocked. At all times - especially when
commissioning the system - be prepared to press it quickly in case of any
problems.
NOTE : The controller input interrupts the operation of the
controller. For full protection, the auxiliary contacts must be used to
disconnect the power supply to the machine, which is not part of this
manual and should be carried out by the installer. This description refers to
stopping the operation of the MyPlasm CNC system.

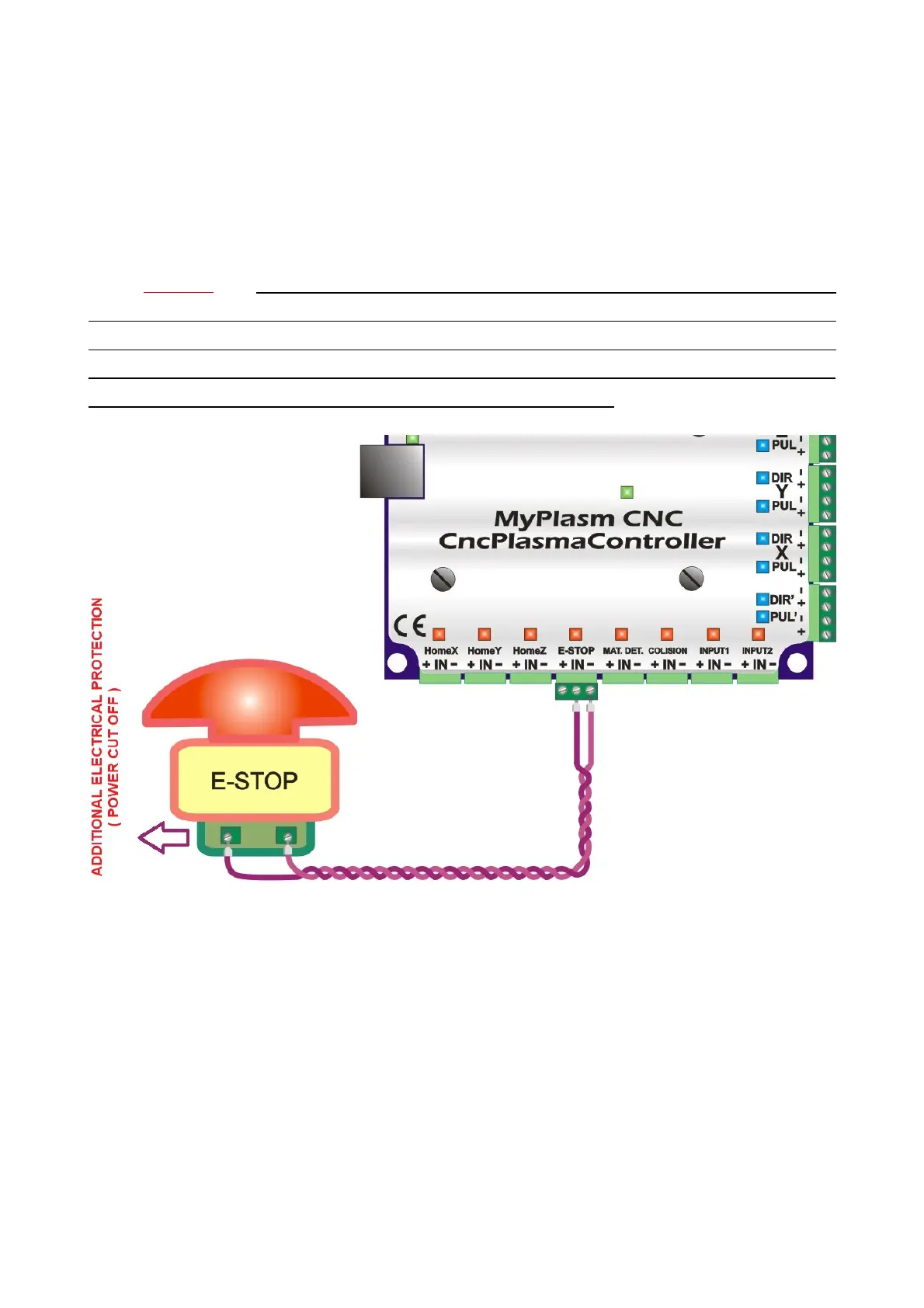

The E-STOP button should short-circuit the IN input ( middle
terminal ) to the MINUS ( right terminal ) of the controller's E-STOP
input. In the programme configuration it is possible to select the type of
NC / NO contacts (described later).
4
