ProMinent diaLog DACb User Manual

1
Supplementary Instructions for PROFINET
®
1.1 Prerequisites
Personnel must be familiar with the contents of the "Assembly and
Operating Instructions for DULCOMETER
®
Multi-parameter Con‐
troller diaLog DACa".
The controller must have a PROFINET
®
module.
These supplementary instructions are only valid when used in con‐
junction with the operating instructions for the Multi-parameter
Controller diaLog DACb.
1.2 Terminal diagram for the DAC communication unit
A1173
Communication
Communication
external connector
Socket M12x1 female
4-pin (D-coded)
green (A)
red (B)
green (A)
red (B)
external
communication
Plug M8x1
ext. connector
2x socket M12x1
Female 4-pin
(D-coded)
Switch
alternative
ext. WLAN router
e.g. TP link
TL-WR702N
Communication
2 x plugs
M8x1 (male)

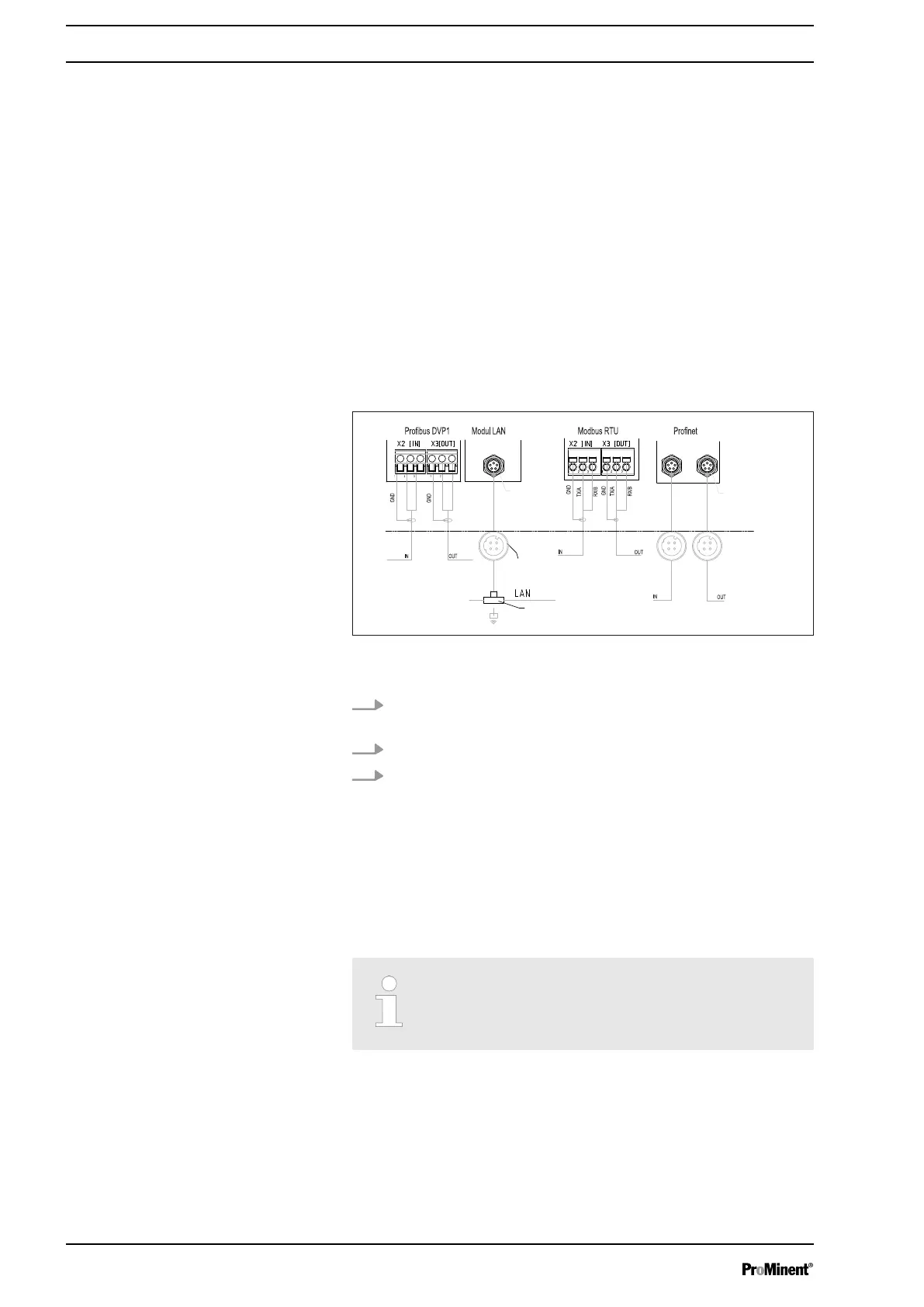

Fig. 1: Terminal diagram for the DAC communication unit (module
B, optional)
1.
Connect the PROFINET
®
to the DAC communication unit,
Fig. 1.
2. Slot 1 is the left-hand [IN] connector.
3. Slot 2 is the right-hand [OUT] connector.
1.3 Adjusting the Controller
1.3.1 General
The controller with PROFINET
®
functionality is adjusted in the
same way as the standard controller, with the addition of the bus
functionality.
Adjustment process cancelled
The adjustment process is cancelled in the event
of a pause longer than 60 seconds.
1.3.2
Configuring PROFINET
®
Remote configuration needs to be enabled to be able to configure
and control the controller via the PROFINET
®
. The PROFINET
®
is
always enabled but it does not accept external commands if
remote configuration has not been enabled.
Validity of the supplementary instruc‐
tions
Supplementary Instructions for PROFINET
®
4
