P_G_0060_SW
40129872
Fig. 61
gamma/ X M70 gamma/ X M85
1009 - 0708 0424 - 220 1604 0715 - 0414
ØA 80 85 70 80
B 78 79 76 78
C 96 97 94 96
D 33 30 38 33
E 190 193 185 190

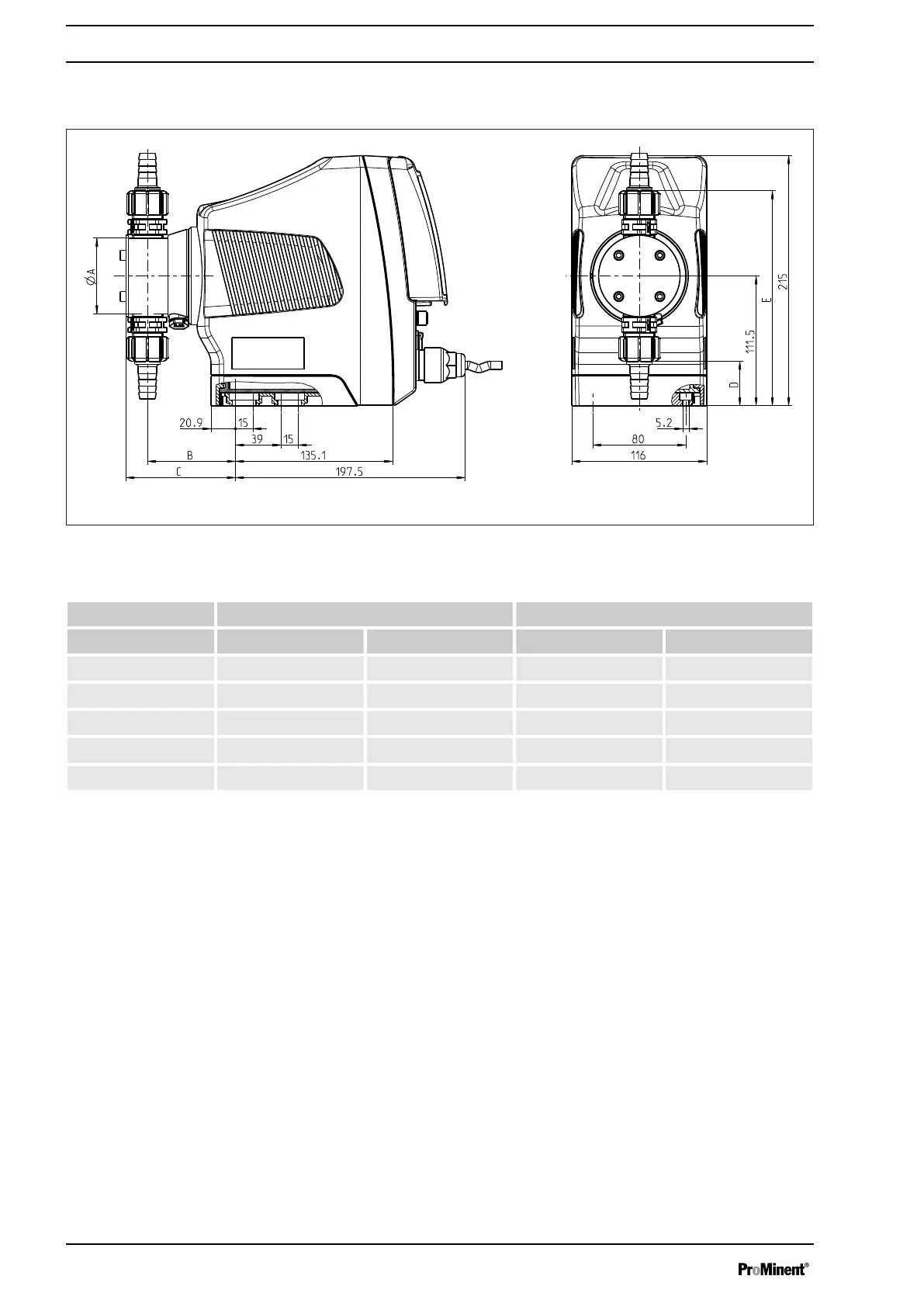

Dimensional drawing of gamma/ X, mate‐
rial version PVT HV
Dimensional Drawings
