11.2.5 Calibrate
‘Menu / Information
è
Settings
è
Calibration
è
...’
Accuracy of calibration 1
Normally the pump does not have to be calibrated.
The pump can be calibrated if viscous feed chemicals are
used or extremely high accuracy is required.
Accuracy of calibration 2
Calibration will not be accurate if these conditions are not
adhered to:
–
do not allow the stroke length to fall below 30%.
–
The pump should perform a minimum of 200 strokes for
calibration.
WARNING!
If the feed chemical is dangerous, take appropriate safety
precautions when performing the following calibration
instructions. Observe the safety data sheet for the feed
chemical!
1. Use the
[Clickwheel]
to scroll through the continuous display to
check whether litres or gallons have been selected.
2. If the incorrect volume unit has been selected, correct it in the
‘Menu / Information
è
Settings
è
System
è
Volume unit’
menu.
3. Check whether the capacity of stroke rate in the continuous display
is not too low for calibration.

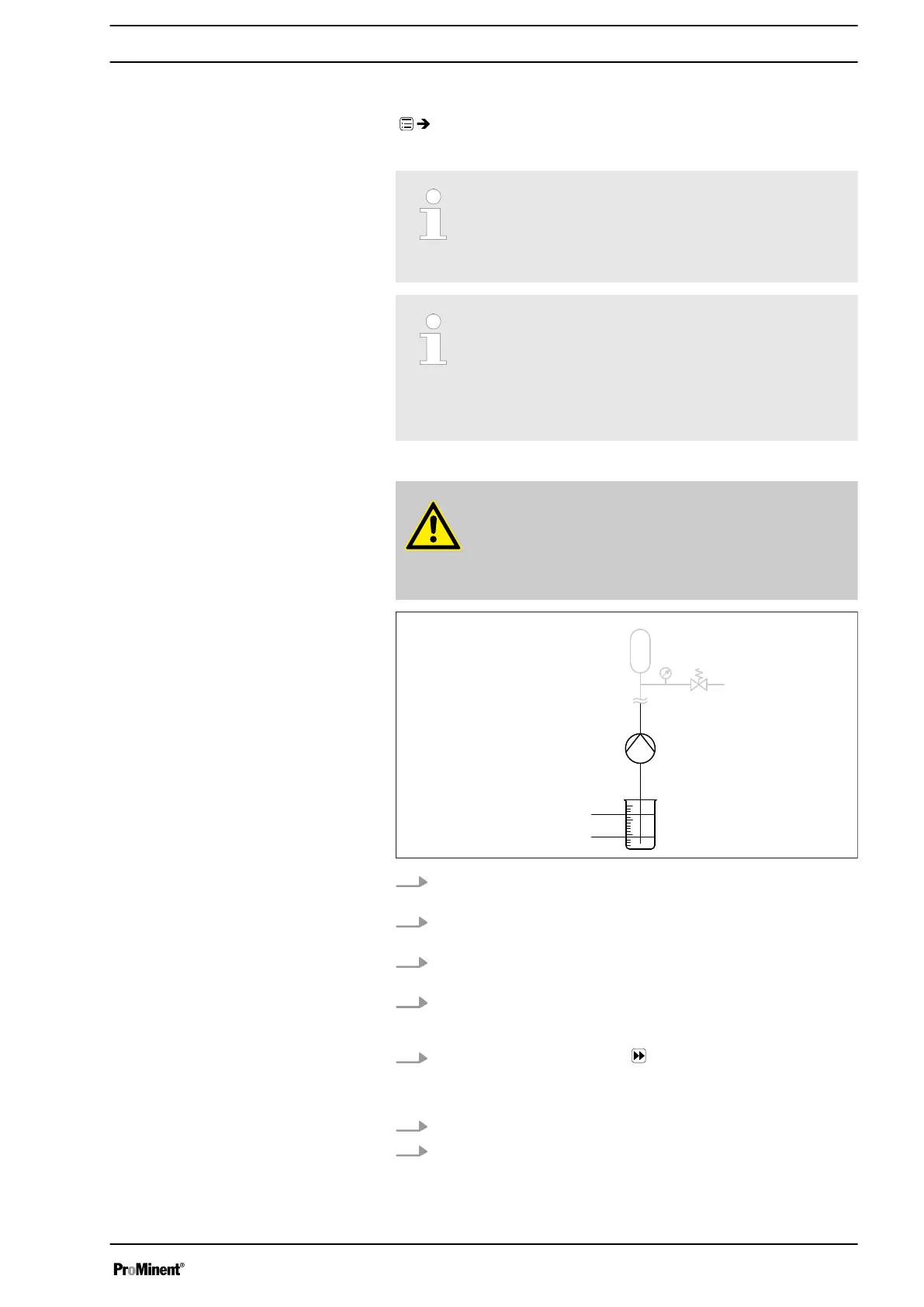

4. Lead the suction hose into a measuring cylinder containing the feed
chemical – make sure that the discharge hose is installed in a per‐
manent manner (operating pressure, ...!).
5.
Prime the feed chemical (press
[Priming]
) if the suction hose is
empty.
1. Record the level in the measuring cylinder.
2.
Select the
‘Menu / Information
è
Settings
è
Calibrate’ ‘’
menu and
press the
[Clickwheel]
.
ð
The
‘Start calibration’
(PUSH) menu point appears.
Preparation
Calibration process
Set Up /
‘Menu’
55
