ProMinent gamma/ X User Manual

I [mA]
I 1 I 2
F2
F1
0 20
a) b)
P1
P2
Fmax
B0089
I [mA]
I 1
I 2
F1
0 20
P1
P2
F2
Fmax

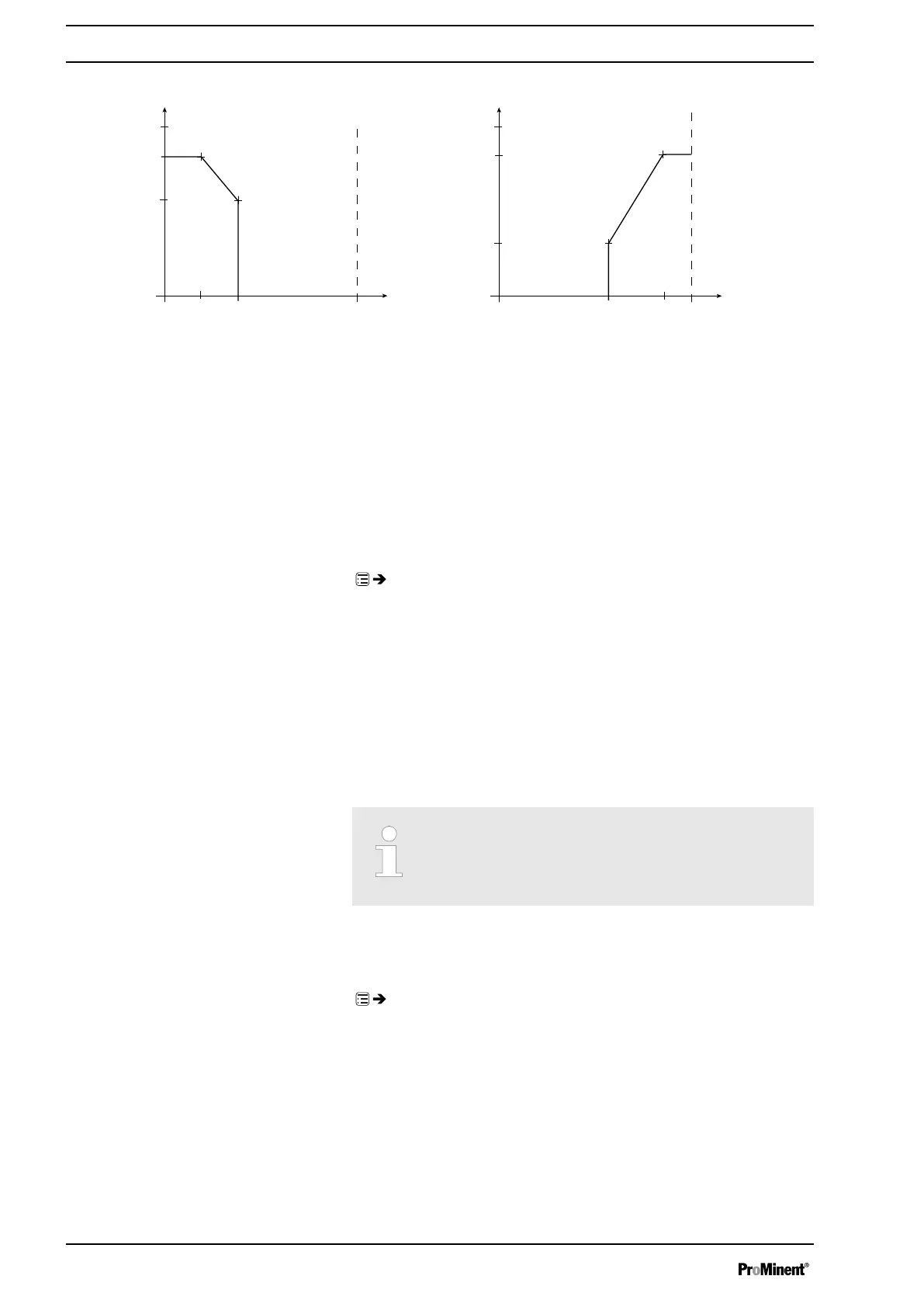

Fig. 32: Frequency-current diagram for a) Lower side band, b) Upper side band
‘Upper side band’
Using this processing type, you can control a metering pump using the
current signal as shown in the diagram above.
Everything functions according to the type of the processing ‘Lower side
band’ .
11.2.2
‘Automatic’
‘Menu / Information è Settings è Automatic è ...’
In the ‘Automatic’ menu, you can set whether the unit is to meter automat‐
ically or conventionally.
With ‘Automatic’ - ‘on’ you set direct values, such as capacity, metering
volume or dosing time instead of stroke length and stroke rate. The other
selection points will also appear in the operating menu - refer to the
chapter "Operating Menu for gamma/ X, complete" (in the appendix) for
the selection points highlighted with a "*1".
In
‘Automatic’ - ‘on’ metering mode, the gamma/ X specifies the stroke
length and the stroke rate according to the conditions determined in order
to meter the set capacity.
‘Automatic’ - ‘on’ and ‘Automatic’ - ‘off’ metering modes
are completely independent of each other. That is the say
that the ‘Automatic’ - ‘off’ does not carry over settings from
‘Automatic’ - ‘on’ .
11.2.3 ‘Stroke Length’
‘Menu / Information è Settings è Stroke length è ...’
The menu does not appear with ‘Automatic’ ‘on’ !
In the ‘Stroke length’ menu, you can enter the stroke length manually.
Set Up /
‘Menu’
50

ProMinent gamma/ X Specifications

General

Protection class	IP65
Max. Pressure	25 bar
Power supply	100-230 V, 50/60 Hz
Material of pump head	PVDF, Stainless steel
Temperature range	-10 °C to +45 °C
Type	Diaphragm dosing pump
Stroke length	Adjustable
Stroke frequency	max. 180 strokes/min
Materials in contact with the medium	PVDF, PTFE, stainless steel
Control	Manual, external control via contacts or 0/4-20 mA signal
Control Options	External, potential-free contacts, 0/4-20 mA
Dosing Accuracy	±2%
