ProMinent gamma/ X User Manual

5.2 Control Elements
11 13
14
12
3
1
5
4
2
10
9
8
7
6
a)
b)
P_G_0051_SW

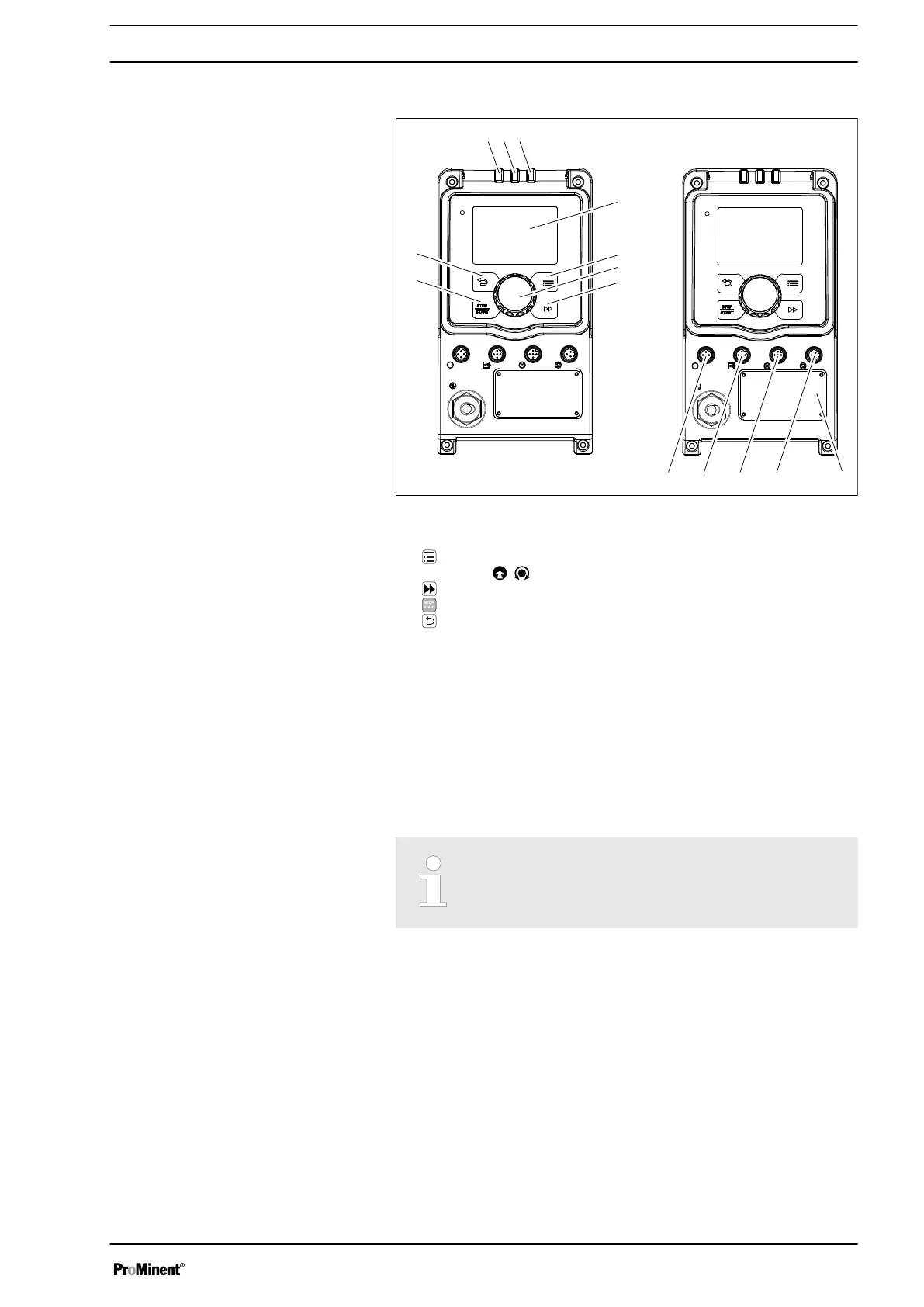

Fig. 4
1 LCD screen
2
[Menu] key
3
Clickwheel
4
[Priming] key
5
[STOP/START] key
6
[Back] key
7 Fault indicator (red)
8 Warning indicator (yellow)
9 Operating indicator (green)
10 "Diaphragm rupture indicator" terminal
11 "External control" terminal
12 "Dosing monitor" terminal
13 "Level switch" terminal
14 Slot for relay and optional modules
5.2.1 Control Elements
Use this overview to familiarise yourself with the keys and
the other control elements on the pump!
Control elements, overview
Overview of Equipment and Control Elements
15

ProMinent gamma/ X Specifications

General

Protection class	IP65
Max. Pressure	25 bar
Power supply	100-230 V, 50/60 Hz
Material of pump head	PVDF, Stainless steel
Temperature range	-10 °C to +45 °C
Type	Diaphragm dosing pump
Stroke length	Adjustable
Stroke frequency	max. 180 strokes/min
Materials in contact with the medium	PVDF, PTFE, stainless steel
Control	Manual, external control via contacts or 0/4-20 mA signal
Control Options	External, potential-free contacts, 0/4-20 mA
Dosing Accuracy	±2%
