19 Dimensional Drawings
–
Compare the dimensions on the dimensional drawing
with those of the pump and mounting foot.
–
All dimensions are in mm.
P_G_0065_SW
40082099
Fig. 57

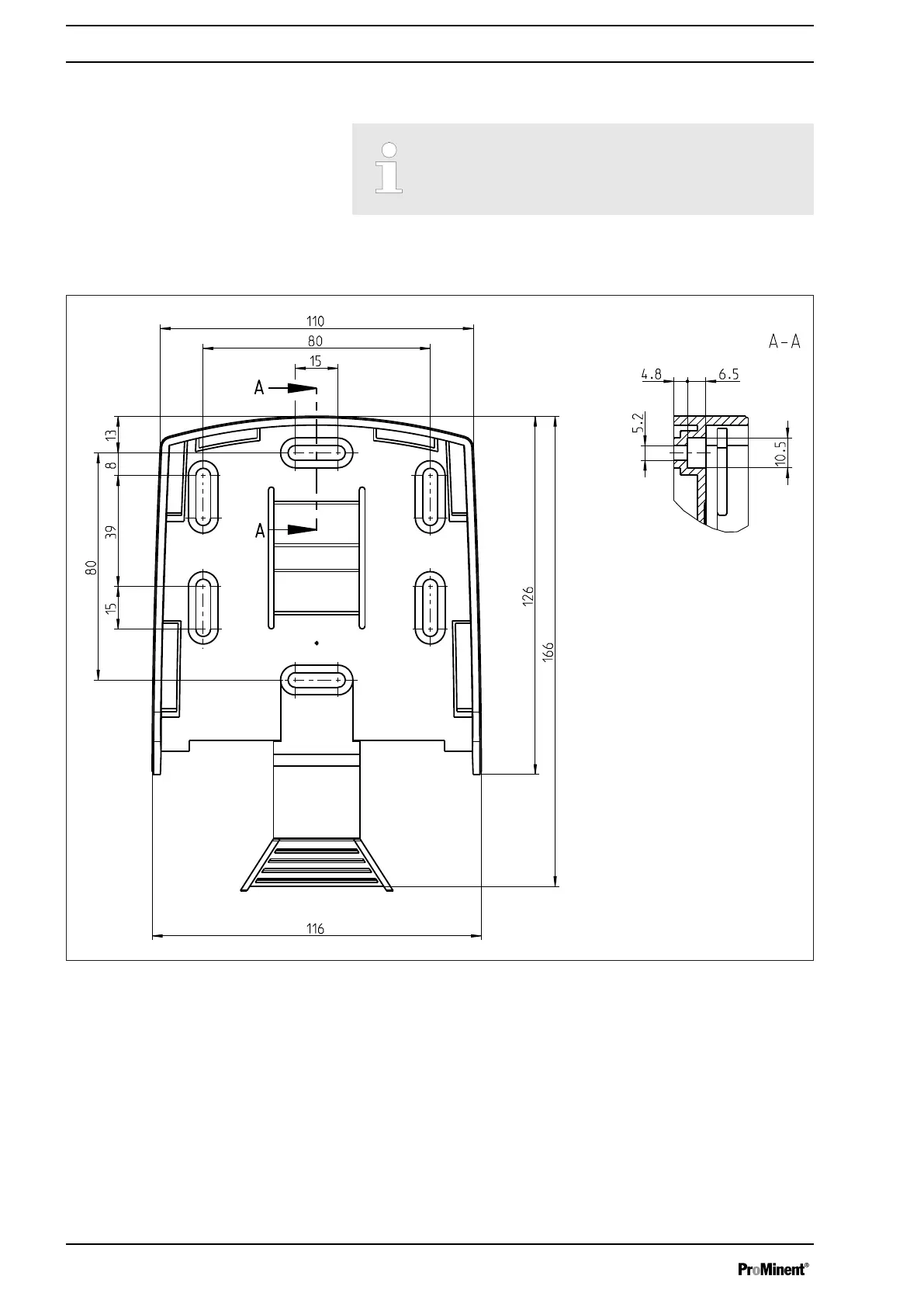

Dimensional drawing of gamma/ X
mounting foot
Dimensional Drawings
116
