P_G_0055_SW

40129808

Fig. 58

gamma/ X M70 gamma/ X M85

1602 1009 - 0708 0424 - 220 1604 0715 - 0414 0245

ØA 70 90 90 70 90 110

B 71 74 76 71 74 76

C (with bleed

valve)

106 108 110 106 107 -

C (without

bleed valve)

- - - - - 93

D 32 24 24 32 24 14

E 23 13 15 13 15 5

F 198 202 202 198 202 209

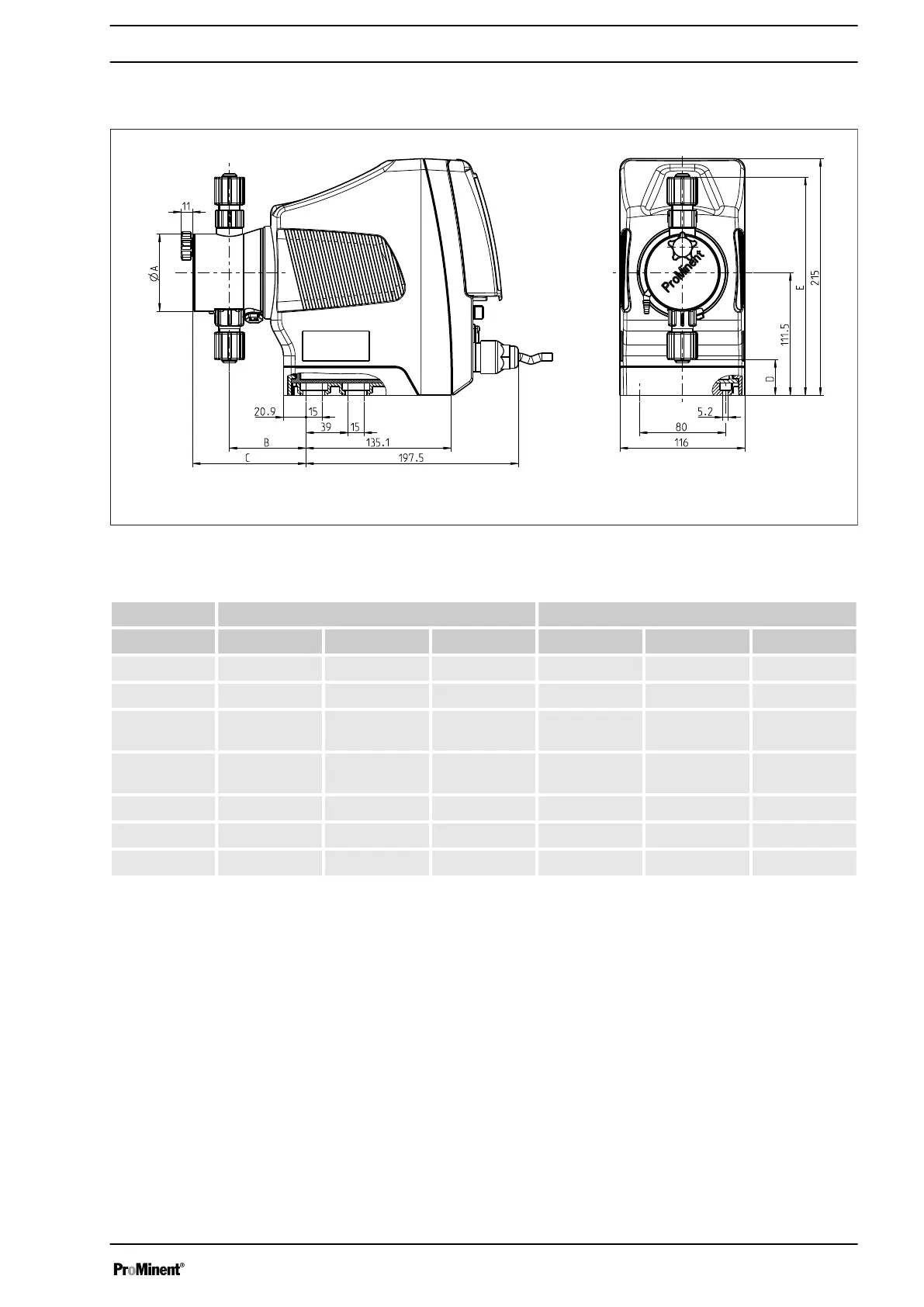

Dimensional drawing of gamma/ X, mate‐

rial versions PPE, PPB and PPT

Dimensional Drawings

117

Default Chapter3
- Table of Contents3
1 Identity Code5
2 About this Pump7
3 Safety Chapter8
4 Storage, Transport and Unpacking13
5 Overview of Equipment and Control Elements14
- Overview of Equipment14
- Control Elements15
- Key Functions18
6 Functional Description20
- Liquid End20
- Drive Unit20
- Capacity22
- Self-Bleeding22
- Operating Modes22
- Functions23
- Relay (Options)23
- LED Displays24
- Hierarchy of Operating Modes, Functions and Fault Statuses24
7 Assembly25
8 Installation, Hydraulic27
- Installing Hose Lines28
- Installation of Metering Pumps Without Bleed Valve28
- Installation of Metering Pumps with Bleed Valve31
- Installation of Metering Pumps with Self-Bleeding (SEK Type)31
- Basic Installation Notes32
9 Installation, Electrical34
- Supply Voltage Connector - Mains Voltage35
- Description of the Terminals35
- External Control" Terminal35
- Level Switch" Terminal36
- Dosing Monitor" Terminal37
- Diaphragm Rupture Indicator" Terminal37
- Relay38
10 Basic Set-Up Principles42
- Basic Principles for Setting up the Control42
- Checking Adjustable Variables44
- Changing to Set up Mode44
11 Set up / 'Menu45
- Information45
- Settings45
- Operating Mode45
- Automatic50
- Stroke Length50
- Metering51
- Calibrate55
- System56
- Inputs/Outputs57
- Bleed60
- Priming Time61
- Time61
- Date62
- Service62
- Access Protect62
- Password63
- Clear Counter63
- Diaphragm Replacement63
- Display63
- Reset to Factory Settings63
- Language63
12 Operation64
- Manual Operation64
13 Maintenance66
14 Repairs68
- Cleaning Valves69
- Replacing the Diaphragm70
- Cleaning the Diaphragm Rupture Indicator71
15 Troubleshooting73
- Faults Without a Fault Message73
- Fault Messages74
- Warning Messages75
- All Other Faults75
16 Decommissioning76
17 Technical Data78
- Performance Data78
- Accuracy79
- Standard Liquid End79
- Self-Bleeding Liquid End79
- Viscosity79
- Material Specifications80
- Electrical Data80
- Temperatures81
- Climate81
- Degree of Protection and Safety Requirements81
- Compatibility81
- Shipping Weight82
- Sound Pressure Level82
18 Exploded Drawings and Ordering Information83
- Exploded Drawings83
- Ordering Information115
19 Dimensional Drawings116
20 Diagrams for Setting the Capacity125
21 EC Declaration of Conformity for Machinery128
22 Operating/Set-Up Overview of the Gamma/ X129
23 Operating Menu of Gamma/ X, Entire Unit131
24 Continuous Displays and Secondary Displays135
25 Index137
