P_G_0056_SW
40129858
Fig. 59
gamma/ X M70 gamma/ X M85
1602 1009 - 0708 0424 - 220 1604 0715 - 0414 0245
ØA 70 90 90 70 90 110
B 77 74 76 77 76 76
C (with bleed
valve)
105 102 104 105 104 105
C (without
bleed valve)
92 91 91 92 91 91
D 33 23 23 33 23 14
E 191 200 200 191 200 210

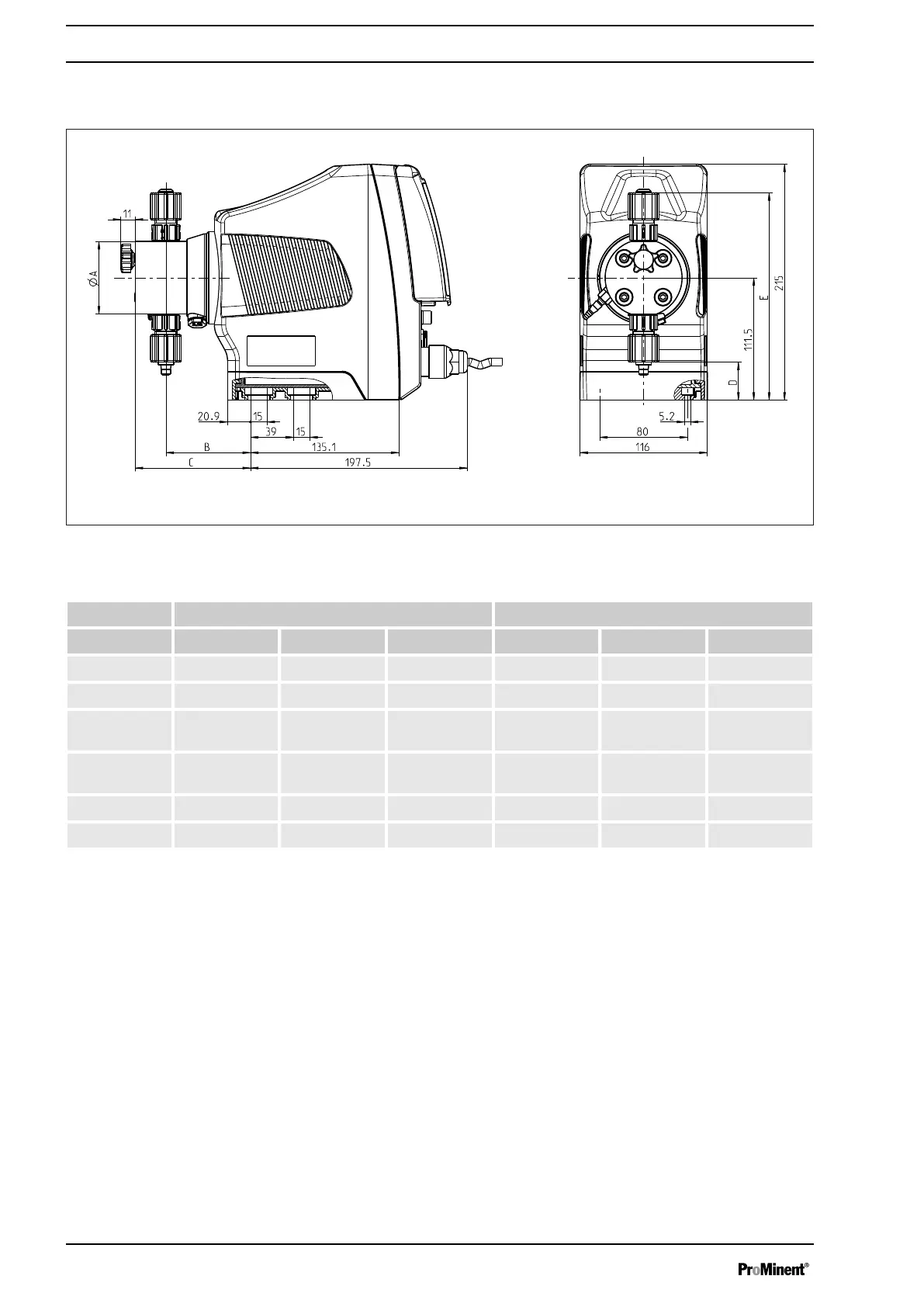

Dimensional drawing of gamma/ X, mate‐
rial versions NPE, NPB and NPT
Dimensional Drawings
118
