ProMinent gamma/ X - Page 119

P_G_0057_SW
40129862
Fig. 60
gamma/ X M70 gamma/ X M85
1602 1009 - 0708 0424 - 220 1604 0715 - 0414 0245
ØA 70 90 90 70 90 110
B 71 75 79 71 73 76
C (with bleed
valve)
84 92 90 84 90 -
C (without
bleed valve)
- - - - - 93
D 36 25 25 36 25 14
E 196 203 203 196 203 209

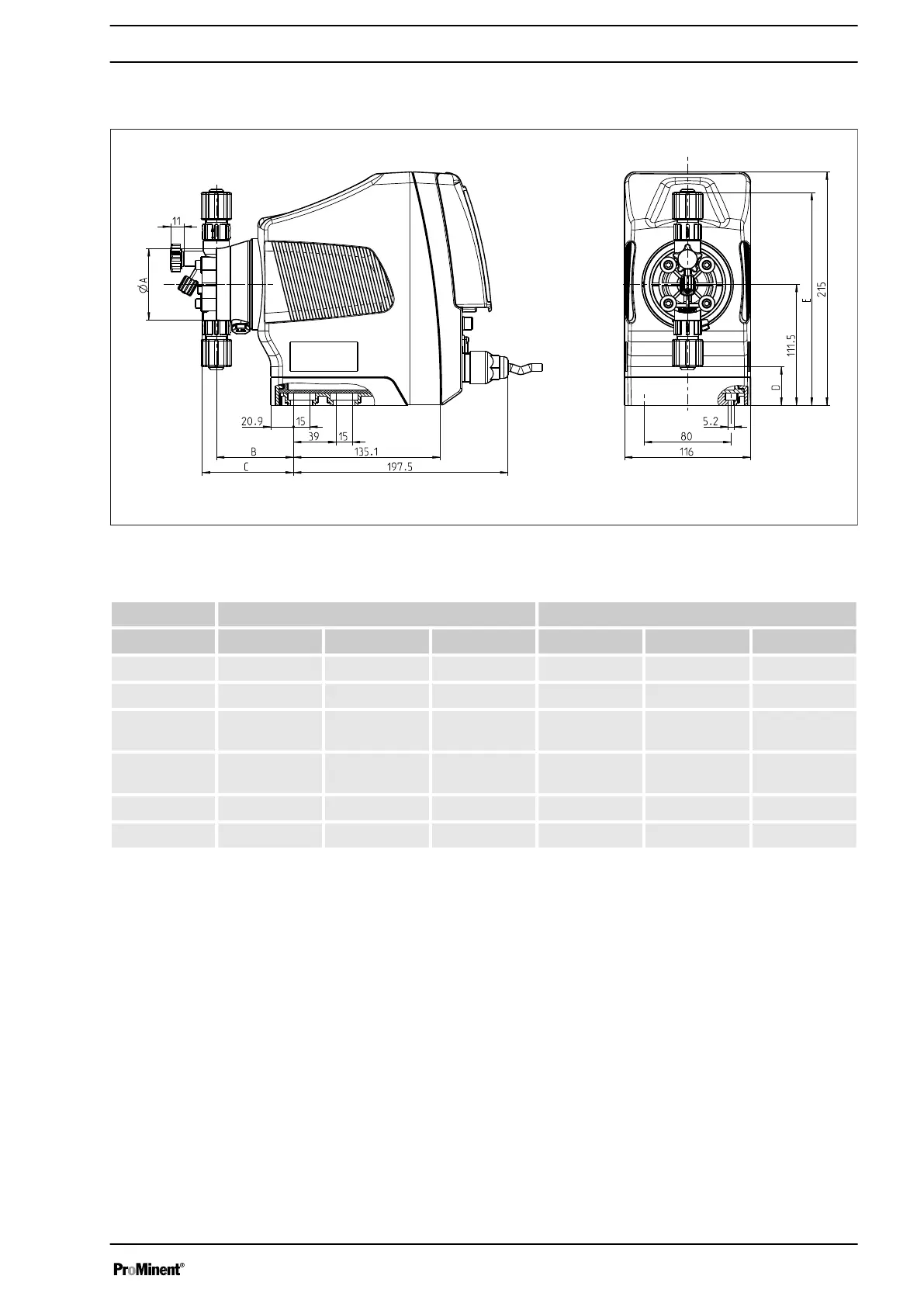

Dimensional drawing of gamma/ X, mate‐
rial version PVT
Dimensional Drawings
119
