P_G_0061_SW
40129872
Fig. 62
gamma/ X M70 gamma/ X M85
1602 1009 - 0708 0424 - 220 1604 0715 - 0414 0245
ØA 70 85 85 70 85 100
B 72 79 77 72 77 78
C 86 96 96 86 96 97
D 35 3 3 35 3 -5
E 188 220 202 188 220 227

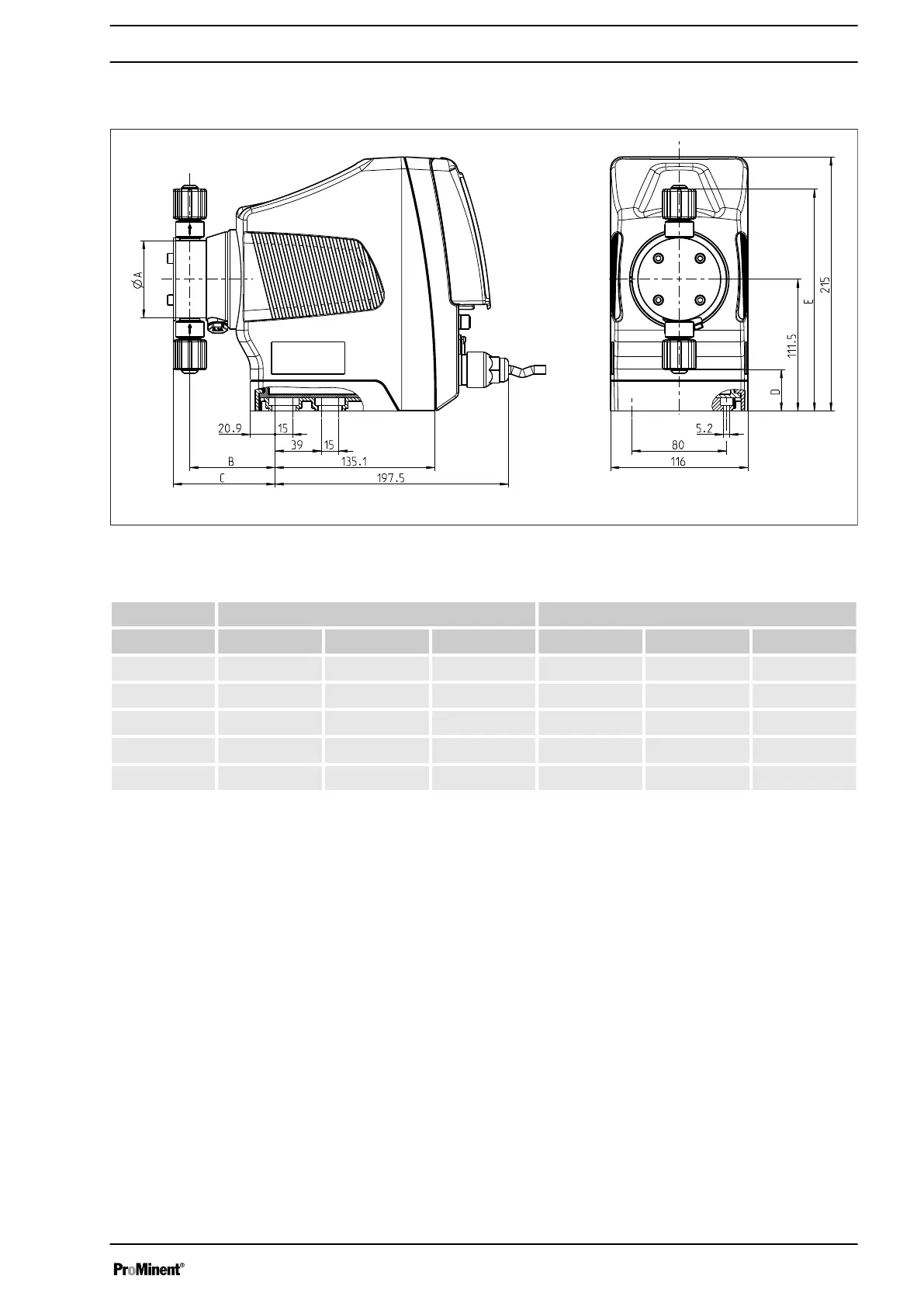

Dimensional drawing of gamma/ X, mate‐
rial version TTT
Dimensional Drawings
121
