User Manual
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany

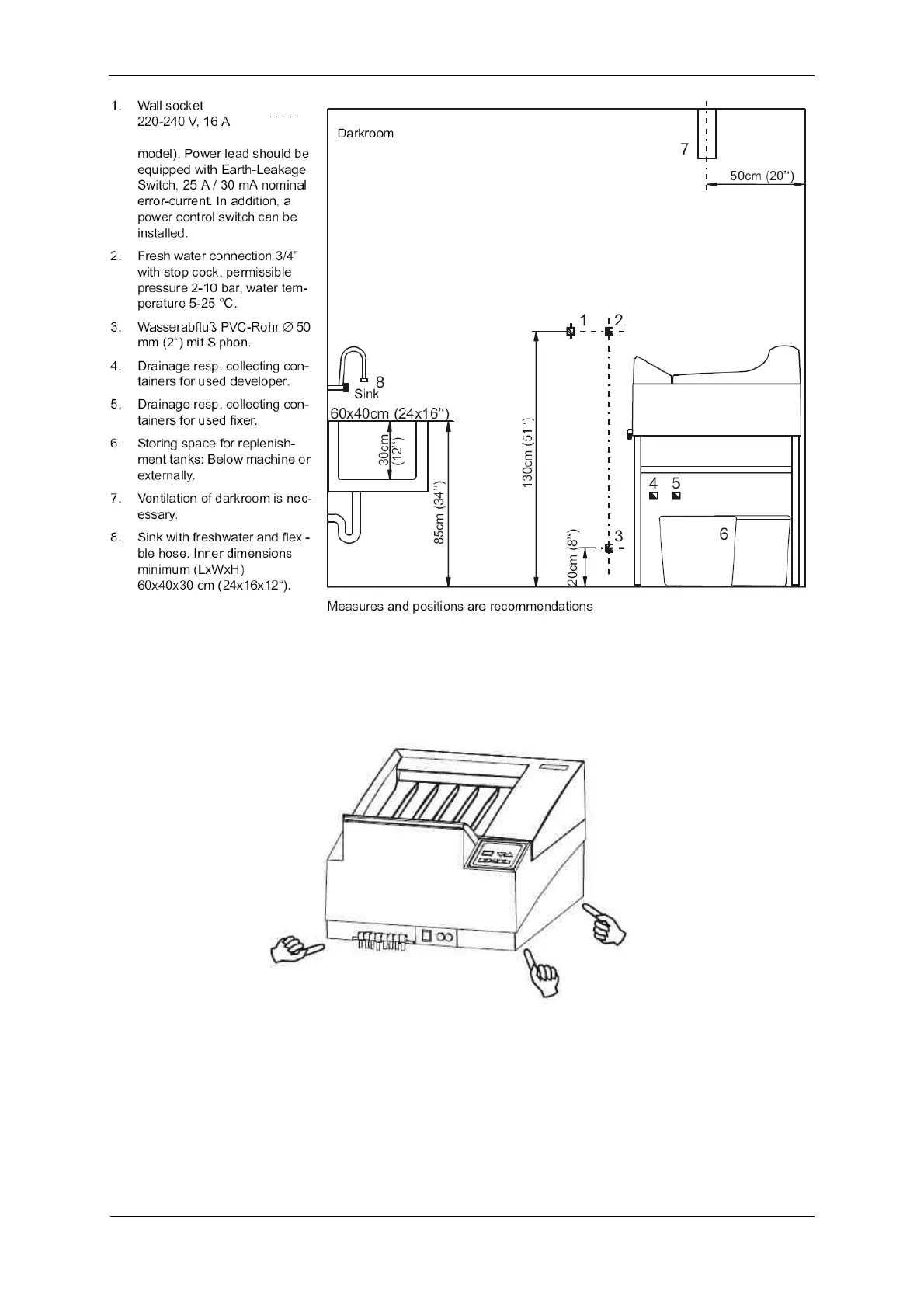

3.2 Transport
Due to the weight and dimensions of the film processor OPTIMAX 2010 NDT should always be carried
by two persons. To do so, hold the machine at the sides on the bottom (see figure). While putting the
machine down, watch the position of the levelling feet to prevent damaging these.
3.3 Installation of processor
Unpack the Processor. Remove cover and transport securing brackets on the sides of the roller racks.
Remove roller racks - start with the dryer rack.
In the standard version the OPTIMAX 2010 NDT is delivered as a tabletop processor with a two part
floor plate. If the machine is upgraded with the optional stand or cabinet, the narrow plastic part has to
be removed.
