4 Control elements and device displays
4.1.1 Control elements and device displays 2 pumps

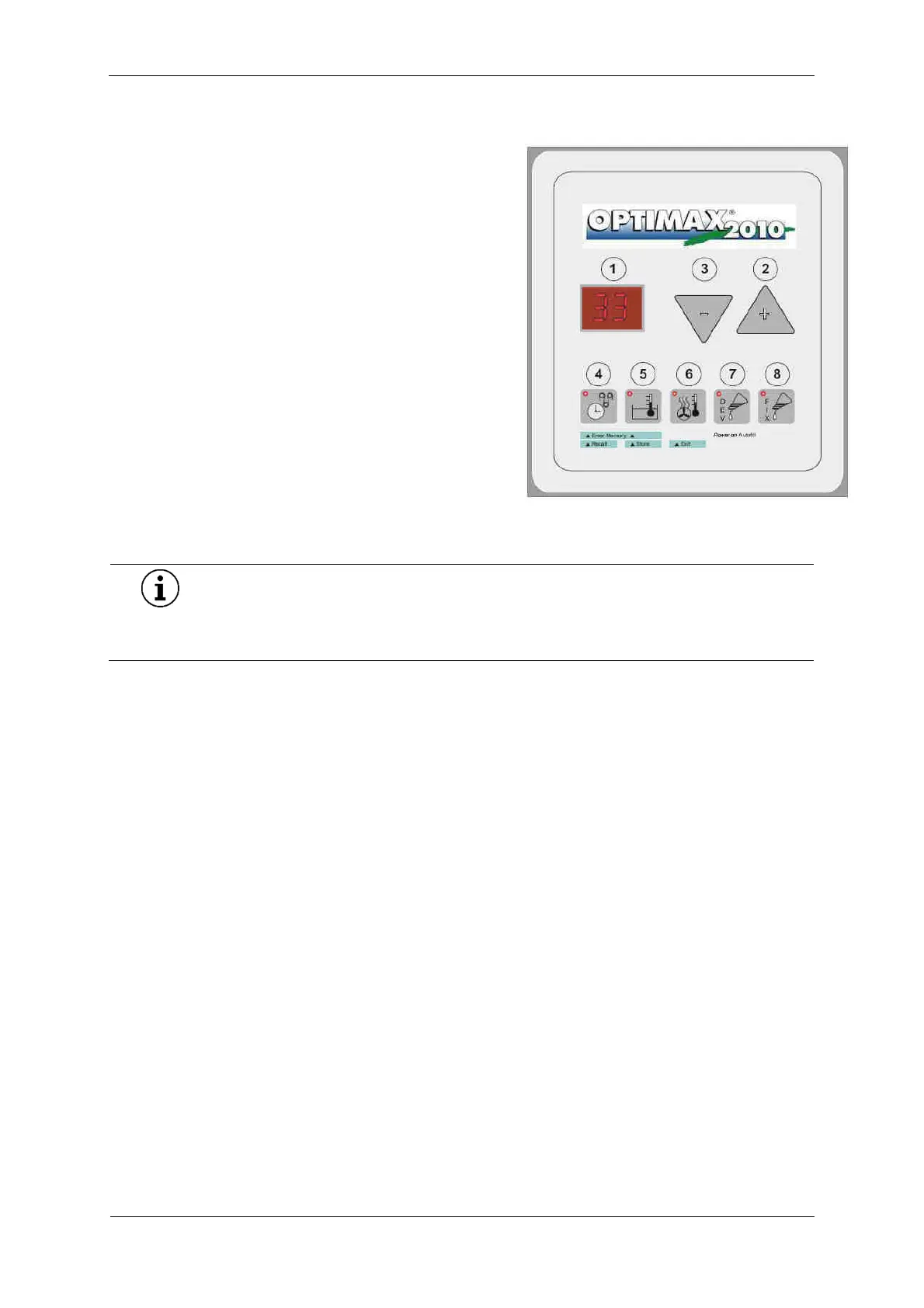

Short Overview and Control Panel
1 Display working parameter
2 Arrow button „Up“ = increase parameter value
3 Arrow button „down“ = decrease parameter value
Mode Button
4 Processing time in minutes
5 Developer temperature in °C
6 Dryer output in %
7 Replenishment time developer in seconds
8 Replenishment time fixer in seconds
NOTE
Safety function stops film transportation when cover is removed.
Therefore keep cover placed on the machine when processing films.
