Protec OPTIMAX 2010 NDT - Hose Connection

OPTIMAX
2010 NDT
User Manual
516
0
-
0
-
0002
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
18
von
58
The overflow and drainage hoses from the developer and fixer should be guided into their respective
collecting containers.
The overflow and the drainage of the water can either be guided into the drainage syphon or into
respective collection containers.

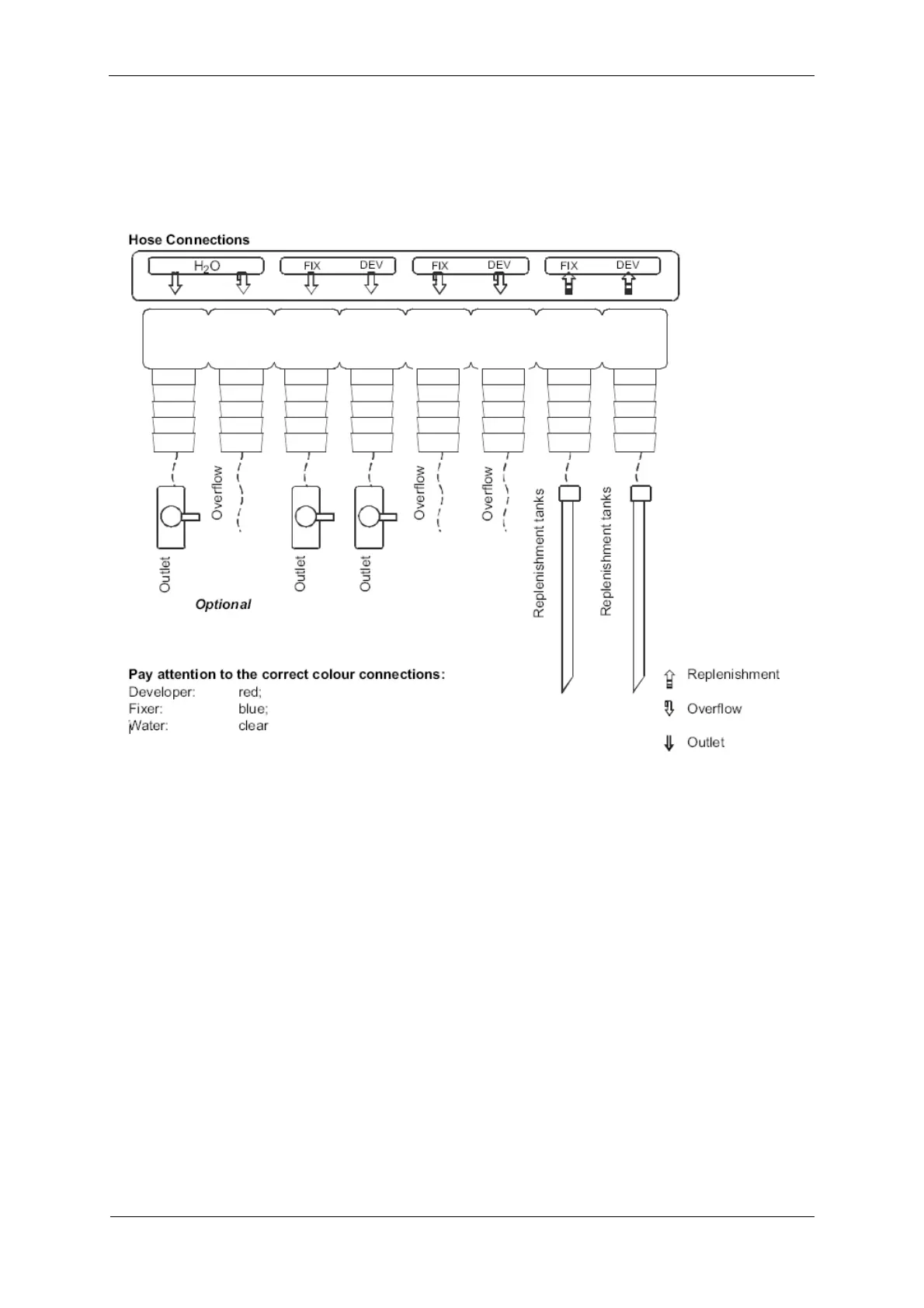

3.5.3 Hose Connection
