3.3.1 Table-top installation
In the event that the processor is to be installed on a work top or table, the four adjustable feet should
be screwed on.
WARNING!
Machine should not be installed on table-top without adjustable
feet, as this would block the ventilation openings under the machine and
cause overheating.
3.3.2 Installing on processor stand or base cabinet
In the event that the processor is to be installed on the stand or cabinet (optional accessory), the
processor will be mounted directly to it. Mount processor according to manual included with stand or
cabinet (the adjustable feet inside the accessory bag are not required).
3.4 Finally the processor needs to be levelled:
Place spirit level across the sidewalls of processor and adjust the levelling feet accordingly. Replace the
racks into the processor and close the latches.
3.5 Connecting the processor
NOTE
Inform
yourself of the local water board regulations regarding drainage. These
regulations may differ from information in this manual, but they should be complied
with.

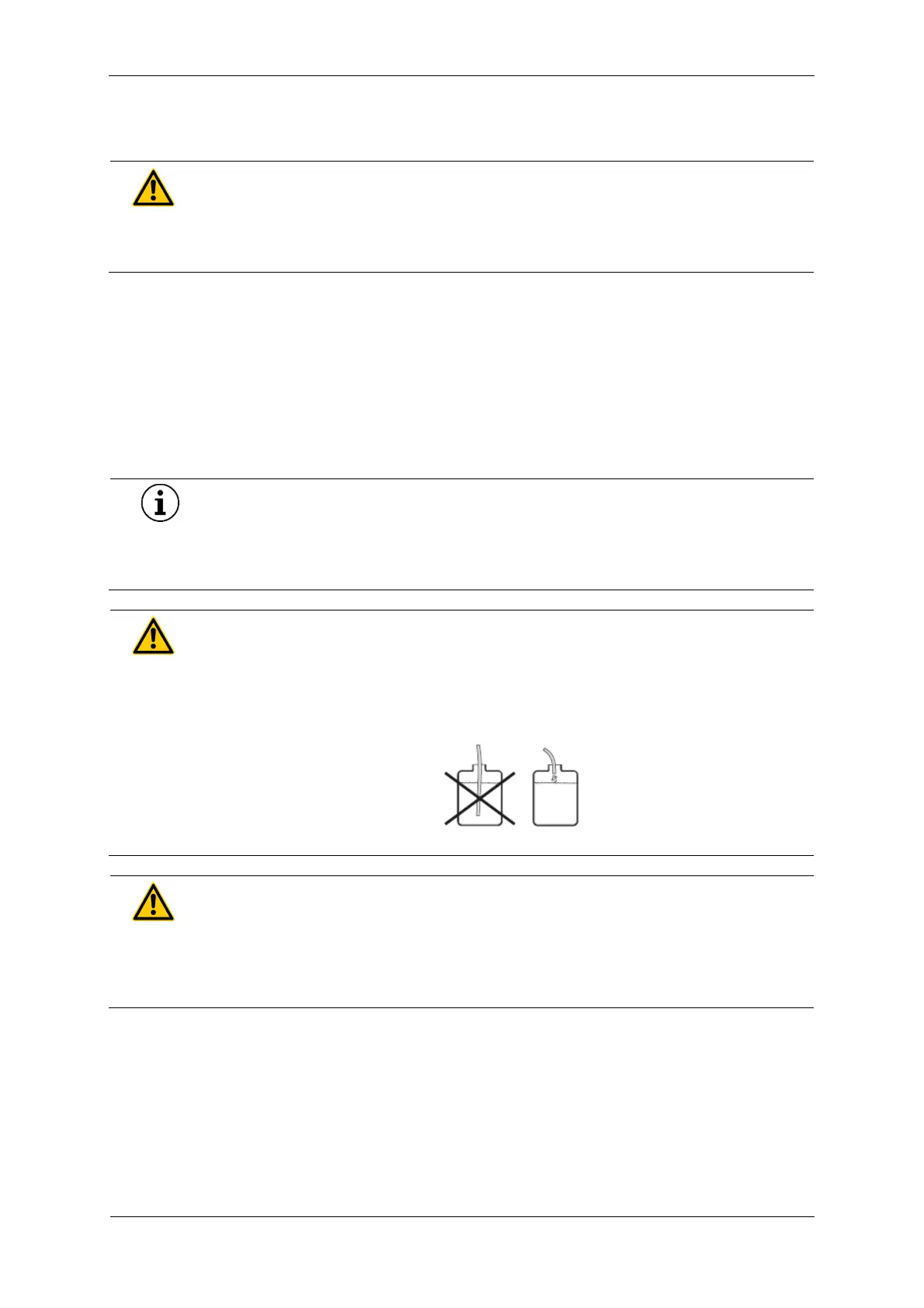

WARNING!
Danger of Overflow!
Use the included cable binders (accessory bag) to secure the hoses. Fix all
hose ends which guide into syphon or collecting container, so that they do
not drop into the liquid.
WARNING!
The hose piping should be straight (without the hoses going up and down)
with a constant fall. The hoses should be as short as possible and without
bends and kinks. This is very important for the water overflow hose. Bad
piping work will cause the machine to overflow!
