WARNING!
If the machine is installed table-top, ensure that the table is stable enough
and does not wobble.
3.5.1 Water connection
Fit water-inlet hose (grey) at the rear of the machine and connect to the prepared fresh water supply.
3.5.2 Water overflow
The water overflow hose (Ø =16mm) is likewise connected at the rear of the unit. The hose is installed
as described in the next section.

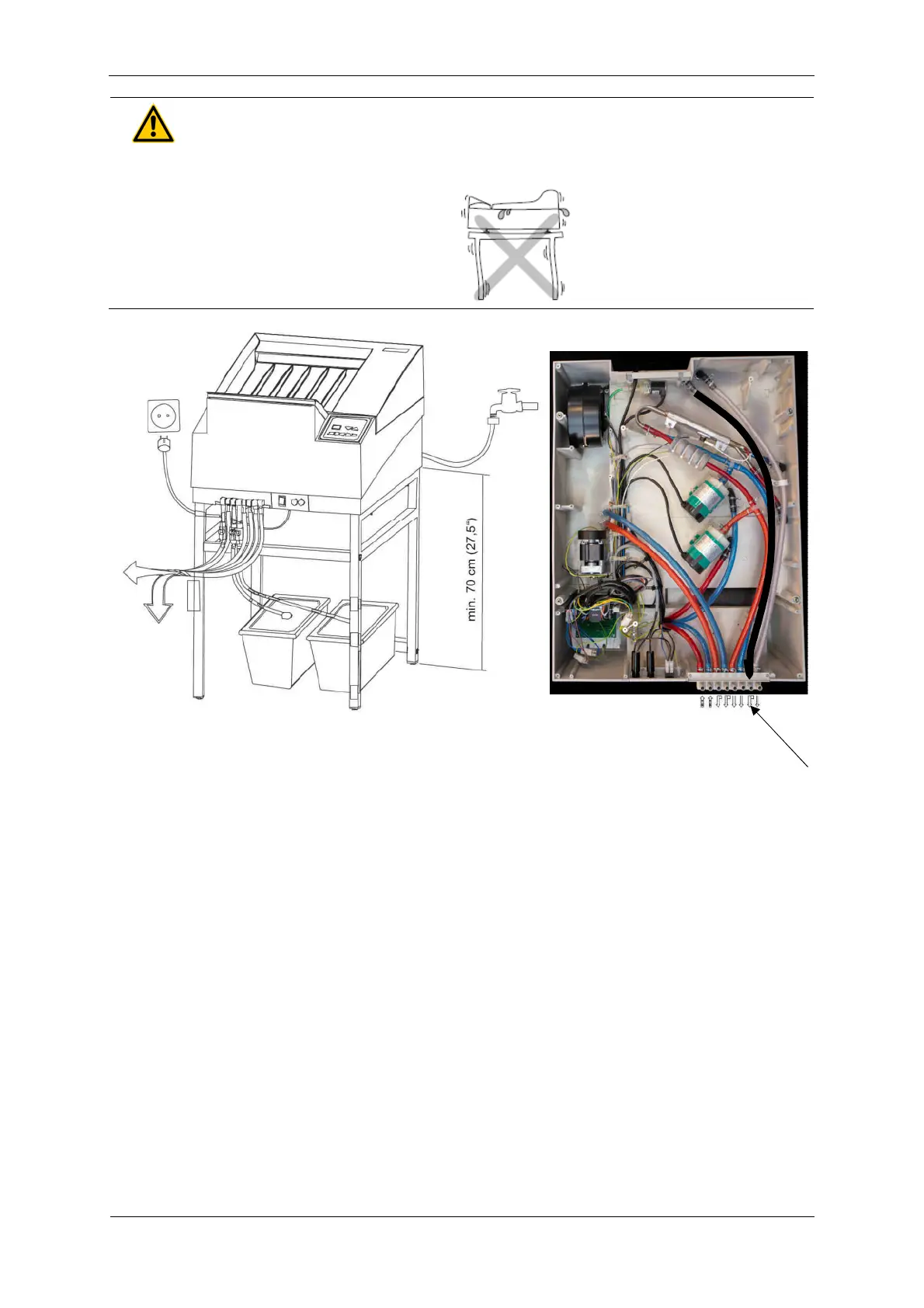

There are two options for installation of the water overflow at the front of the unit. Install the pre-
assembled hose in the unit and connect it to the overflow outlet at the unit front. Upon delivery this
outlet connection is a dummy only (see graphics on the top right).
All other hoses (see graphic 3.5.3). Connect the enclosed hoses according to colour system onto the
front of the machine. Put hose clip (enclosed in accessory bag) over hose end, before attaching to
connection. Warm up hose end (with hot water or hot-air fan) and push it onto the respective
connection. Finally push clip over hose and connection.
Cut hoses to required length. Then integrate the stop cocks into the three drainage hoses in such a
position, that they are easy to reach.
Connect the suction pipes to the hose ends for the replenishment tanks using hose clips. Put suction
pipes through cover opening into respective replenishment tanks and snap them in.
and
collection
containers
