Pulsar ACCOLADE 2 LRF User Manual

Enter the Main Menu
1.
Enter the main menu with a long press of the ?enu (3) button.
2.
Press the UP (2)/DOWN (5) buttons to switch between the menu options.
3.
Enter a menu option with a brief press of the ?enu (3) button.
4.
Exit the menu with a long press of the ?enu (3) button.
5.
Automatic exit takes place in 10 sec of inactivity (buttons are not pressed).

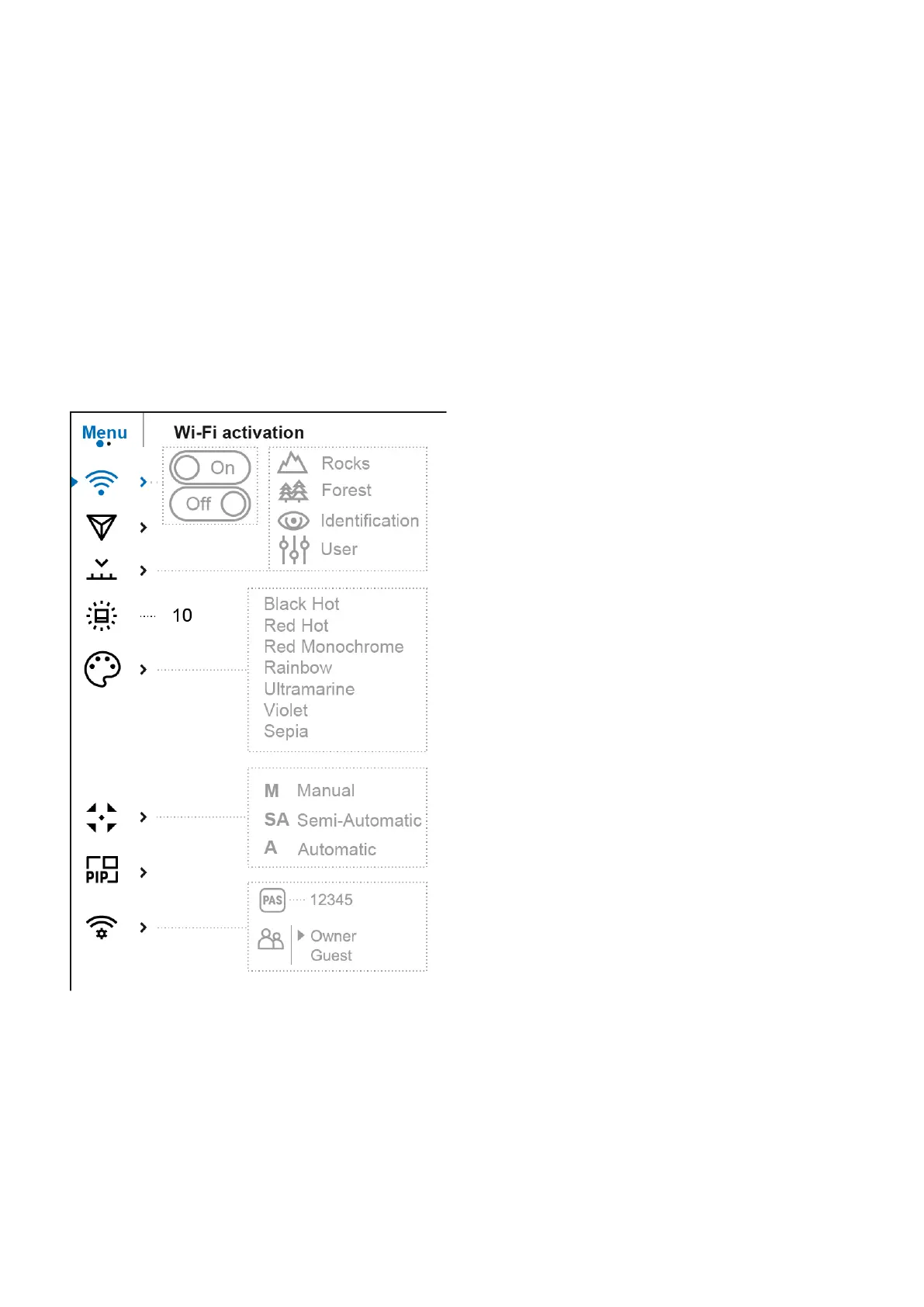

General View of the Menu
Tab 1
Tab 2

Pulsar ACCOLADE 2 LRF Specifications

General

Objective Lens Diameter	50 mm
Detection Range	1800 m
Sensor Resolution	640x480 pixels
Display Type	AMOLED
Pixel Pitch	17 µm
Frame Rate	50 Hz
Laser Rangefinder Range	1000 m
Protection level	IPX7
Dimensions	164x130x64 mm
Waterproof	Yes
Fogproof	Yes
Weight	0.7 kg
Display Resolution	640x480 pixels
Operating Temperature	-25 … +50 °C
Battery Type	Li-Ion Battery Pack
