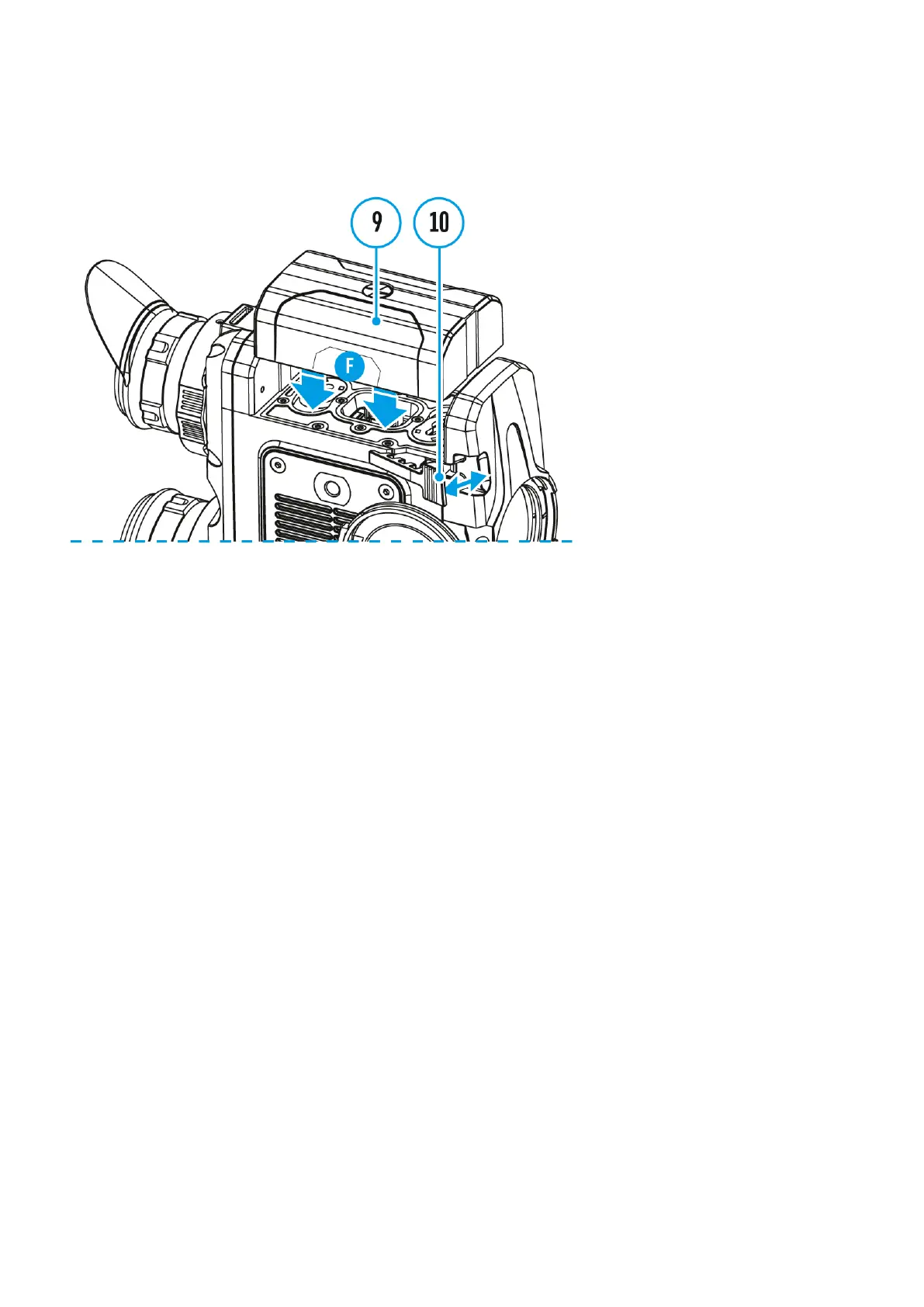

Battery Installation
1.
Lift the lever (10).
2.
Install the battery (9) all the way into the dedicated slot on the device housing so that
element F appears from below.
3.
Fix the battery by clicking the lever (10).

Table of Contents

Other manuals for Pulsar ACCOLADE 2 LRF

Preview: Quick Start Guide
Quick Start Guide36 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pulsar ACCOLADE 2 LRF and is the answer not in the manual?

Pulsar ACCOLADE 2 LRF Specifications

General IconGeneral
Objective Lens Diameter50 mm
Detection Range1800 m
Sensor Resolution640x480 pixels
Display TypeAMOLED
Pixel Pitch17 µm
Frame Rate50 Hz
Laser Rangefinder Range1000 m
Protection levelIPX7
Dimensions164x130x64 mm
WaterproofYes
FogproofYes
Weight0.7 kg
Display Resolution640x480 pixels
Operating Temperature-25 … +50 °C
Battery TypeLi-Ion Battery Pack
