Page 13

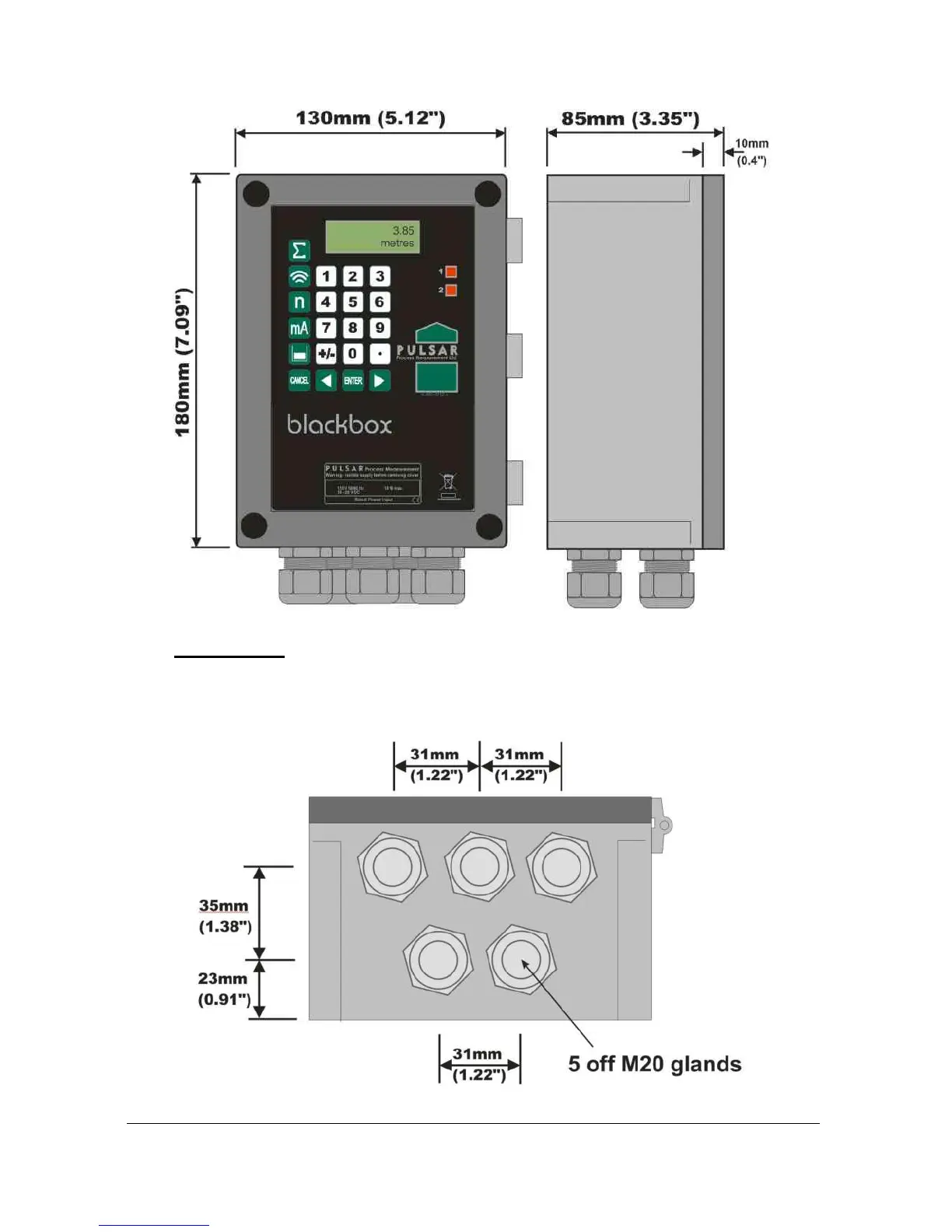

The full dimensions of the enclosure are as shown below.
Cable Entry
There are 5 x 20mm (0.79") cable glands, suitable for 6 – 12mm (0.24" – 0.63")
cables, fitted to the base of the fitted to the base of the blackbox enclosure.
