Page 61
Volume (Optional)
Only available on blackbox 130D, fitted with optional LCD display and
integral keypad and provides a variety of volume calculation features, with
11 pre-programmed vessel shapes. See Vessel Shape (P600) for more
information. For each vessel, you will need to know the dimensions (P601-
603) in Measurement Units (P104) which are required to calculate the
volume (P604) which will be displayed in the selected Volume Units (P605).
If your vessel shape does not correspond with any of the pre-programmed
vessel shapes, then you can use the universal calculations. For this you will
need a level/volume graph or chart provided by the vessel manufacturer or
you can create one based on the dimensions of the vessel. You can enter up
to 32 pairs of breakpoints, and the more you enter, the greater accuracy of the
volume calculation will be.
Conversion
P600 Vessel Shape
This parameter determines which vessel shape is used when utilising
“Volume Conversion”.
The choices are as shown in the table below, along with the dimensions that
are required to be entered (P601-P603).

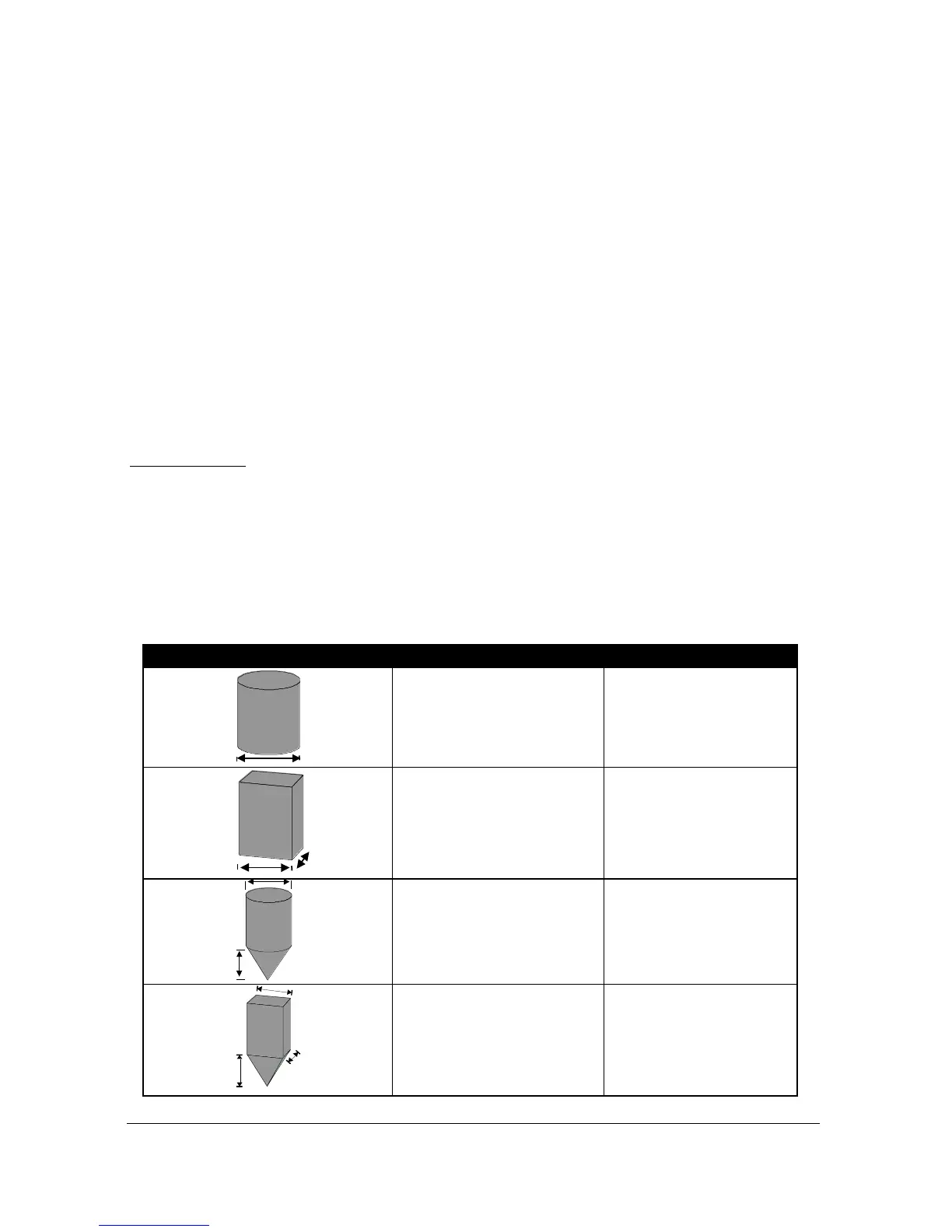

Vessel Shape
P600 Value
Dimensions
Required
P600=0 Cylindrical
Flat base (Default)
Cylinder diameter
P600=1=Rectangular
Flat base
Width and Breadth
P600=2 Cylindrical
Cone base
Cylinder diameter
and height of
bottom
P600=3 Rectangular
Pyramid base
Width and Breadth
of rectangular
section and height
of bottom
