Pulsar ULTRA 5 Service Manual
4
of 1
of 1 rating
62 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Page
5

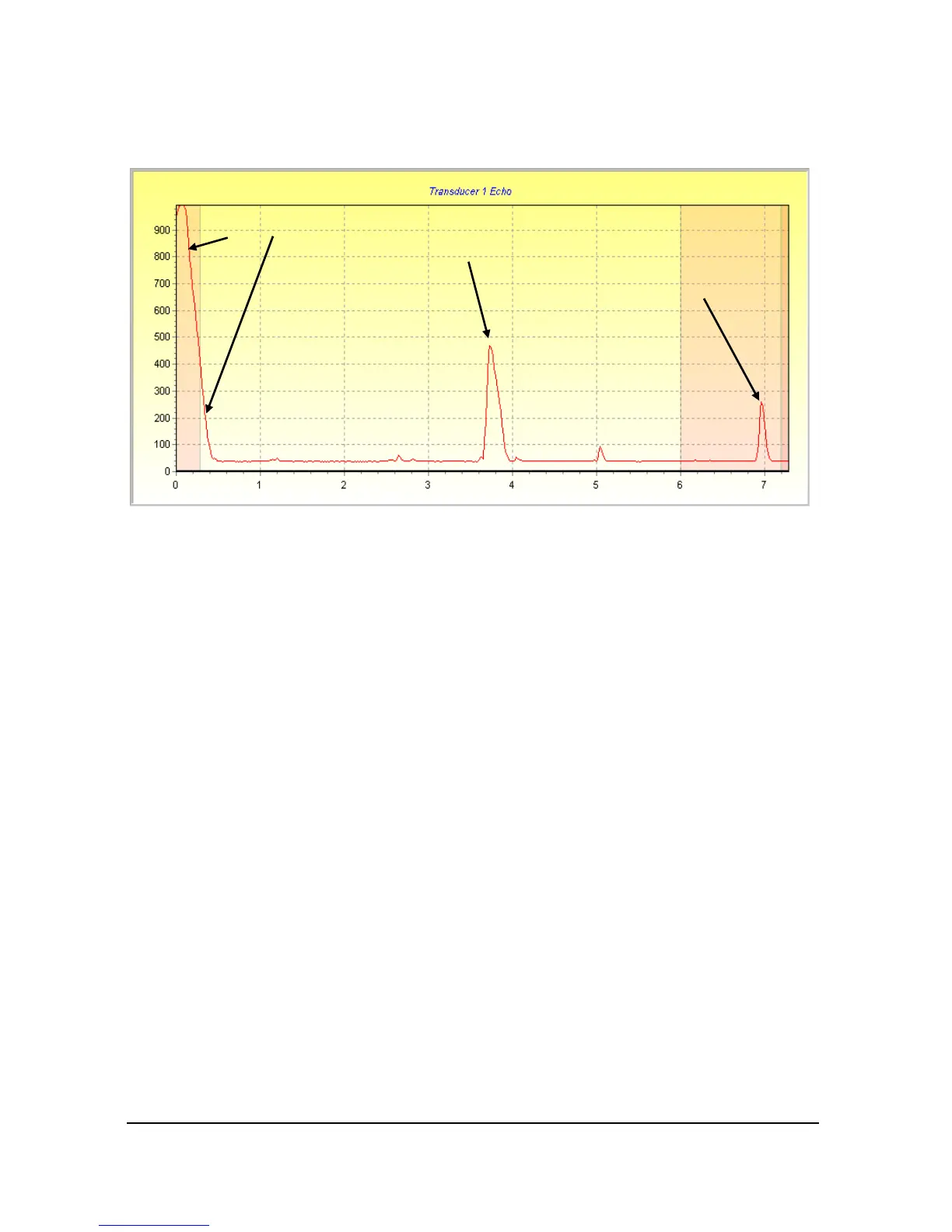

Fig 3: Describing
ringdown and echoes
.
The red
trace is the echo signal return, the hor
izontal scale is d
istan
ce to target i
n
metres and the verti
cal scale is signal stre
ngth return in millivolts. T
he echo
above is app
rox 3.8m from the transducer and
has si
gnal strength of 480
mv
.
Ringdown
Echo
Secondary
Echo
10
12
Table of Contents
Table of Contents
5
About Service Parameters
7
DATEM Overview
9
Transducer 1 Parameters
13
P020 Set DATEM 1
13
P021 Set Dist 1
15
P024 Num Pings 1
16
Transducer 2 Parameters
17
P030 Set DATEM 2
17
P031 Set Dist 2
17
P034 Num Pings 2
17
Echo Control
19
P040 Fast Response
19
P041 Ringdown Loss
20
P042 Display Resolution
20
P043 Breakpoint
20
P044 Slope
21
P045 Num Averages
21
P047 Outside Count
21
P048 Gate Lock
22
P049 Scale First
22
Draw / Inflow
23
P150 Pump Inflow
23
P151 Pump 1 Initial Draw
23
DATEM Flags
25
P064 Near Band
25
P065 Near Jump
25
P067 Use First (Software Revisions Prior to 3.6.0)
25
P067 Choose Peak (Software Revisions from 3.6.0)
26
Best
26
Largest
26
First
26
P071 Update DATEM
26
P078 Use Temp
27
P079 Use Gate
27
P080 Lost Lock
27
Ultra Sound
29
P081 Near Loss
29
P082 Far Loss
29
P083 Loss Change
29
P084 Jump Cutoff (Software Revisions from 3.6.0 to 6.3.7)
30
P084 MID Loss (from Software Revisions 6.8.?)
30
Loss Limit Values
30
Debug Level
31
P086 Ping Delay (from Software Revision 6.4.1)
31
P087 Fail Time 2
31
P088 Hard Default
31
P099 System Type (from Software Revision 6.9.0)
32
DATEM Custom
33
P109 Start Point
33
P110 Middle (MV)
33
P111 End Point
34
P112 Min DATEM
34
Other Useful Parameters
35
Tariff Guard Control
35
P113 Rate Sampling (from Soft Revision 4.6.3.1 (5.7.8 Released))
35
P114 Array Count
35
P115 Rate Validate
35
Comms / Logging Board
36
P141 Serial to Comms Board
36
P142 Reset Comms Board
36
P358 Log Time
36
Pump Control
37
P194 - P199 Pumping Rate
37
P359 Maximum Pumps
37
P361 - P362 Max Pumps on (Groups 1 & 2) (from S/W Ver. 6.7.3)
37
Totalisers
38
P798 Max Flow Cut off (from Soft Revision 6.4.2 (6.7.3 Released))
38
Display
38
P817 Auxiliary Display Offset (from Soft Rev 6.5 (6.7.3 Released))
38
Temperature Calibration
39
P855 - P856 External Temp Scale (from Soft Rev 6.6.9)
39
P857 - P858 Temp Cal (Transducer 1 - Transducer 2)
39
P859 Temp Average
39
Sound Velocity Calibration
40
P861 - P862 Calibrate Distance (Xdr1 - Xdr2) (from S/W Rev 6.8.0)
40
Filters
40
P102 Material
40
P880 Gate Mode
40
P881 Fixed Distance
41
P882 Process Filter (from Software Revision 6.6 (6.7.3 Released))
42
P884 Peak Percentage
43
Reform
44
P050 = Reform
44
P051 = Attack Coefficient
44
P052 = Release Coefficient
44
P905 & P915 Sensitivity (Xd1 & Xd2)
45
P906 & P916 Side Clearance (Xd1 & Xd2)
46
Remote Communicator
47
P063 Kiss Required (from Software Revision 6.9.2)
47
P089 Kiss Enable (from Software Revision 6.4.1 to 6.9.1)
47
Applications
48
Application 1 Enclosed Tank
49
Application 2 Turbulent Liquid Surface
51
Application 3 Fast Moving Solids
53
Application 4 Silo Level (Solids)
55
Fault Finding
59
