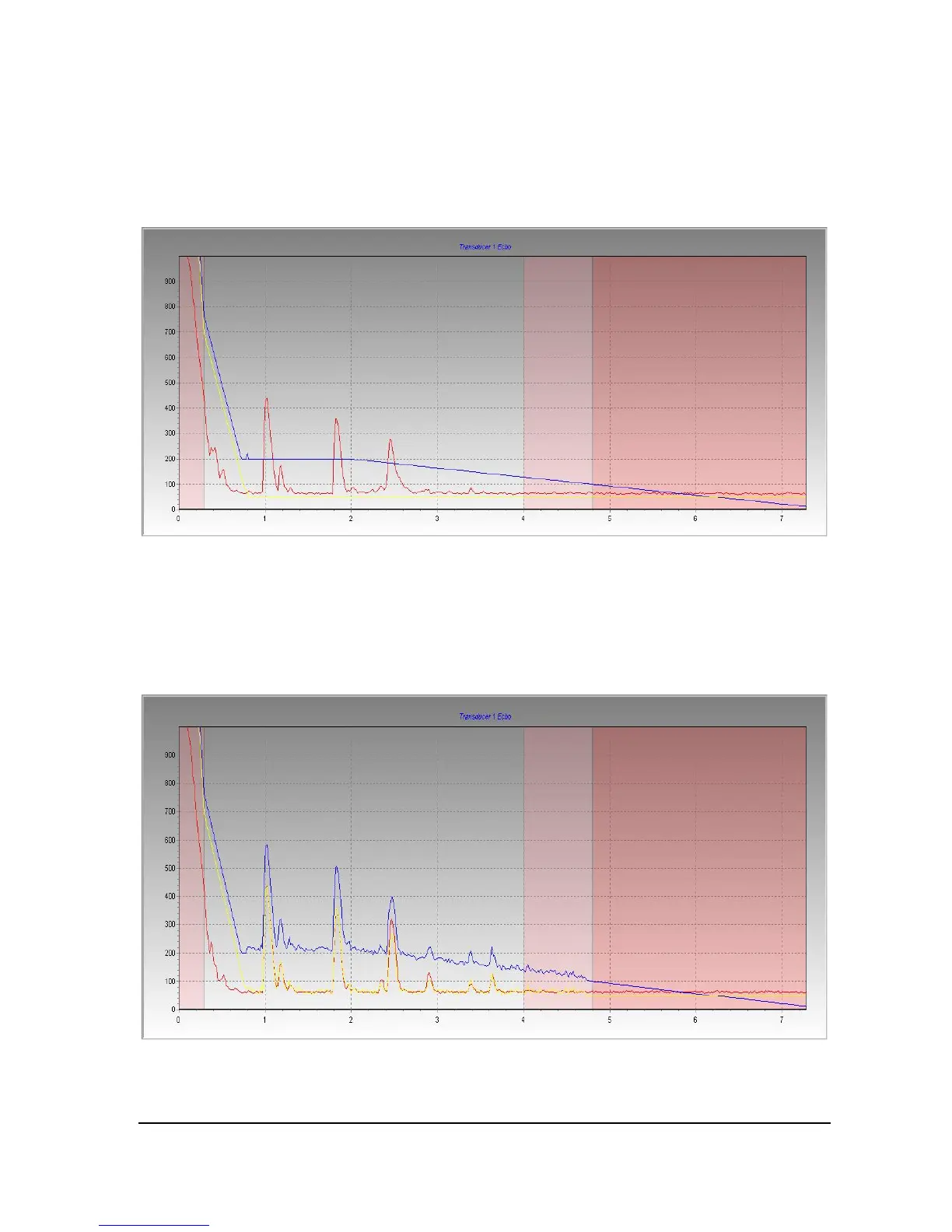

The echo profiles below show the effect of Capture, the ‘Gate’ has been removed
for clarity.
Fig. 1.
Empty tank, the unit will pick up on the first echo after initial switch on.
Fig. 2.
Empty tank after a Capture. Unit will show Loss of Echo.
