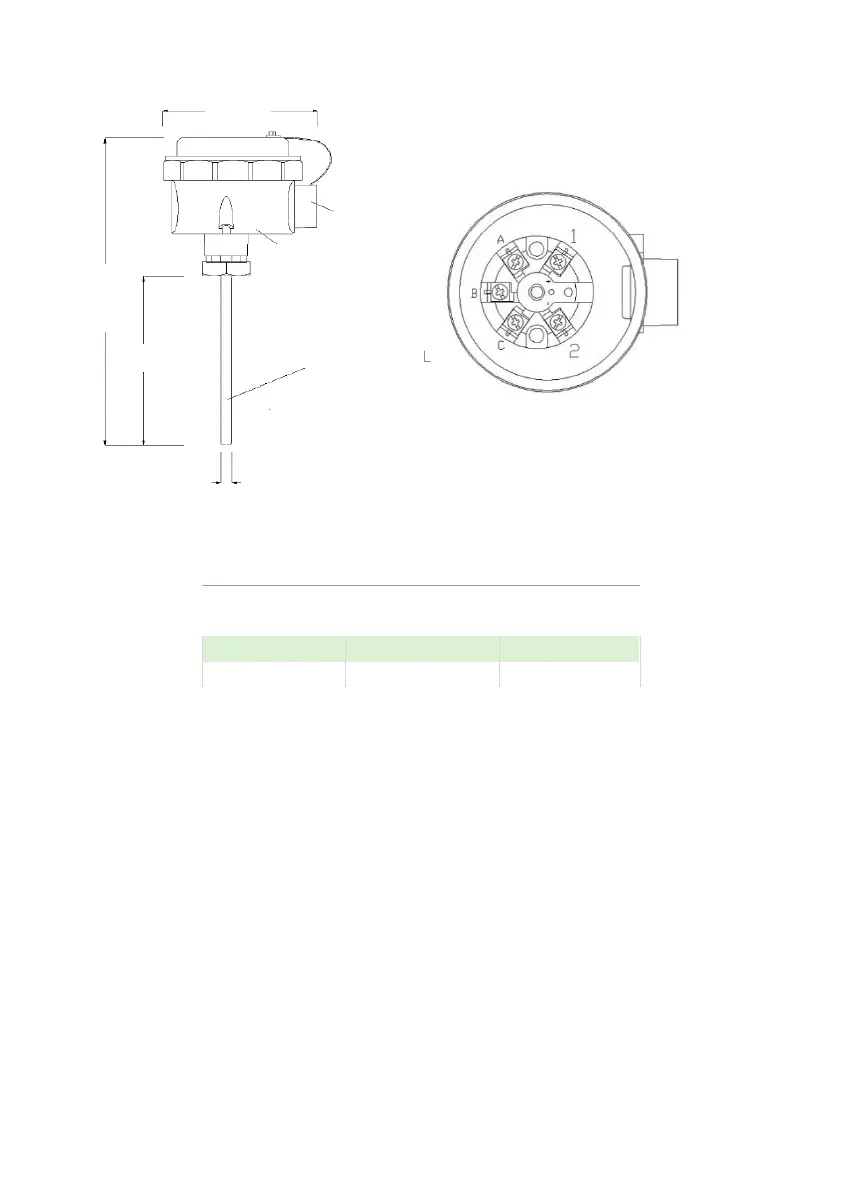

Temp Source (P852), should be set to option 4 or 5 depending on the
sensor range, set 4 for type A and 5 for type B (see above), the range is
specified on the label of the sensor.
This feature is available as an option only, please consult Pulsar for further
details.
Digital Inputs
Where the Zenith is required to provide power for a Device Input the
appropriate Digital Input should be wired between the 24VDC supply
terminal and the IN terminal. (TOTAL maximum current available, for all
seven digital inputs, from the 24VDC supply is 24mA). When Device Inputs
are self-powered, connection of the device should be made between the
Common terminal and the IN terminal. (Min Input voltage 4.5VDC, and
Maximum Input voltage 30VDC with a maximum current of 3mA).
