ZENITH 140
INSTRU
CTION MANUAL
58

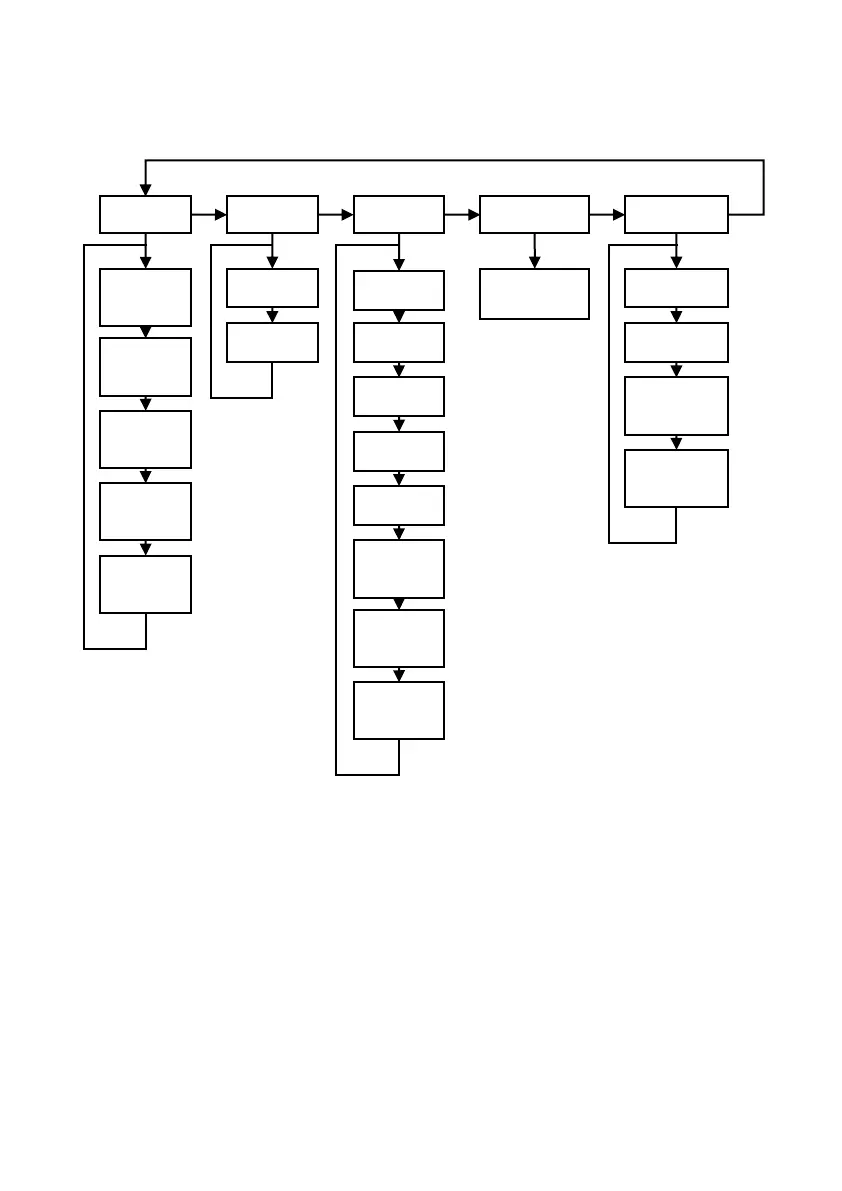

Display Menu
Options
Fail Safe
Auxiliary
Bargraph
P802
Display
Offset
P801
Decimal
Places
P804
Display
Conversion
P805
Display
Source
P808
Fail Mode
P809
Fail Time
P810
Units
P811
Alarms
P812
Pumps
P813
Control
P814
Misc.
P815
Auxiliary
Source
P816
Totaliser
(R)
P817
Auxiliary
Offset
Totaliser
P829
Bargraph
P820
Totaliser
P821
Totaliser (R)
P822
Totaliser
Decimal
P823
Totaliser
Multiplier
P800
Display
Units
57
59
Table of Contents
Default Chapter
4
Table of Contents
4
Chapter 1: Start here
9
About this Manual
9
About the Zenith 140
10
Functional Description
10
Product Specification
12
EU Certificate of Conformity
14
Chapter 2 Zenith 140 Installation
15
Unpacking
15
Power Supply Requirements
15
Location
16
Dimensions
17
Fascia Mount
17
Terminal Connection Details
19
Power
20
Transducer
20
Voltage Selector and Fuse Location
23
Preparation for Operation
25
Maintenance
25
Chapter 3 How to Use Your Zenith 140
26
Operating the Controls
26
Run Mode
27
Program Mode
28
How to Access Program Mode
28
Hot Keys
29
Menu Keys
30
Numeric Keys
30
Using the Menu System
31
Directly Editing Parameters
32
Test Mode
33
Using the Serial Interface
34
Parameter Defaults
36
Chapter 4 Quick Setup Guide
37
Enter Program Mode
37
Choose Quick Setup
37
Quick Setup
39
Example 1 Level Monitoring with Alarms
44
Example 2 Sump Control (Pump Down)
46
Chapter 5 Parameter Guide
48
Menu System
48
Top Level Menu
48
Application Menu
49
Relays Menu
50
Pump "Advanced" Menu
51
Digital Inputs Menu
52
Float Switch Menu
53
Tariff Guard Menu
54
Data Logs Menu
55
Pumped Volume Menu
56
Efficiency Menu
57
Display Menu
58
Ma Output Menu
59
Compensation Menu
59
Stability Menu
60
Echo Processing Menu
60
System Menu
61
Device Comm Menu
62
Test Menu
63
Application Parameters
64
Operation
64
Dimensions
66
Ma Input
68
Relay Parameters
70
Alarms
72
Pumps
79
Control
83
Miscellaneous
88
Pump by Time
89
Common Relay Parameters
92
Pump "Advanced" Parameters
94
Pump Run on
94
Starting
94
Stopping
95
Pump Exercising
95
Wall Cling
96
Storm
96
Digital Inputs
97
Digital Input Parameters
103
Digital Input
105
Float Switch (FS) Backup
107
Digital Input
108
Tariff Guard
109
Data Log Parameters
112
Totaliser Audits
112
Temperature
112
Pump Logs
113
Pumped Volume
114
Volume
116
Conversion
116
Breakpoints
121
Tables
122
Pump Efficiency
123
Display Parameters
126
Options
126
Failsafe
127
Auxiliary
128
Totaliser
130
Ma Output Parameters
133
Range
133
Operation
134
Setpoint
134
Ma Limits
135
Ma Trim
135
Ma Failsafe
136
Compensation Parameters
137
Offset
137
Temperature
137
Velocity
138
Stability Parameters
139
Damping
139
Indicator
139
Rate
139
Filters
140
Echo Processing Parameters
141
Transducer 1 Status
141
Transducer 2 Status
142
DATEM Parameters
143
System Parameters
144
Passcode
144
Backup
144
System Information
145
Date & Time
146
LED Colour
146
Watchdog
147
Daylight Saving Time
148
Device Comm
152
RS232 Set up
152
RS 485 Set up
152
Remote Alarm
153
Test Parameters
155
Simulation
155
Hardware
156
Chapter 6 Troubleshooting
158
Chapter 7 Disposal
159
Notes
160
