4.5.1 Sensor (to setup optional external motion sensors)
Sensor includes three sub menus: basic, alarm handling and schedule.
① Basic
Step 1: Enter into system configurationalarm configurationsensorbasic; refer to Fig 4-19:

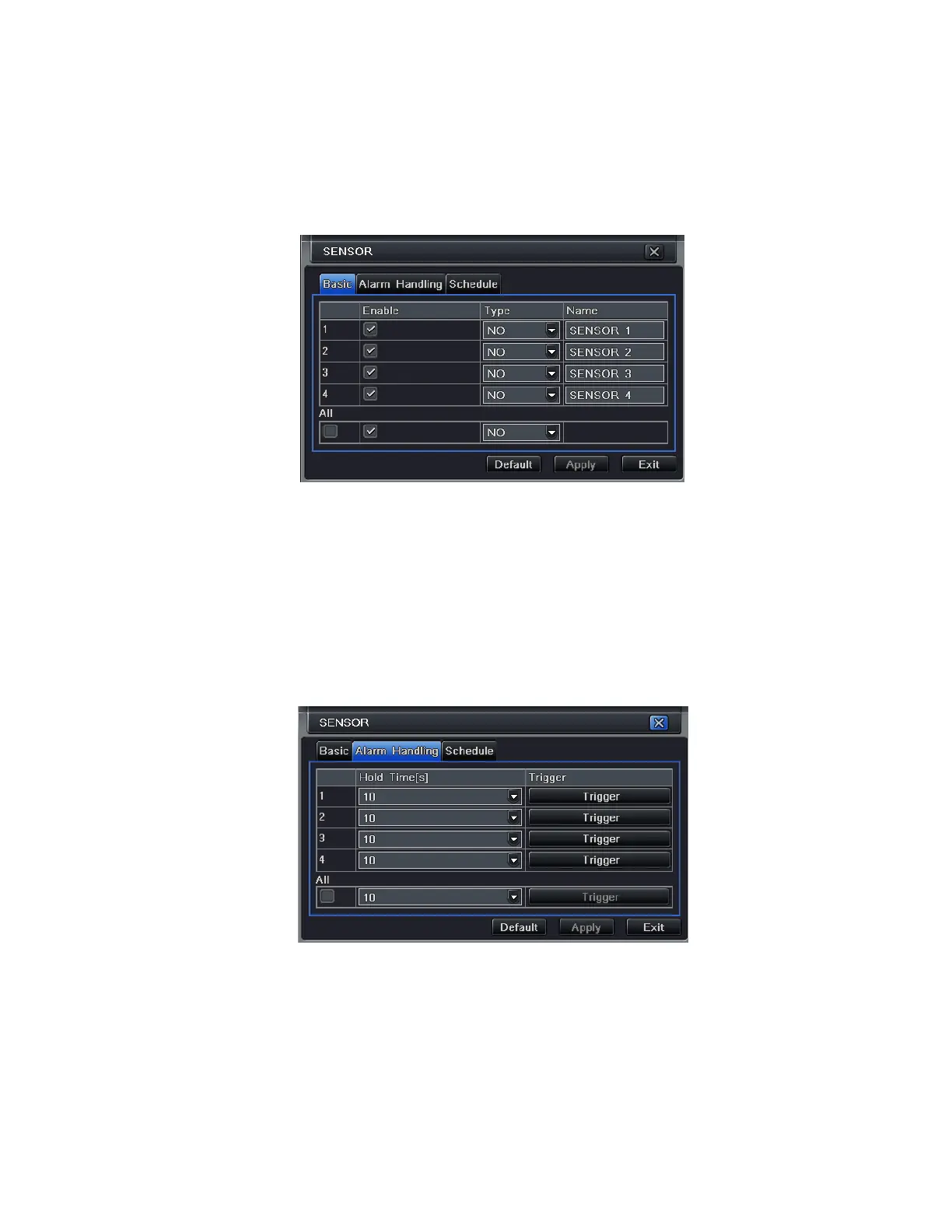

Fig 4-19 Alarm Configuration-Sensor Basic
Step 2: Enable sensor alarm, set the alarm type according to triggered alarm type. Two options: NO (normally open)
and NC (normally closed).
Step 3: User can setup all channels with same parameters, checkmark “all”, then to do relevant setup.
Step 4: Click “default” button to restore default setting; click “apply” button to save the setting; click “exit” button to
exit current interface.
② Alarm Handling
Step 1: Enter into system configurationalarm configurationsensoralarm handling; refer to Fig 4-20:
Fig 4-20 Alarm Configuration-Sensor-Alarm Handling
Step 2: Select hold time, click Trigger button, and a dialog box will pop-up shown as Fig 4-21:
