44
5.2 Event Search
Step 1: Enter into Search configurationevent search; refer to Fig 5-2:

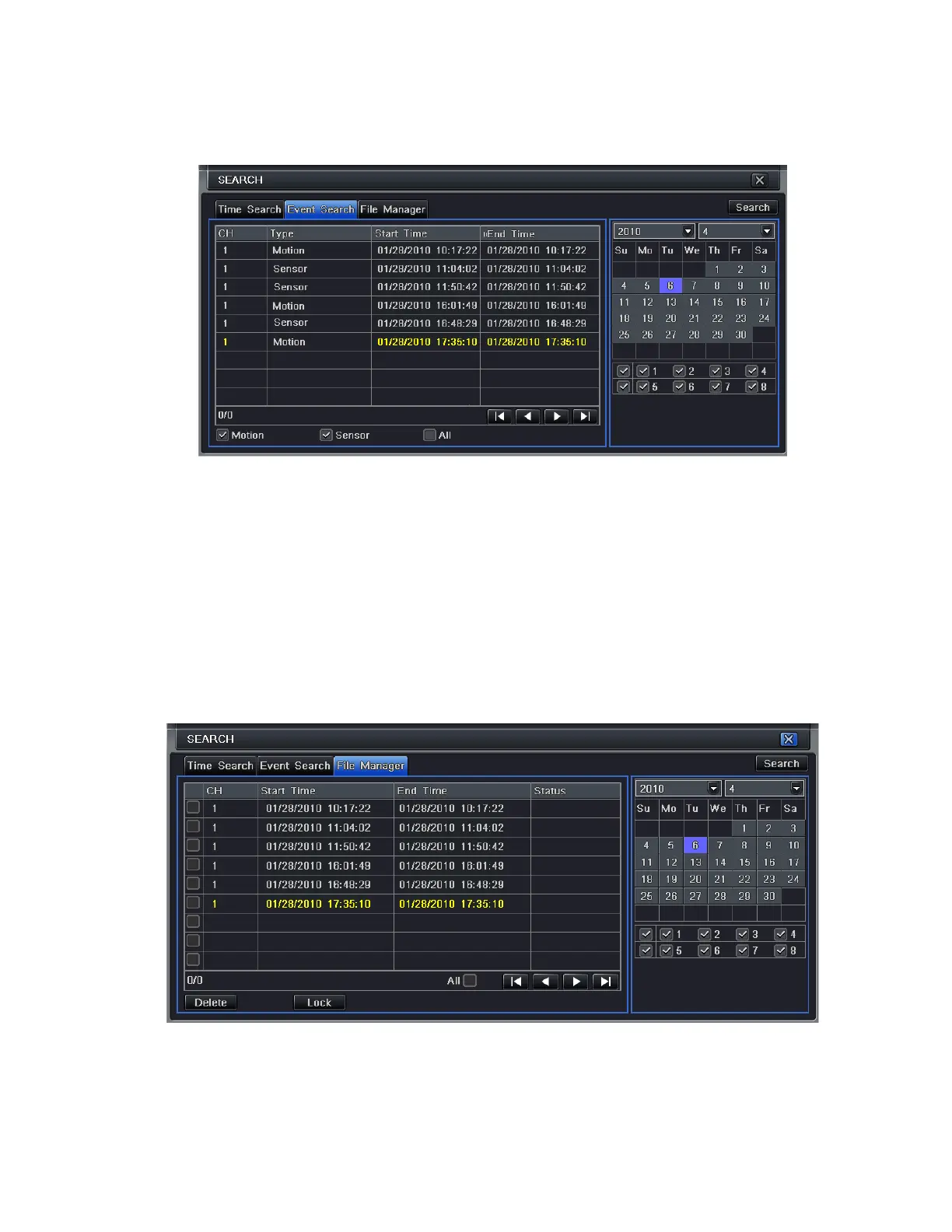

Fig 5-2 Search Configuration-Event Search
Step 2: Click Search button, the searched event information will be displayed in the event list box. Select date,
channel, checkmark Motion, Sensor or All accordingly.
Step 3: Double click the record file you would like to playback.
Note: when the monitor resolution is VGA 800*600, the event search interface will display a hide button,
click this button, the whole interface will be expanded.
5.3 File Manager
Step 1: Enter into Search configurationfile manager; refer to Fig 5-3:
Fig 5-3 Search Configuration-File Manager
Step 2: Click Search button, the searched files will be displayed in the file list box, user can select date, channels
accordingly.
① Lock: check a file, click Lock button to lock this file, after that, that file will not be deleted or covered
