2.3 Front Panel Descriptions

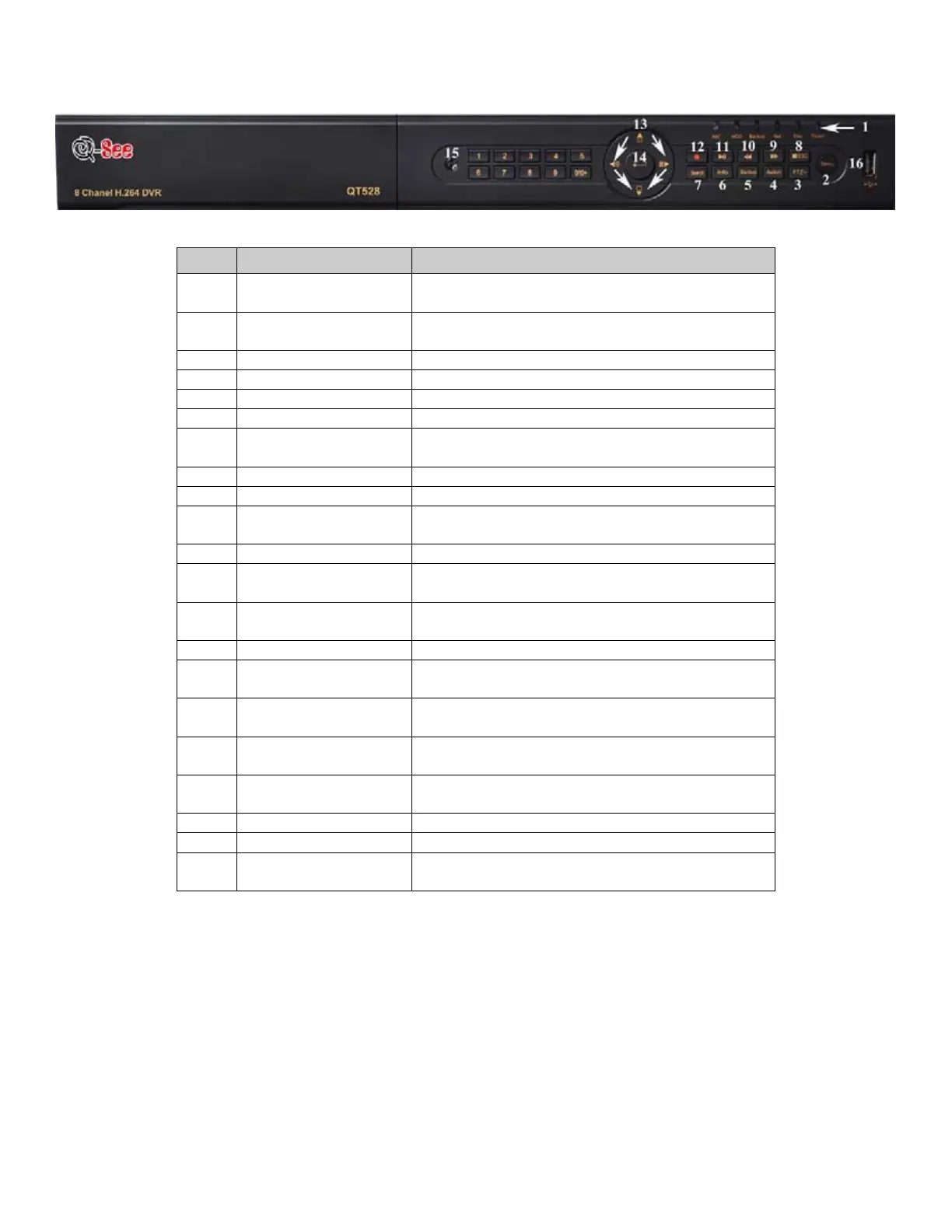

Fig 2.5 Front Panel
Item
Name Description
1
Power Status
Power indicator, when connection , the light is
blue
1
HDD Status
When HDD is writing and reading , the light is
blue
1
Network Status
When access to network , the light is blue
1
Backup Status
When backup files and data, the light is blue
1
Play Status
When playing video, the light is blue
1
REC Status
When recording, the light is blue
2
MENU/+
1. Enter menu in live
2. Increase the value in setup
3
P.T.Z.
Enter PTZ mode in live
4
Audio
Live or Mute Audio
5
BACKUP/-
1. Decrease the value in setup
2. Enter backup mode in live
6
Info
System Information
7
SEARCH/ZOOM
1. Enter search mode
2. ZOOM function enables at PTZ mode.
8
STOP/ESC
1. Quit play mode
2. Exit the current interface or status
9
FF
Fast Forward
10
REVSPEED
1. Reverse
2. SPEED function enables at PTZ mode
11
STOP/Pause
1. Quit play mode
2. Pause Playback
12
RECORD/FOCUS
1. Record manually
2. FOCUS function enables at PTZ mode.
13
Direction/Multi-screen
1. Change direction to select items.
2. Change screen display to 1/4/9/16 mode.
14
Enter button
Confirm selection
15
IR Sensor
For remote controller
16
USB port
To connect external USB devices like USB
flash, USB HDD for backup or update firmware.
