29
① Motion

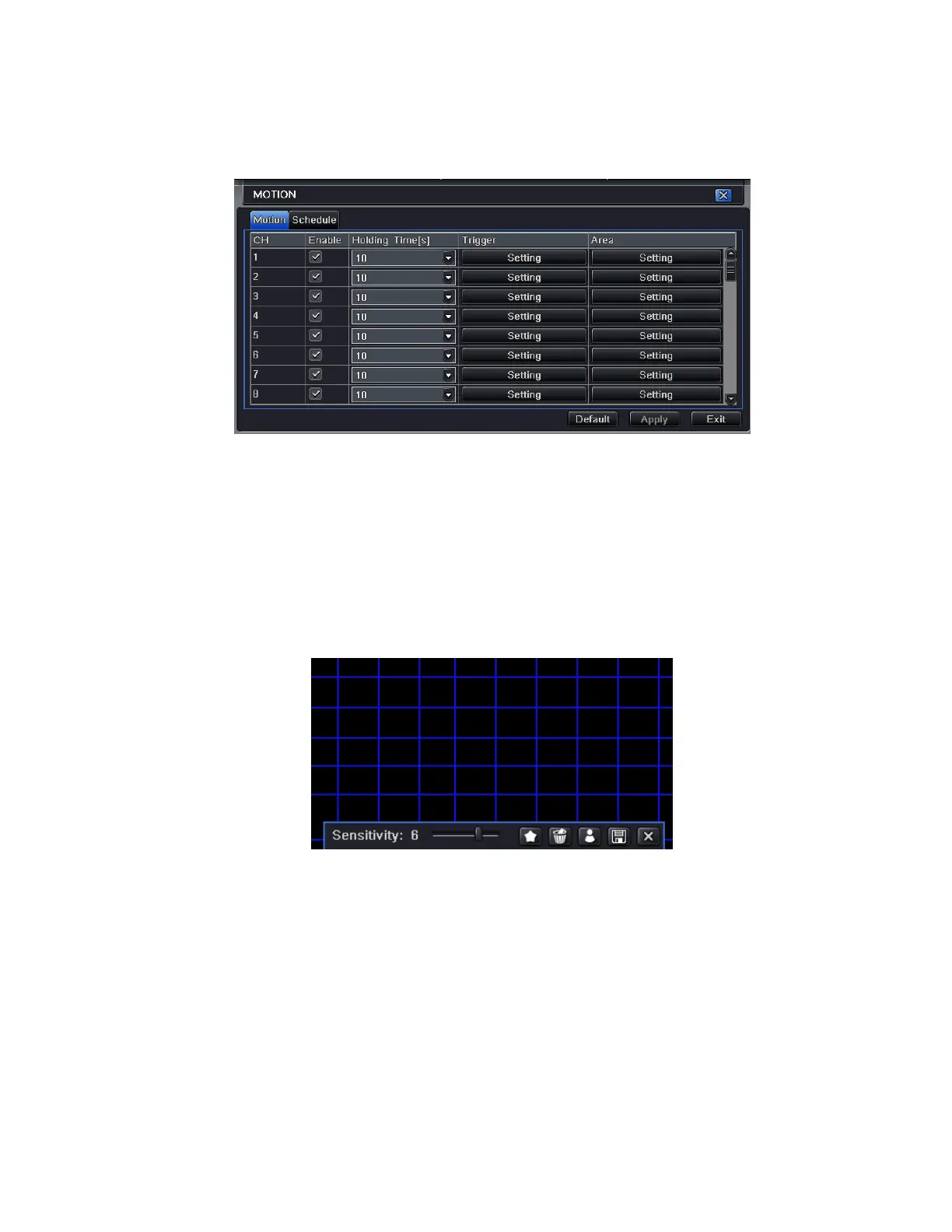

Step 1: Enter into system configurationalarm configurationmotion; refer to Fig 4-23:
Fig 4-23 Alarm Configuration-Motion
Step 2: Enable motion alarm, set alarm hold time which means time interval between two consecutive motion events.
If there is other motion detected during the interval period which is considered continuous movement; it will be
included in the current file, otherwise, it will be considered the start of a new motion file. Click Trigger button, a dialog
box will pop-up:
Step 3: The setup steps of motion trigger are similar to alarm handling; user can refer to Chapter 4.5.1 Sensor
alarm handling for more details.
Step 4: Click Area button, a dialog box will pop-up shown as Fig 4-24:
Fig 4-24 Motion-Area
Step 5: In the Area interface, user can drag slide bar to set the sensitivity value (1-8), the default value is 4. The
higher the value the higher sensitivity you get. Since the sensitivity is influenced by color and time (day or night),
