68

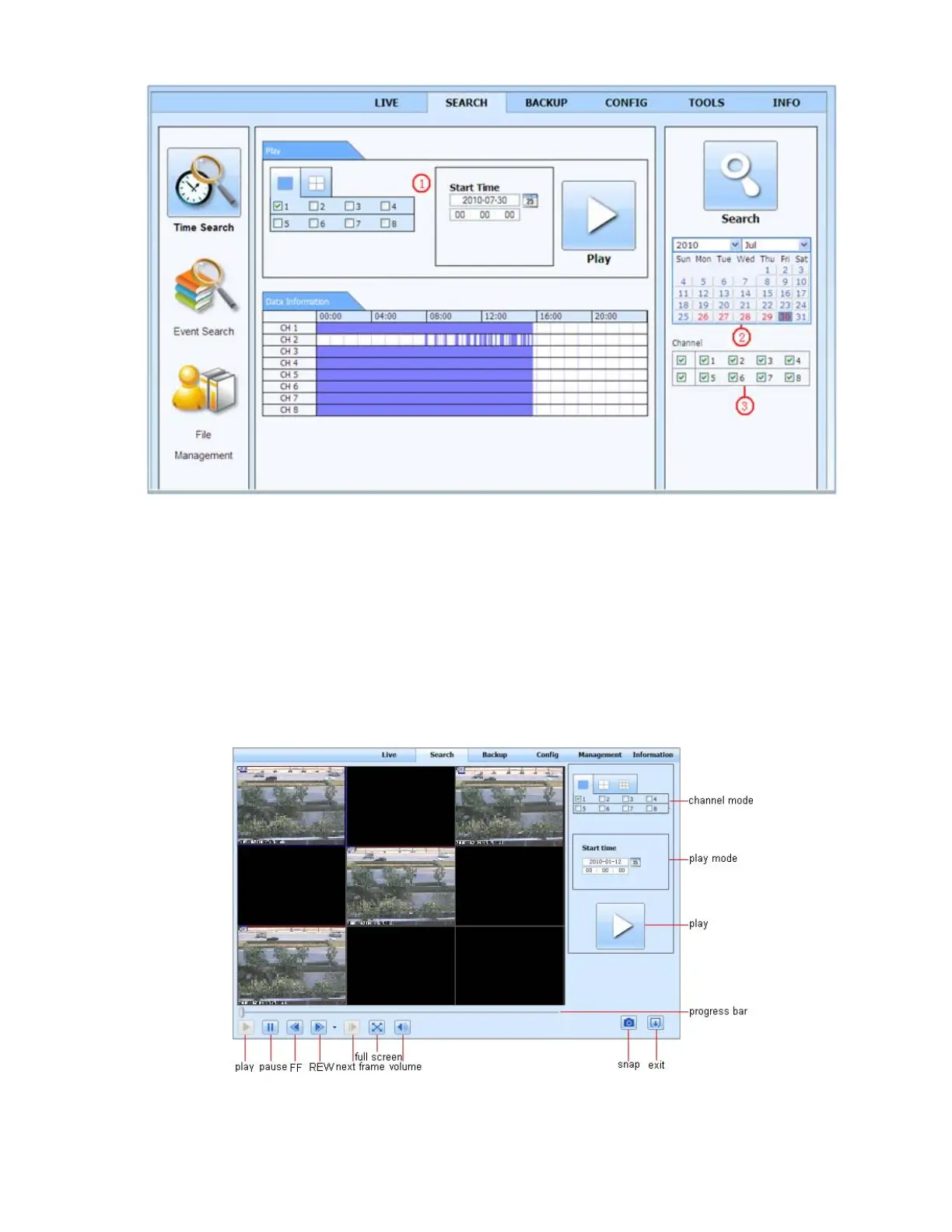

Fig 7-27 Time Search Interface
Step 2: Click “Search” button. The record data will be displayed in the data information list box. The highlight
date in the area marked
means there is recorded data for that channel at that time. Select the record
channels in the area marked
.
Step 3: User can set the data playing time and display mode in area
as required
Step 4: Select an item from the data information list box, click “play” button to playback
Step 5: Click the relevant buttons in the interface; user can do operations such as: FF, pause, change channel
mode, research, etc. Refer to Fig 7-28:
Fig 7-28 Time Search Playback
