5.1 Connectors
Mainboard
Connectors
See the following figure and table for information on mainboard connectors.

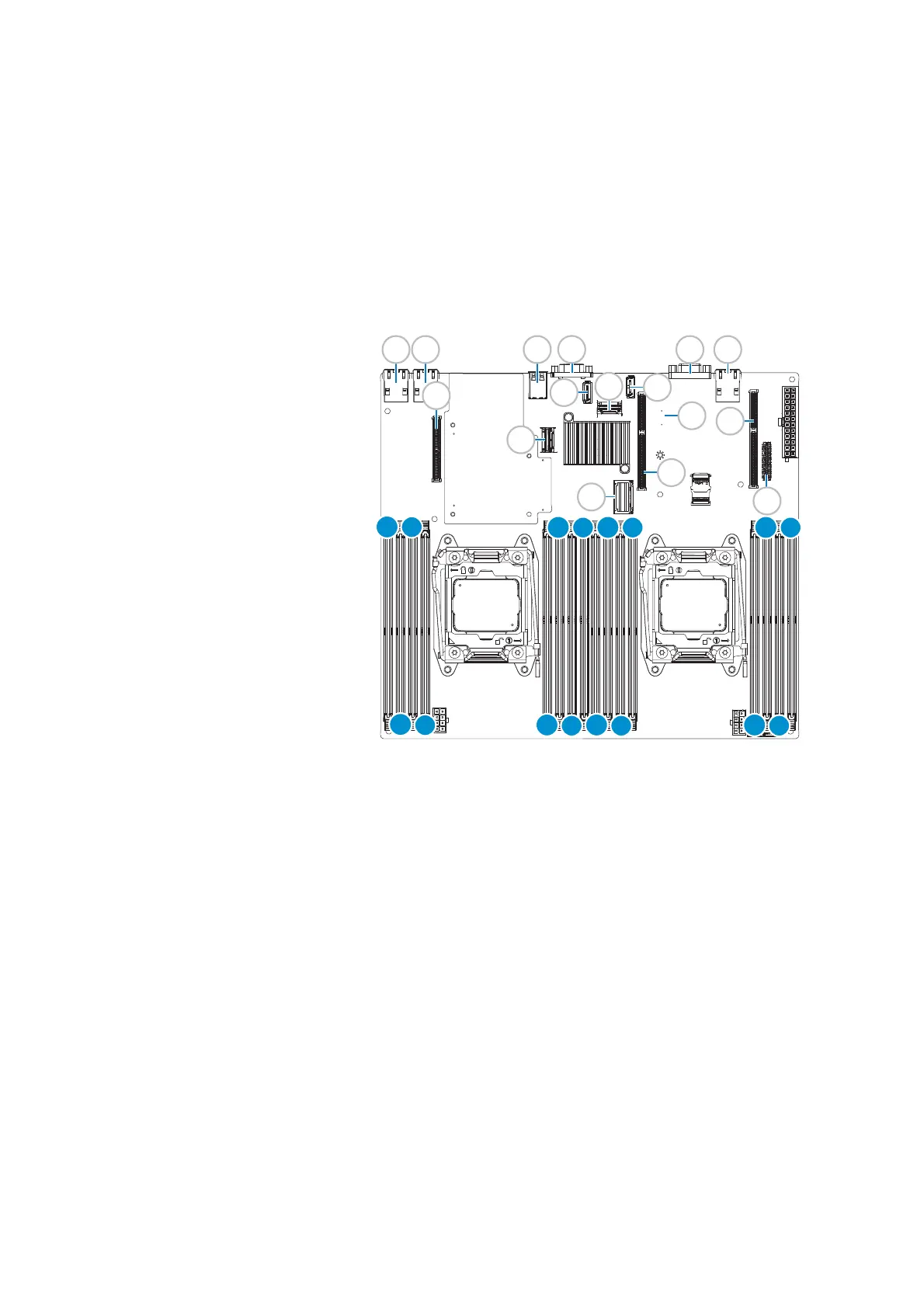

Figure 5-1. Mainboard Connectors
1. NIC2 (1G)
2. NIC1 (1G)
3. USB 3.0 x 2
4. COM port
5. VGA port
6. Management Port (1G)
7. Riser slot1 (PCIe x8)
8. Mini-SAS (SATA 2-5)
9. SATA 0
10. Mini-SAS (sSATA 0-3)
11. Mini-SAS HD (PCIe x8)
12. SATA 1
13. Riser slot2 (PCIe x 16)
14. TPM socket
15. Riser slot3 (PCIe x16)
16. Front panel connector
C0
C1
D0
D1
F0
F1
E0
E1
G1
G0
H1
H0
B0
B1
A0
A1
1 2 3
4
5
9
8
11
15
14
13
16
12
10
6
7
