INSTALLING HARDWARE INSTALLING A RISER ASSEMBLY
2-25
Installing a Riser Assembly
1. Install the assembly on the chassis and press down firmly to connect it to the main-
board (A).
2. Twist the securing plug (B) and then release to secure the assembly in place.

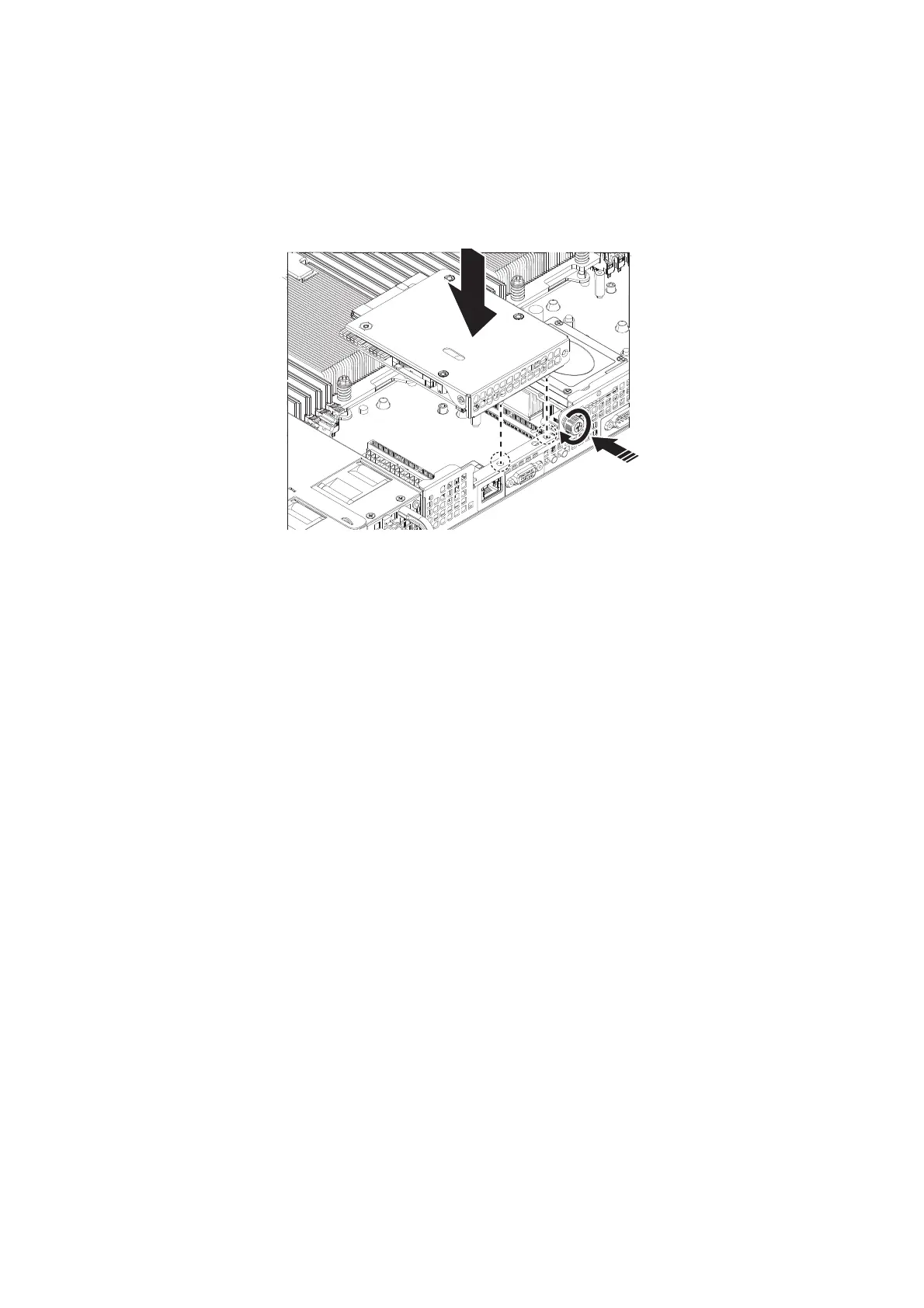

Figure 2-27. Installing the Riser Assembly
3. Install the top cover.
4. Replace the system in the rack to power on.
B
A
