INSTALLING HARDWARE INSTALLING A FAN MODULE
2-15
3. Install the fan module and seat in the chassis.

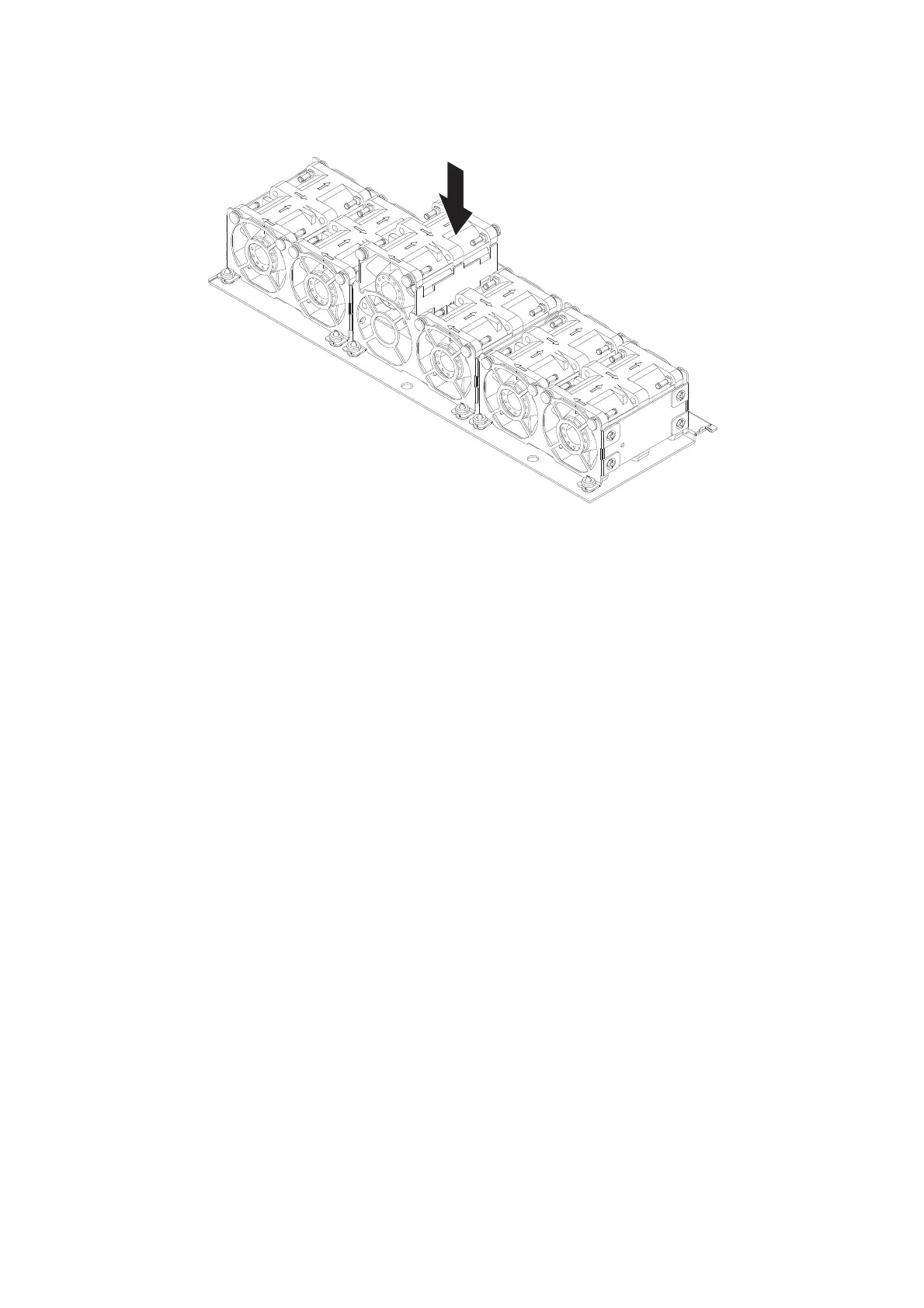

Figure 2-15. Installing a Fan Module
4. Guide the cable through the corresponding opening.
5. Replace the air duct.
6. Replace the chassis top cover.
7. Replace the system in the rack.
