I
NSTALLING
H
ARDWARE
I
NSTALLING
AN
OCP M
EZZANINE
B
OARD
2-30
6.
Secure the OCP assembly to
the chassis with screws.
F

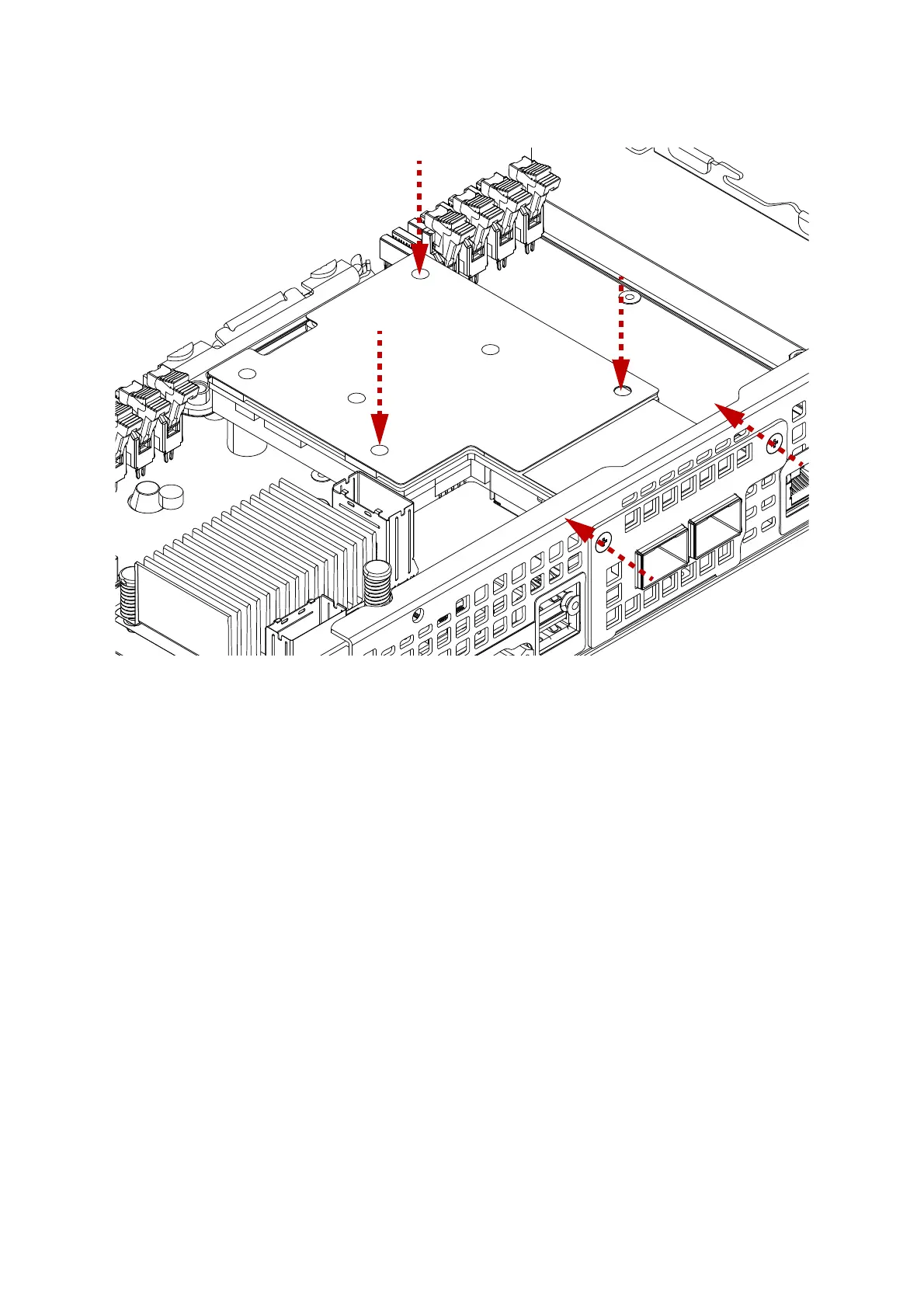

igure 2-32.
I
nstalling the OCP Mezzanine Board
7.
Install the top cover
. See
Installing the T
op Co
ver
on page
2-11
.
8.
Replace the system in
the rack to power on.
54
