Section 5: Technical data
Ten fan units
Dimensions – 3160TSE, 3150THE, 3170THE
035-24059-012 REV-B
LD26942
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
CONTROL PANEL BOTTOM DETAIL
20.7 [0.81]
1177 [46.35]
4” VICTAULIC INLET
4” VICTAULIC OUTLET
4” VICTAULIC
INLET
4” VICTAULIC
OUTLET
5848.3 [230.25]
FRAME LENGTH
5885.7 [231.72]
OVERALL LENGTH
5260.0
[207.08]
2002.8
[78.85]
3154.3
[124.18]
2061.5
[81.16]
1256.1 [49.45]
588.3 [23.16]
822.4 [32.38]
685.7 [27.00]
254.4 [10.02]
1275.7 [50.22]
1085.1
[42.72]
(OPTIONAL HEAT
RECOVERY UNIT)
3” VICTAULIC OUTLET
3” VICTAULIC INLET
FRAME WIDTH
OVERALL WIDTH
2254.4 [88.76]
2242.1 [88.27]
140.8mm OR 288.0mm
[5.54”]-[11.34”] -DIMENTION VARIES BASED
ON CHILLER MODEL SELECTED
FRAME HEIGHT
2248.0 [88.50]
2397.6 [94.39]
136.8 [5.38]
1621.5
[63.84]
1839.5
[72.42]
1753.2
[69.03]
194.6
[7.66]
2077.3 [81.78]
82.4 [3.24]
ORIGIN
2169.2
[85.40]
36.4
[1.43]
15.9mm [5/8”] DIA
MOUNTING HOLES (TYP.)
NOTE:
Placement on a level surface free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airow
patterns and possible diminished performance. Johnson Control’s unit controls will optimize operation without nuisance high-pressure safety
cutouts; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6 ft; rear to wall – 6 ft; control panel to end wall – 4 ft;
top – no obstructions allowed; distance between adjacent units – 10 ft. No more than one adjacent wall may be higher than the unit.

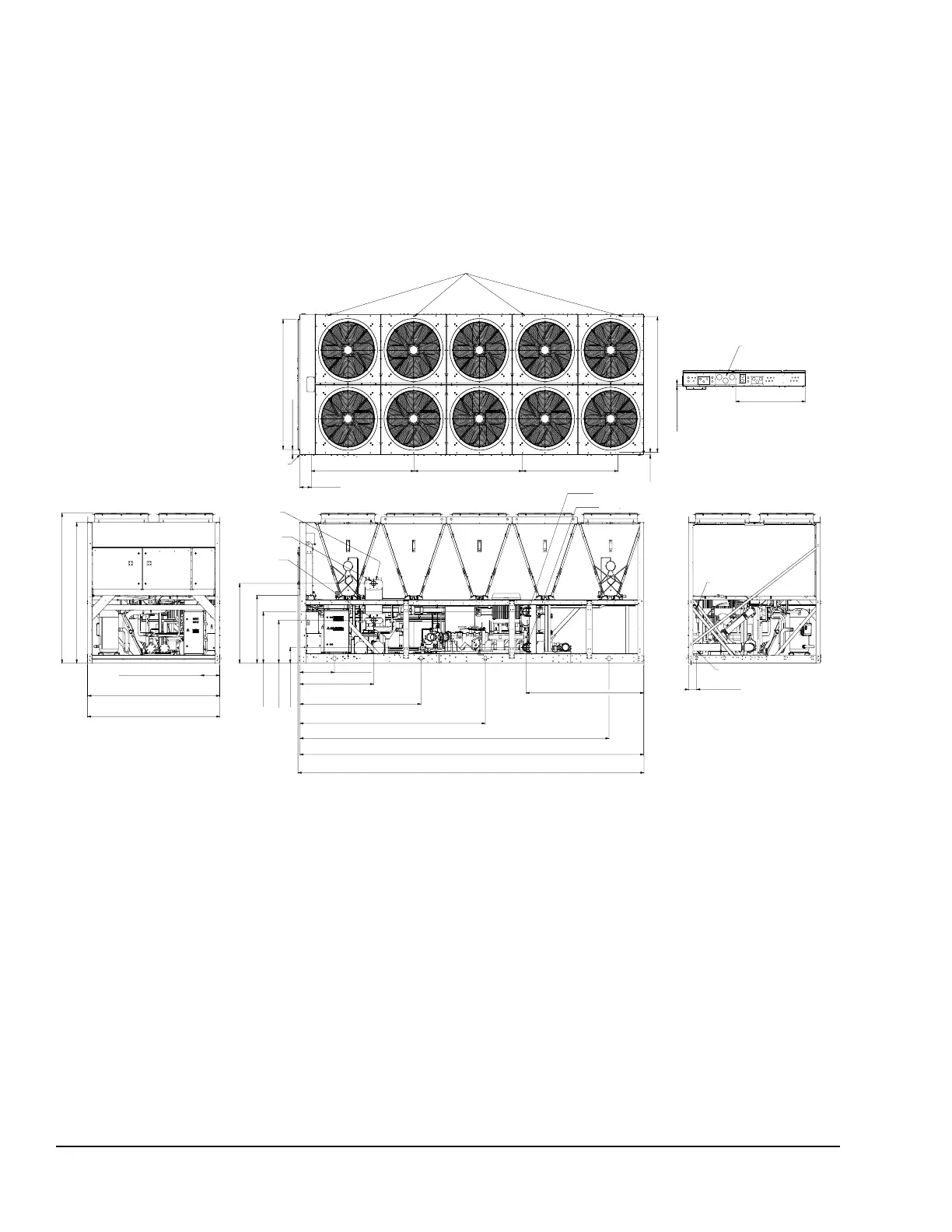

Figure 34: Ten Fan Units Dimensions – 3160TSE, 3150THE, 3170THE
